- 3,000-Watt RMS
- Dual 1 or 2 ohm voice coils
- Optional carbon cone/dustcap available
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
- Extended shorting ring
- Eight-layer voice coil
- Custom tooled basket
- Cast aluminum cooling ring
- Ultra-linear spider pack
- Unique air exchanging system forces hot air out and cool air in
- Aluminum vent ring
- Ultra-linear Mega Roll V2 surround
Features:

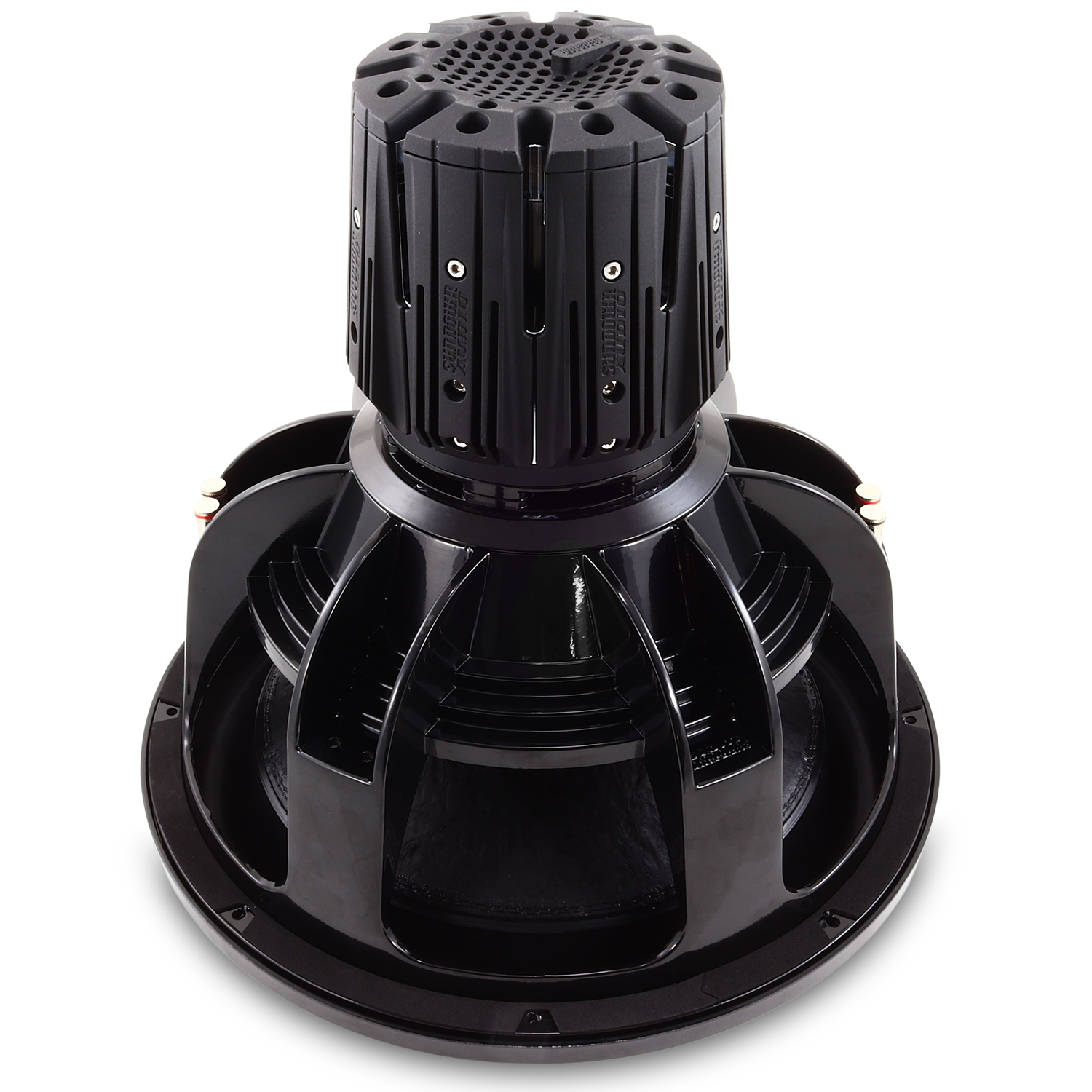

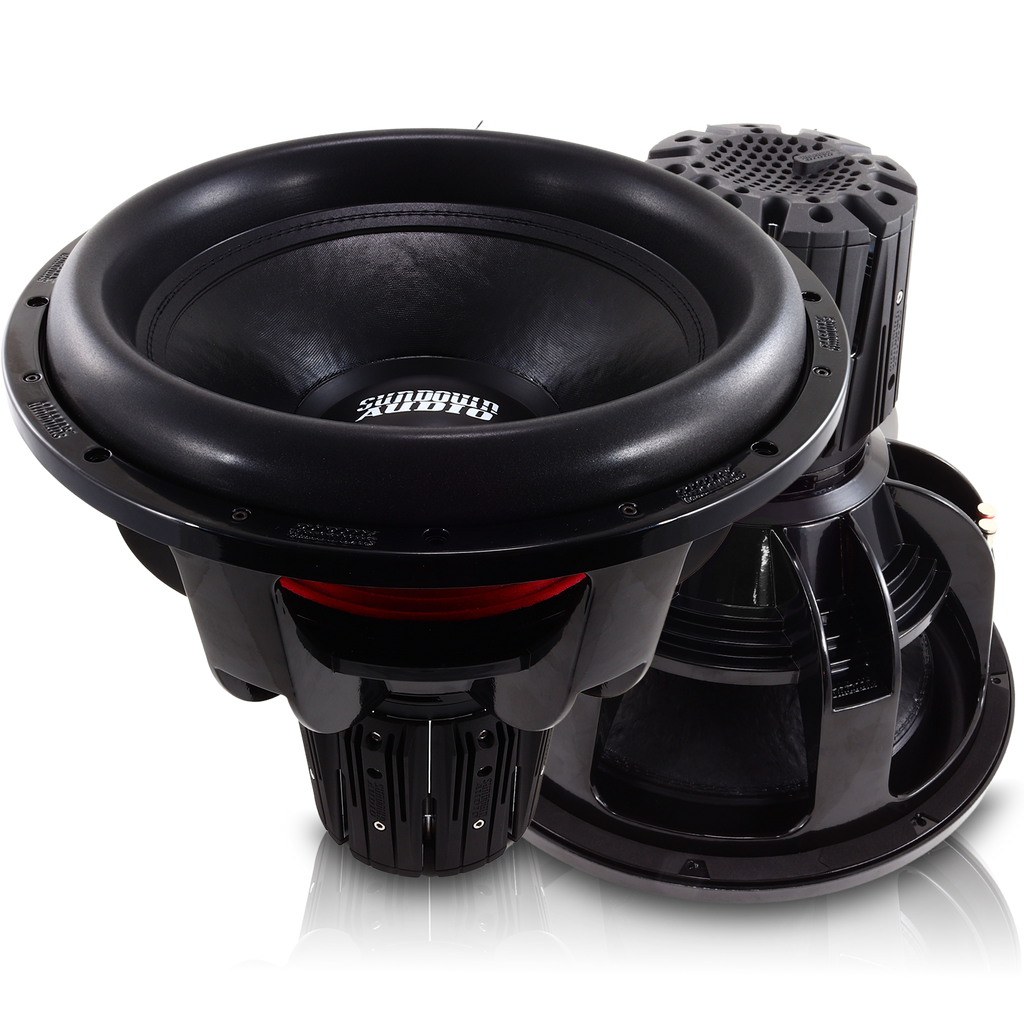

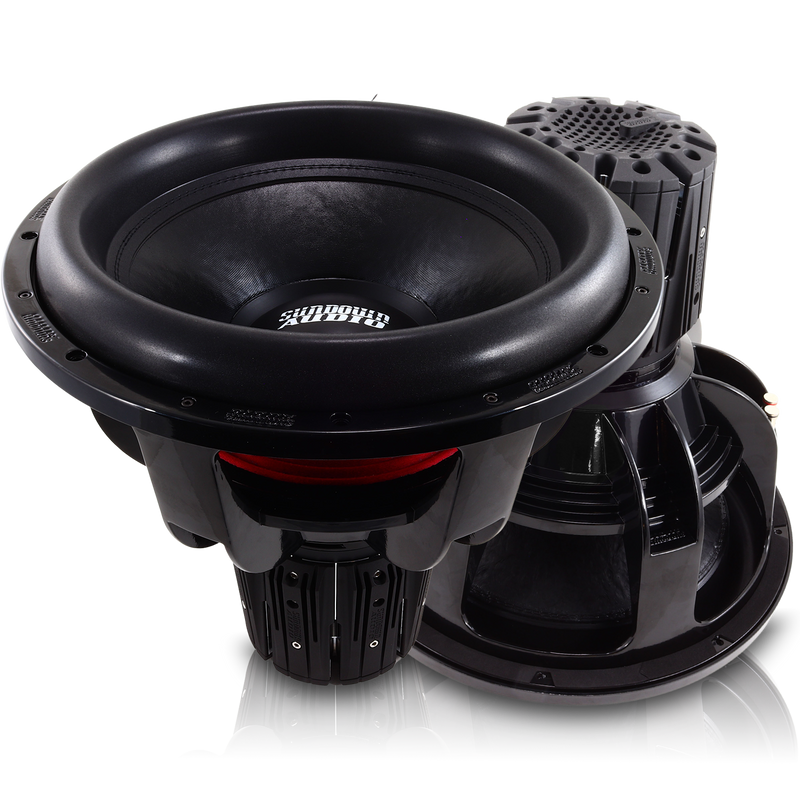

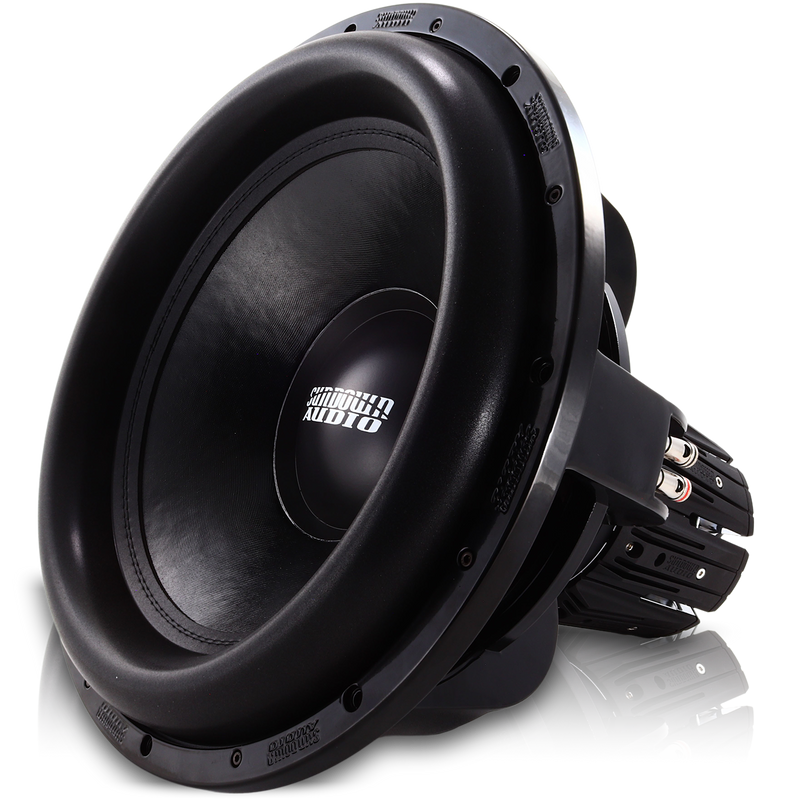

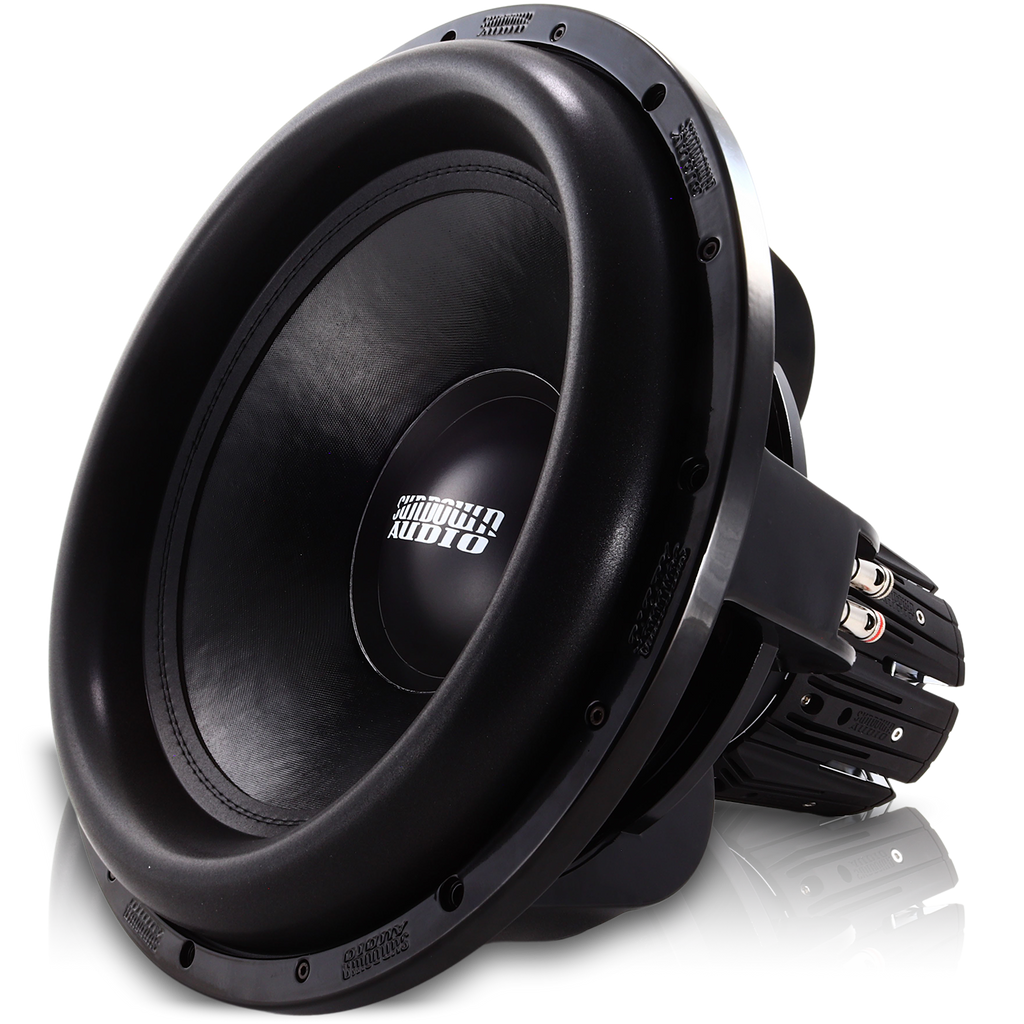

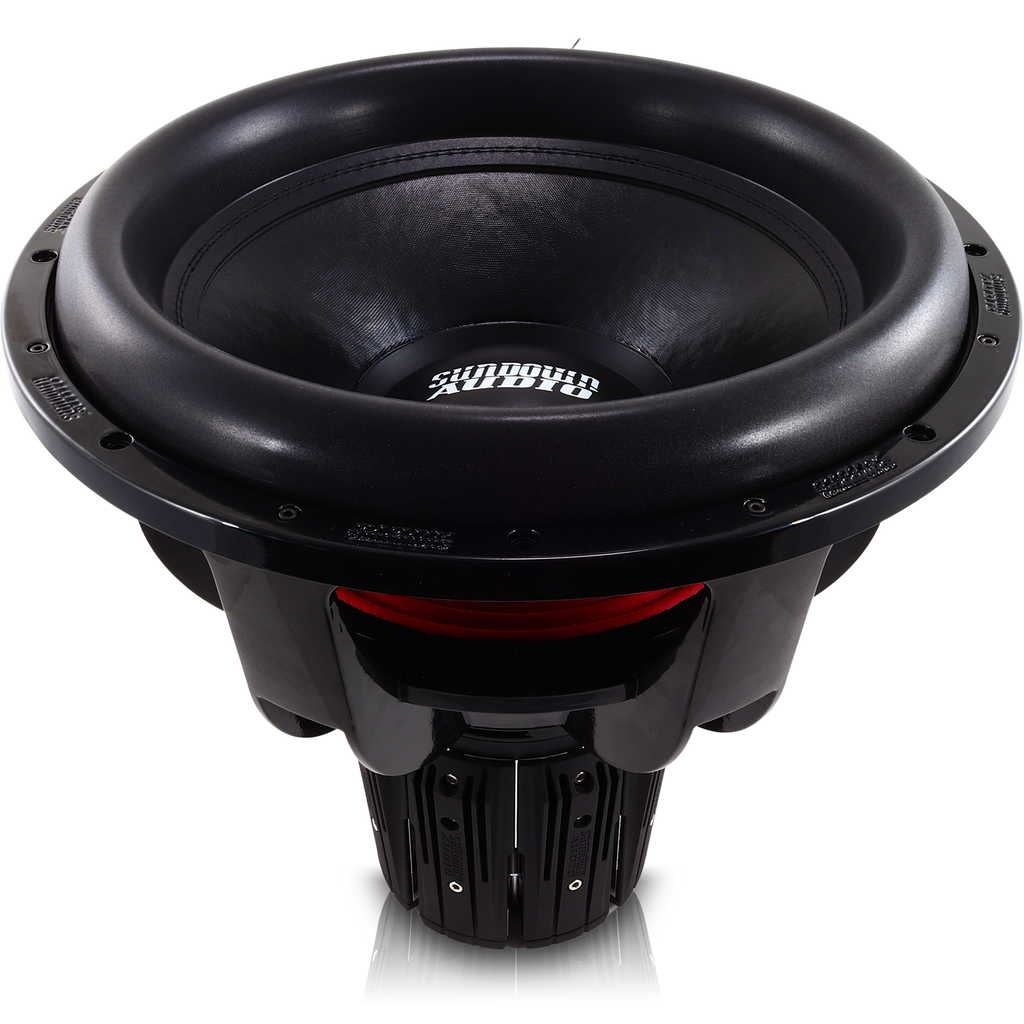

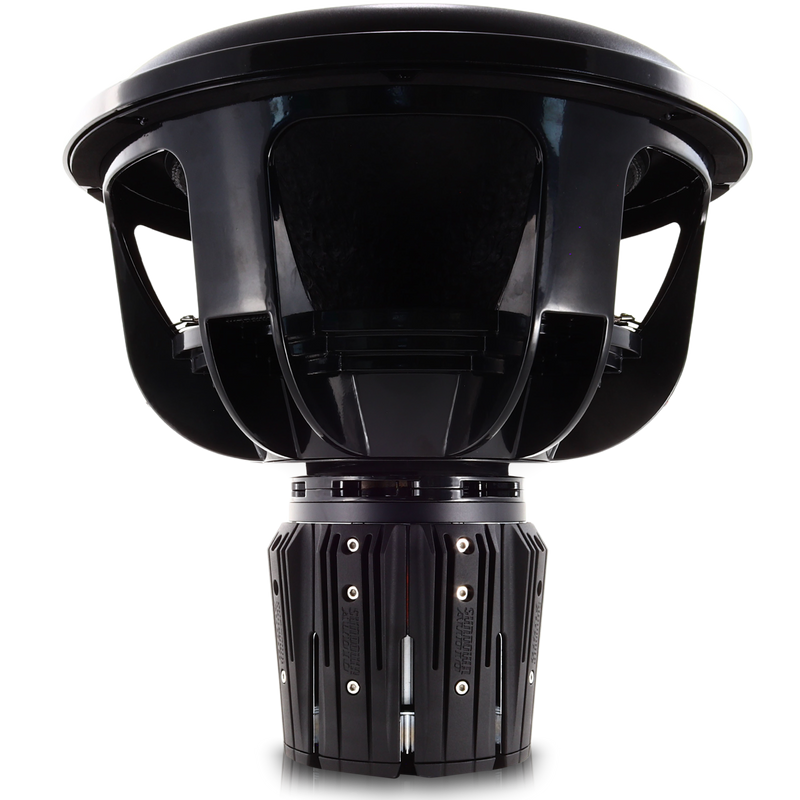

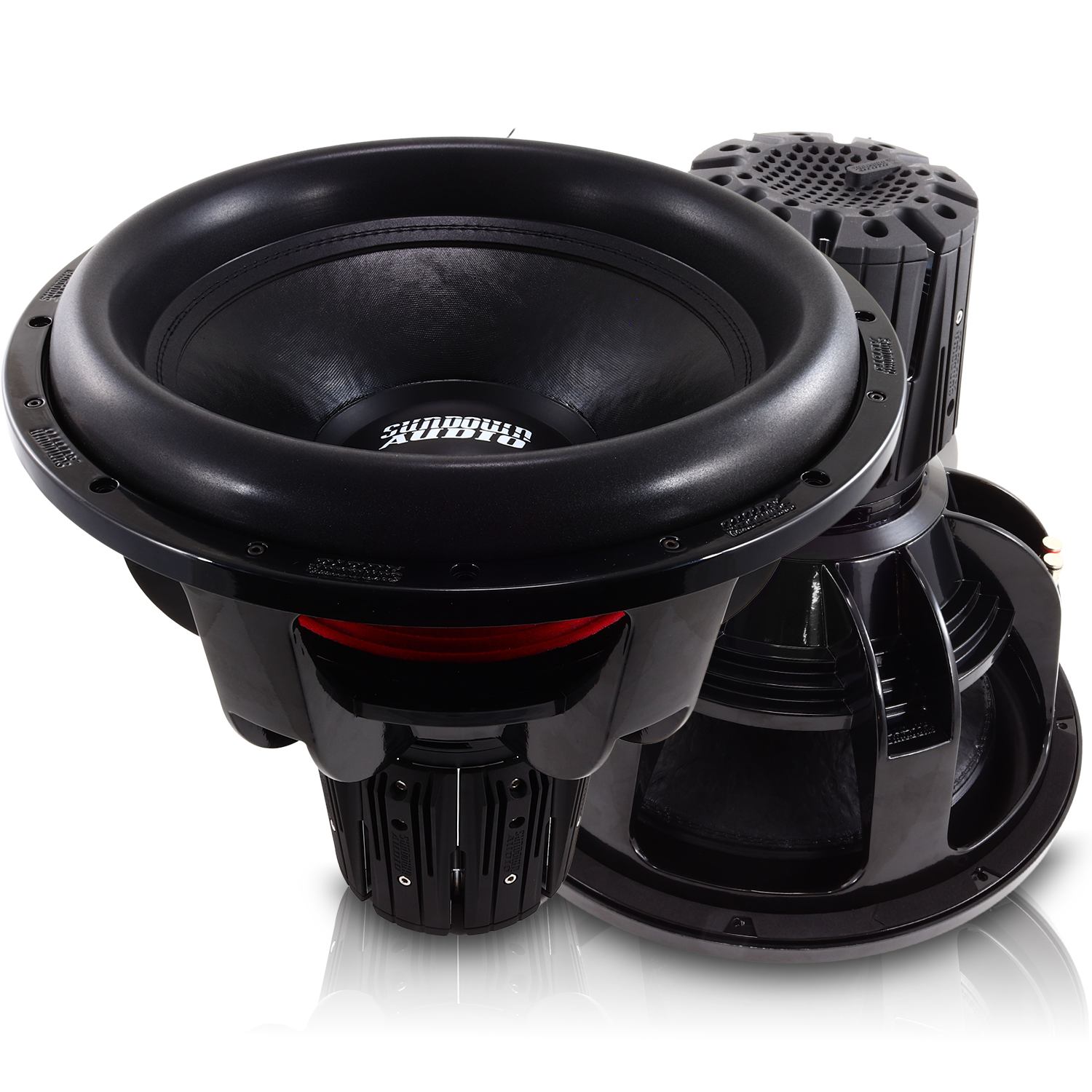

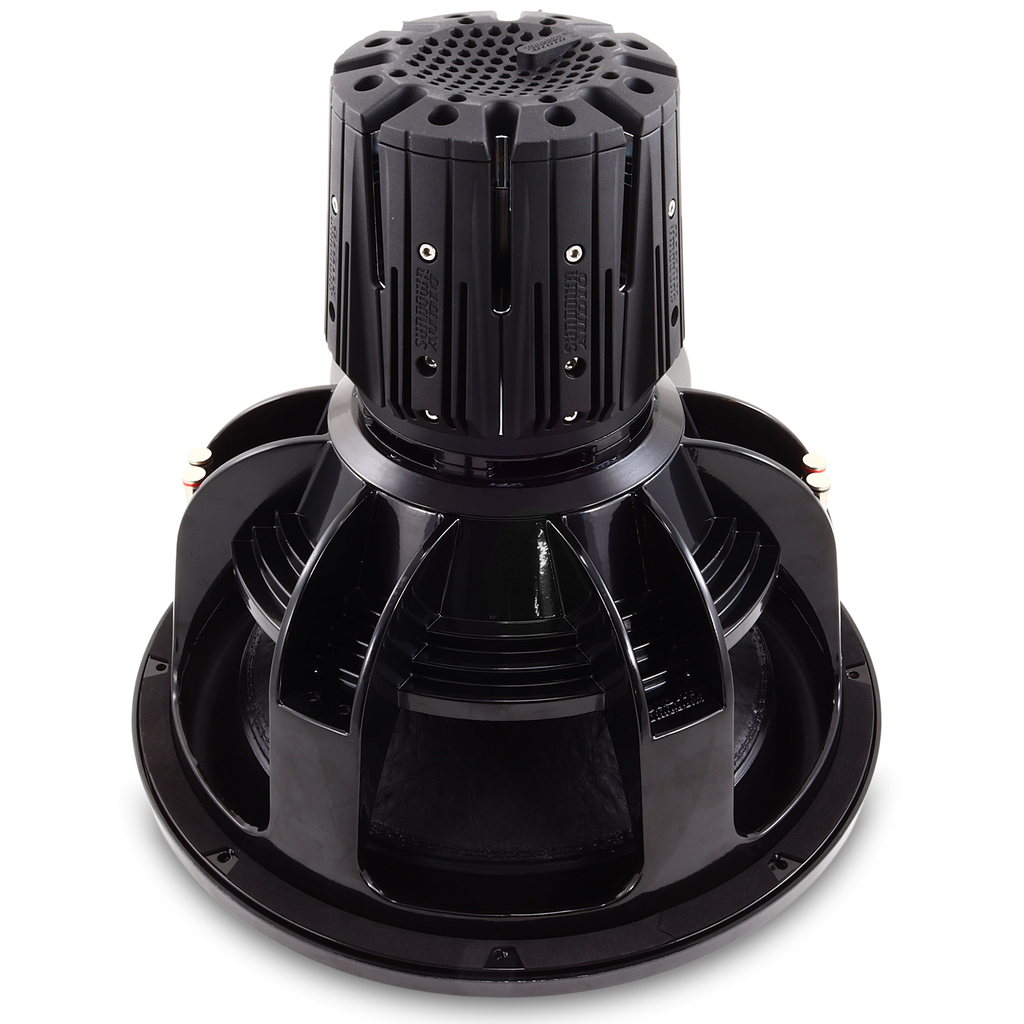

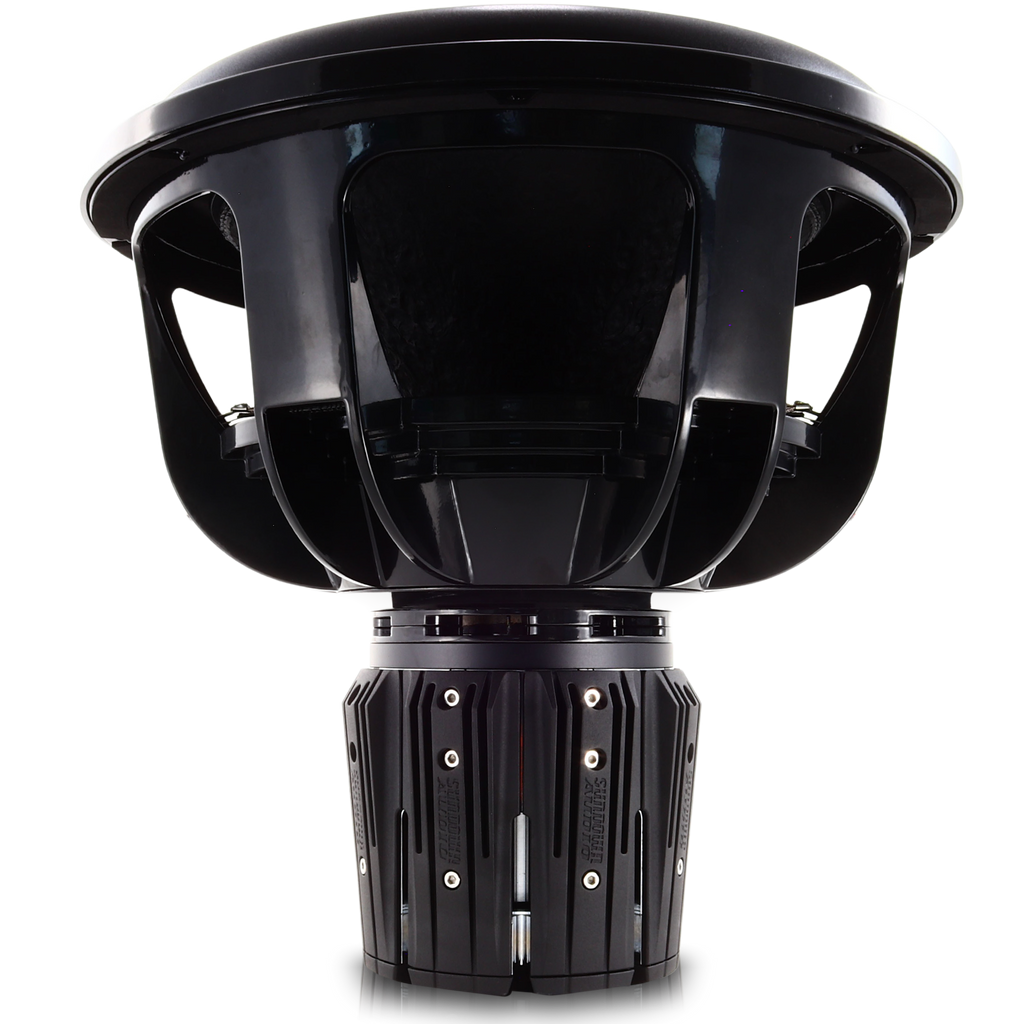

The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Specifications:
NS V.6 18
RE (Ohms) 1.8090 3.6629 FS (Hz) 28.6283 28.3677 VAS (L) 78.9335
82.9318 Qes 0.4955 0.4948 Qms 5.2141 5.1127 Qts 0.4525 0.4511 Le (mH) 1.7089 3.3898 BL (NA) 21.7903 30.4106 Mms (Grams) 722.9906
700.8333 Cms (uM/N) 42.7481 44.9135 Sens (dB @ 1w/1m) 87.4738 87.5755 Xmax 35mm 35mm T/S SPECS NS V.6 18″ D1 NS V.6 18″ D2 ENCLOSURE SPECIFICATIONS
Sealed Enclosure Not Recommended Ported Enclosure 7 cu.ft. net Recommended Tuning 32Hz Recommended Port Area 100 sq.in. Displacement .27 cu. ft. Depth 16.30" Outside Diameter 18.62" Cut-Out 16.69" Physical Dimensions Download
