Aanbieding
- 3,000-Watt RMS
- Dual 1 or 2 ohm voice coils
- Optional carbon cone/dustcap available
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
- Extended shorting ring
- Eight-layer voice coil
- Custom tooled basket
- Cast aluminum cooling ring
- Ultra-linear spider pack
- Unique air exchanging system forces hot air out and cool air in
- Aluminum vent ring
- Ultra-linear Mega Roll V2 surround
Features:

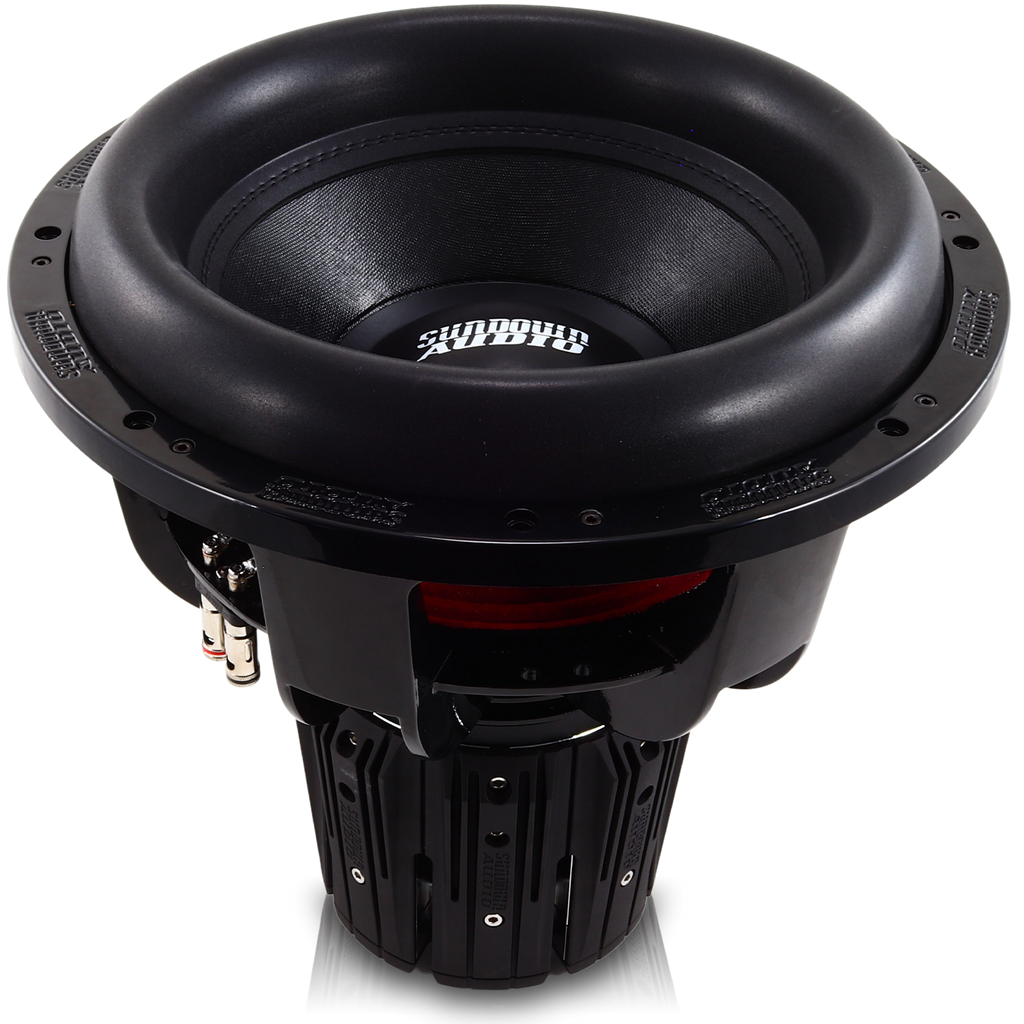

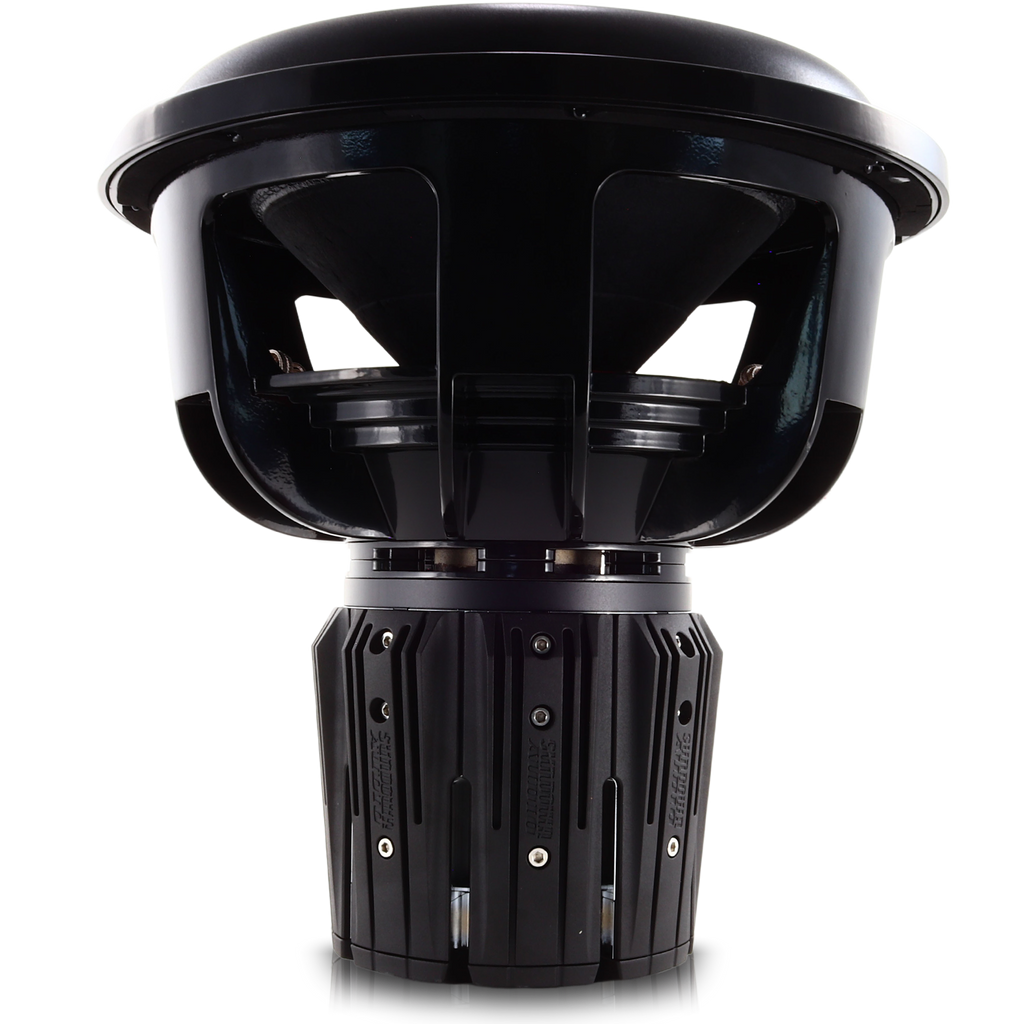

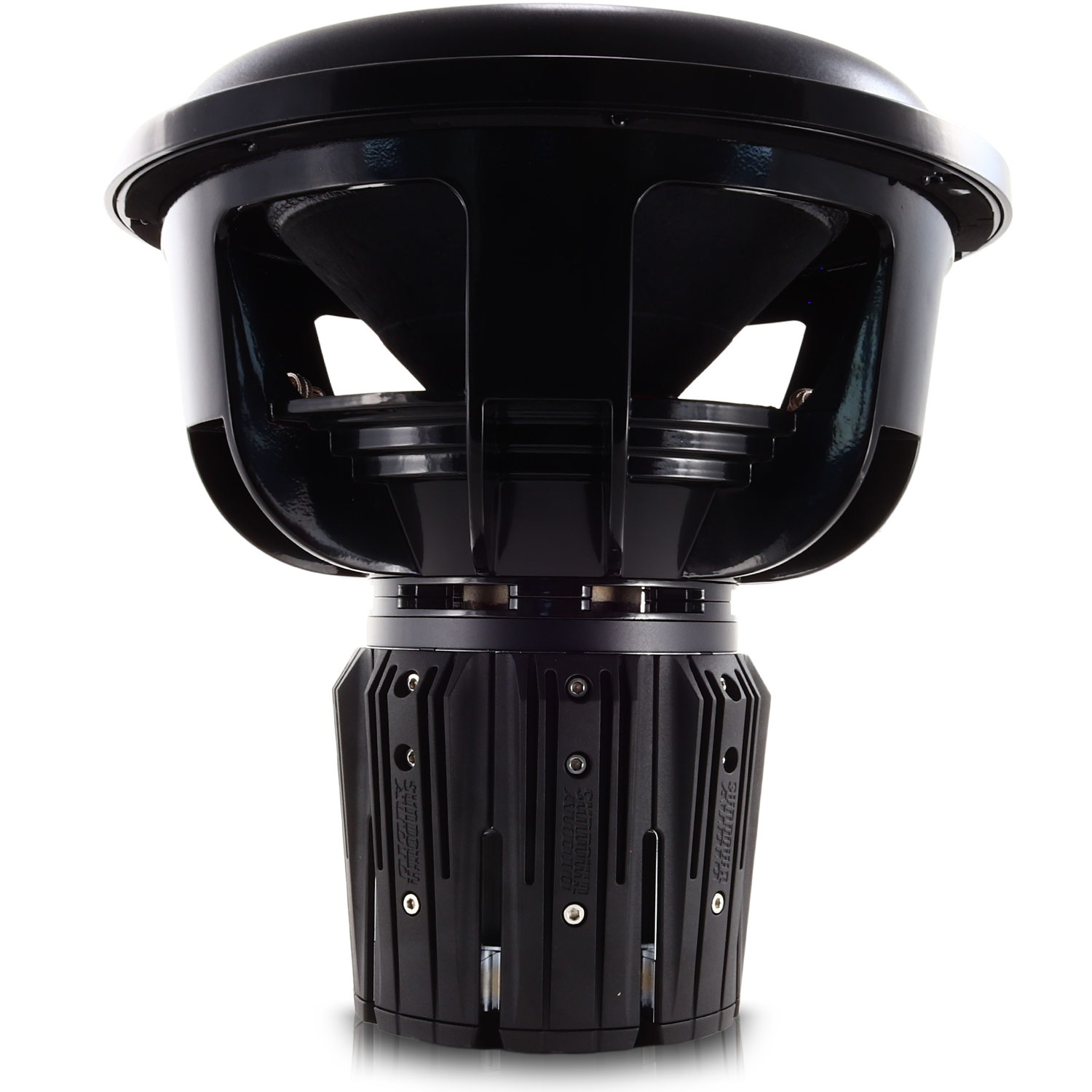

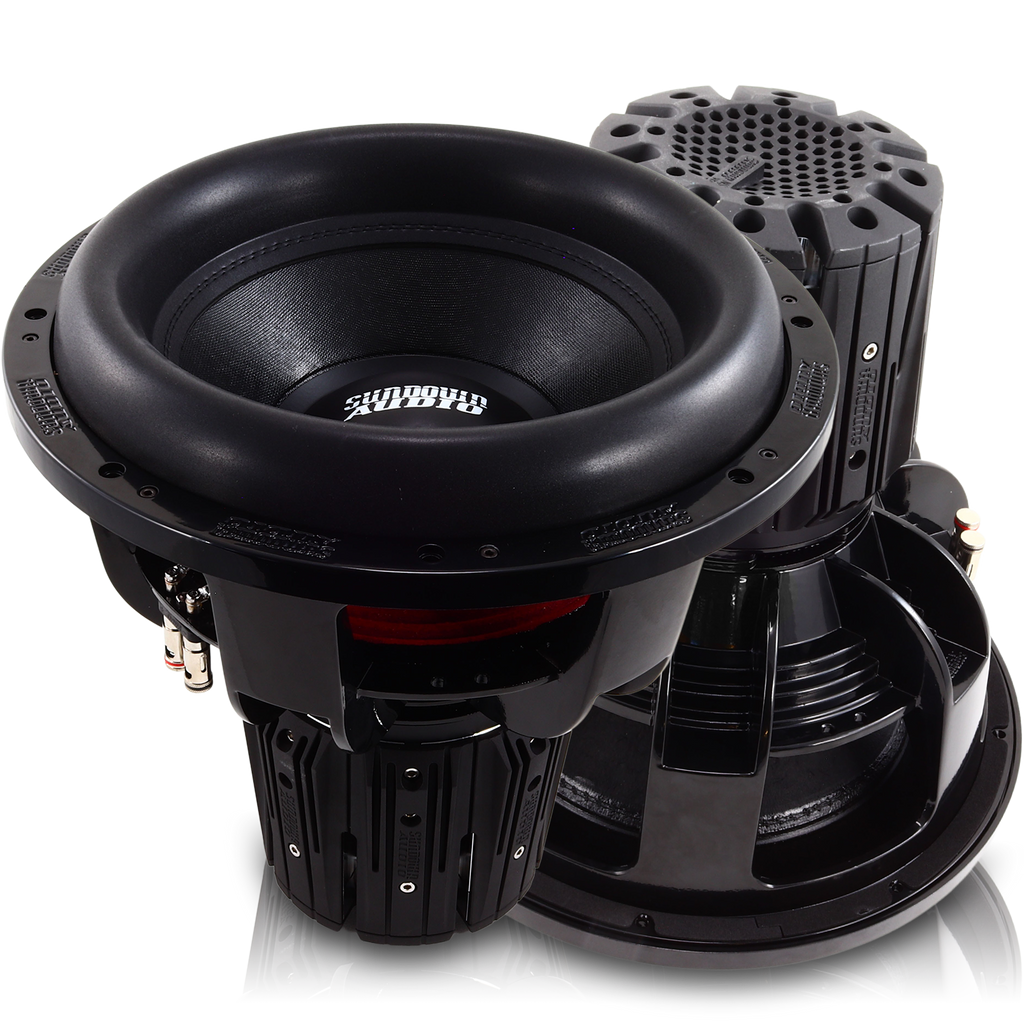

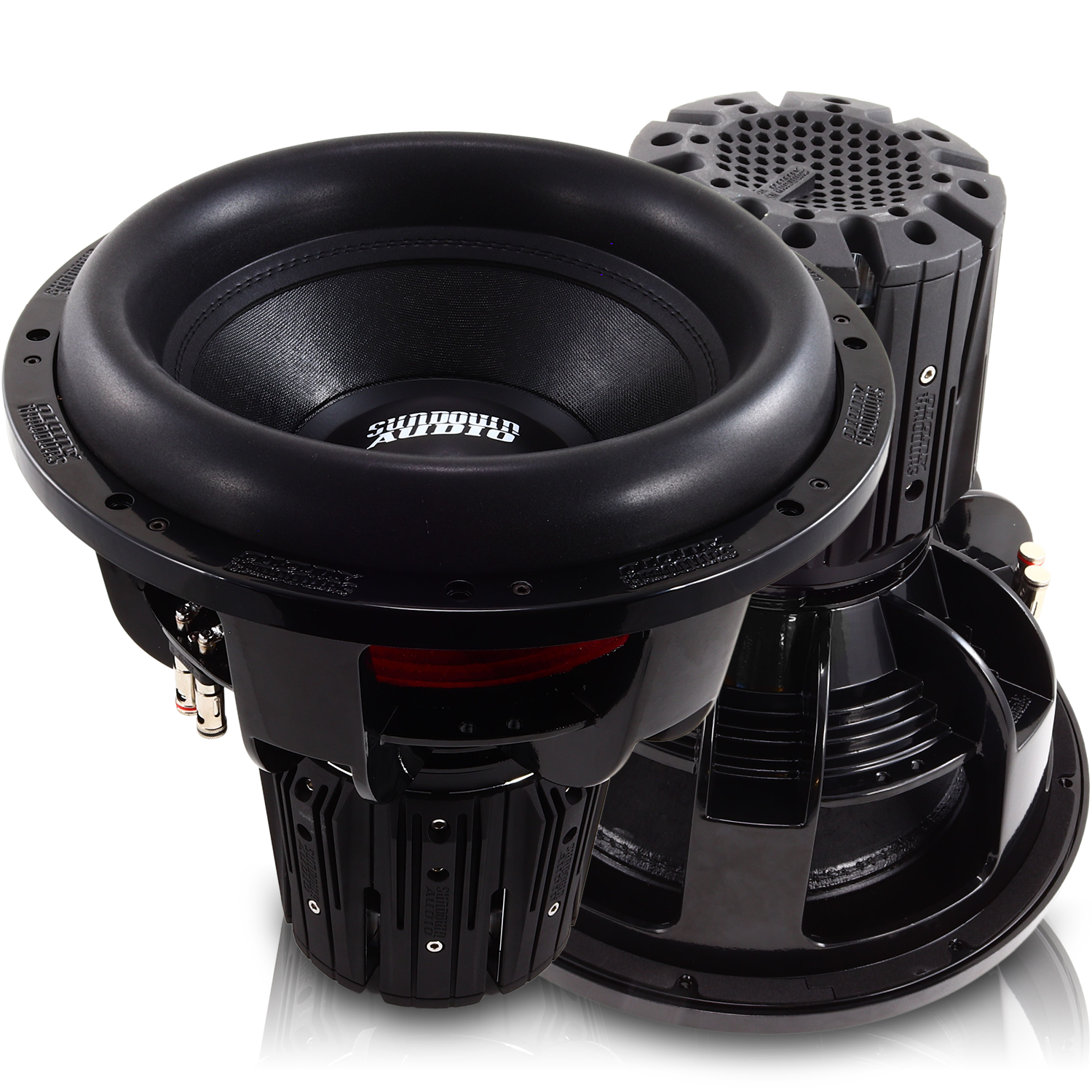

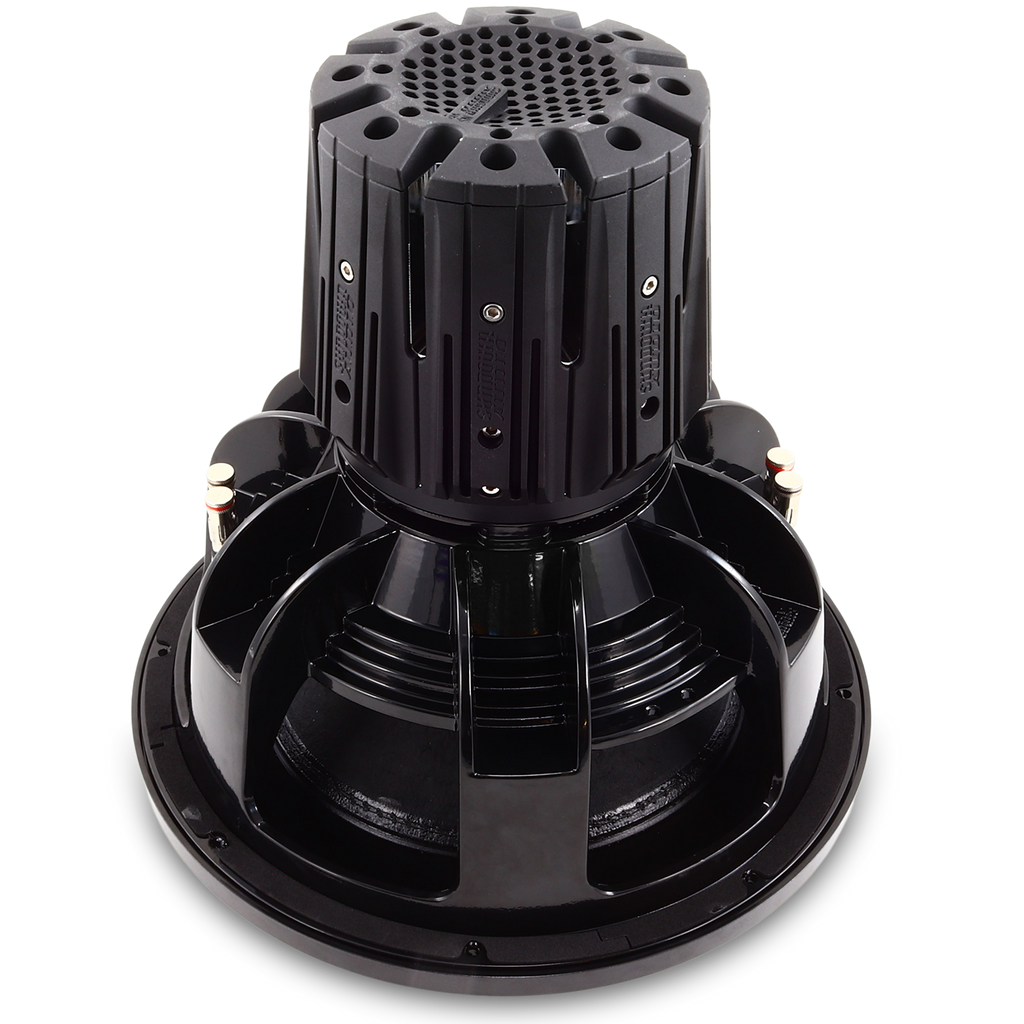

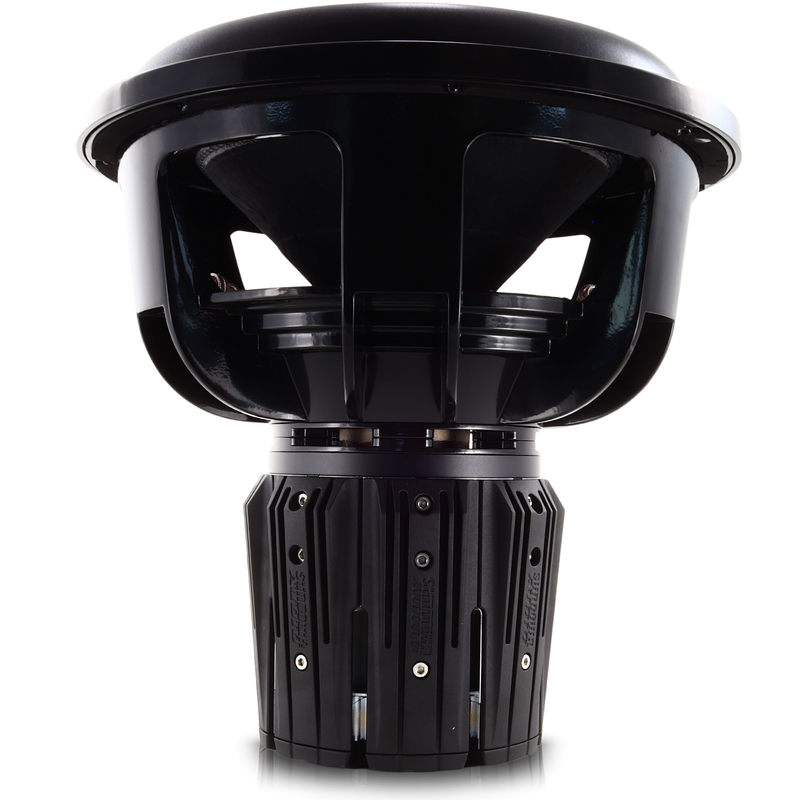

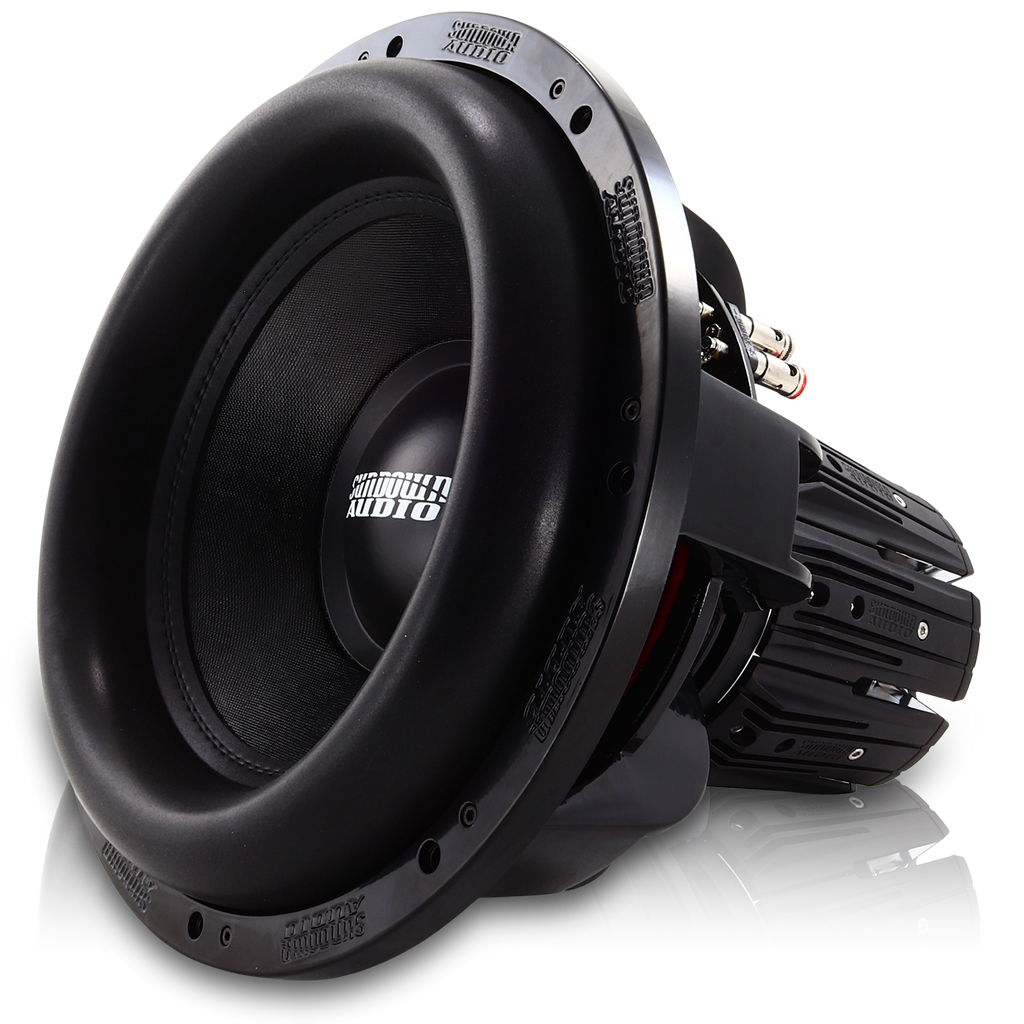

The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Specifications:
NS V.6 15
| RE (Ohms) | 1.8398 | 3.5978 |
| FS (Hz) | 30.5930 | 30.8881 |
| VAS (L) | 37.0627 | 36.0601 |
| Qes | 0.4382 | 0.4133 |
| Qms | 5.3509 | 5.4272 |
| Qts | 0.4050 | 0.3841 |
| Le (mH) | 1.6641 | 3.4904 |
| BL (NA) | 21.1132 | 30.6711 |
| Mms (Grams) | 552.2849 | 556.8450 |
| Cms (uM/N) | 49.0041 | 47.6786 |
| Sens (dB @ 1w/1m) | 85.5892 | 85.8487 |
| Xmax | 35mm | 35mm |
| T/S SPECS | NS V.6 15″ D1 | NS V.6 15″ D2 |
|---|
ENCLOSURE SPECIFICATIONS
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 4 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 60 sq.in. |
| Displacement | .26 cu. ft. |
| Depth | 13.91" |
| Outside Diameter | 15.67" |
| Cut-Out | 13.93" |
| Physical Dimensions | Download |
