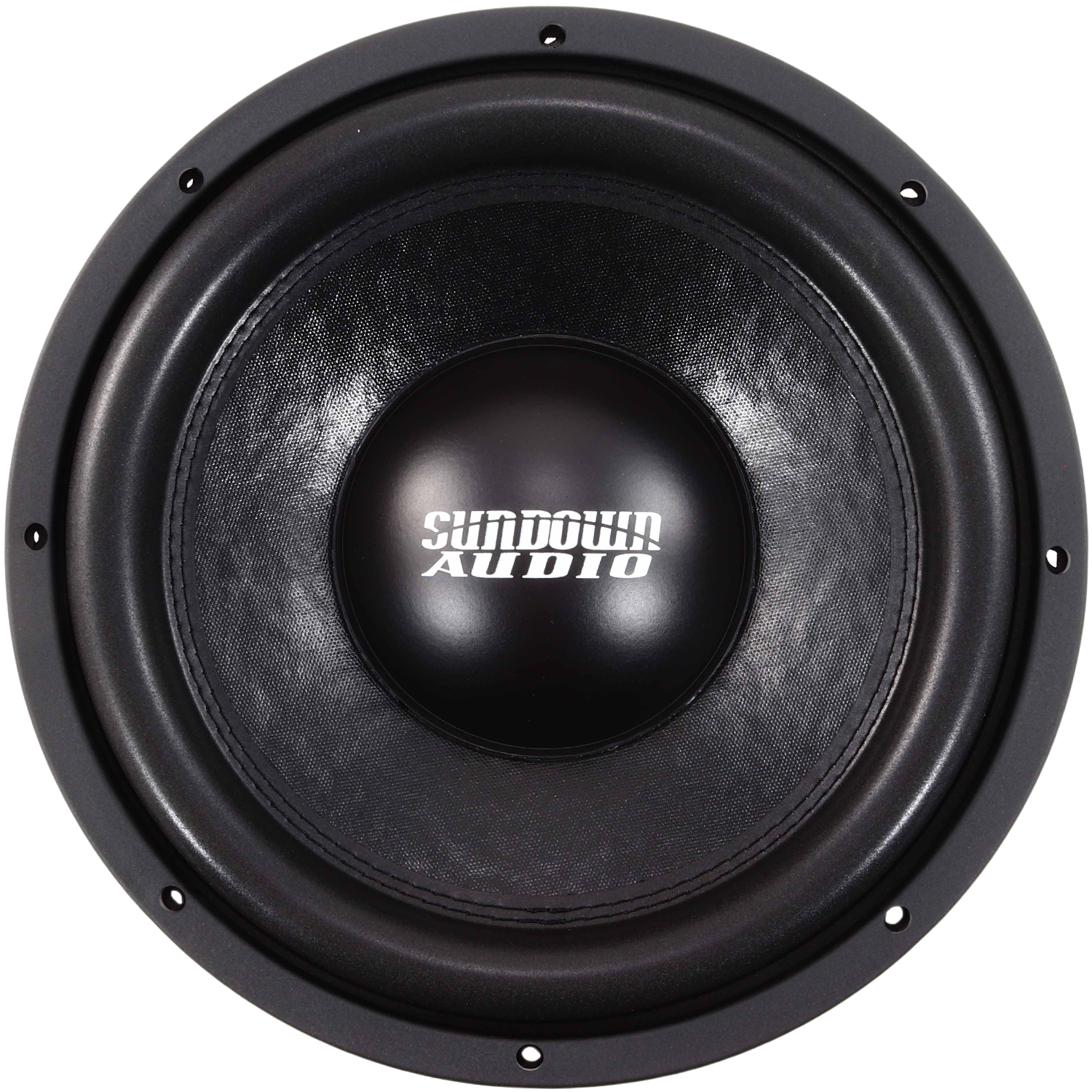

The fourth version of our acclaimed E series has been refreshed for 2020. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward.
Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – all of these bars have been raised once again for our fourth generation E series.
The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.
A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak before physical coil bottom).
The E v.4 series has been upgraded to a full 2.5” diameter coil (this started with the v.3) compared to the 2” coil of previous generations (v.1 and v.2). The tinsel leads have been upgraded to a new “Mini-XL” lead containing 63-strands of conductor (a full XL is 84-strands and previous leads contained 42-strands) to help prevent potential failure due to amplifier clipping.
The spider itself is a high-strength poly-cotton blend designed to handle the full capacity of the motor.
To provide an additional level of ruggedness the spider is bolted down and glued to the frame.
Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date.
They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.
- Xmax = 14mm one-way by 70% BL
- RMS Power = 500-watts (300-watts 8”)
- Vented magnetic gap
- Vented pole piece with optimized geometry (solid pole for 8”)
- Black Aluminum 2.5” voice coil former for superior heat dissipation (2” coil for 8”)
- High Temperature 4-Layer copper voice coil wire
- Spring Loaded Terminals
- Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
- Bolted-on Spider Pack
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
- High strength stamped steel frame
- Optimized for ported enclosures
|
T/S Specs |
E v.4 12" D2 |
E v.4 12" D4 |
|
RE (Ohms) |
4.030 |
6.130 |
|
FS (Hz) |
28.480 |
28.373 |
|
VAS (L) |
53.059 |
54.292 |
|
Qes |
0.509 |
0.570 |
|
Qms |
5.249 |
3.542 |
|
Qts |
0.464 |
0.491 |
|
BL (NA) |
17.576 |
20.249 |
|
Mms (Grams) |
217.987 |
213.033 |
|
Cms (mm/N) |
143.258 |
146.589 |
|
Sens (dB @ 1w/1m) |
85.7 |
85.3 |
Ported Enclosure
-
Size: 1 cuft net
-
Port Area: 15 sqin
-
Port Tuning: 35hz
Sealed Enclosure
-
Not Recommended
Displacement: 0.12 cuft.
Depth: 6.50"
Outside Diameter: 12.250"
Cutout: 11.125
Physical Dimensions
