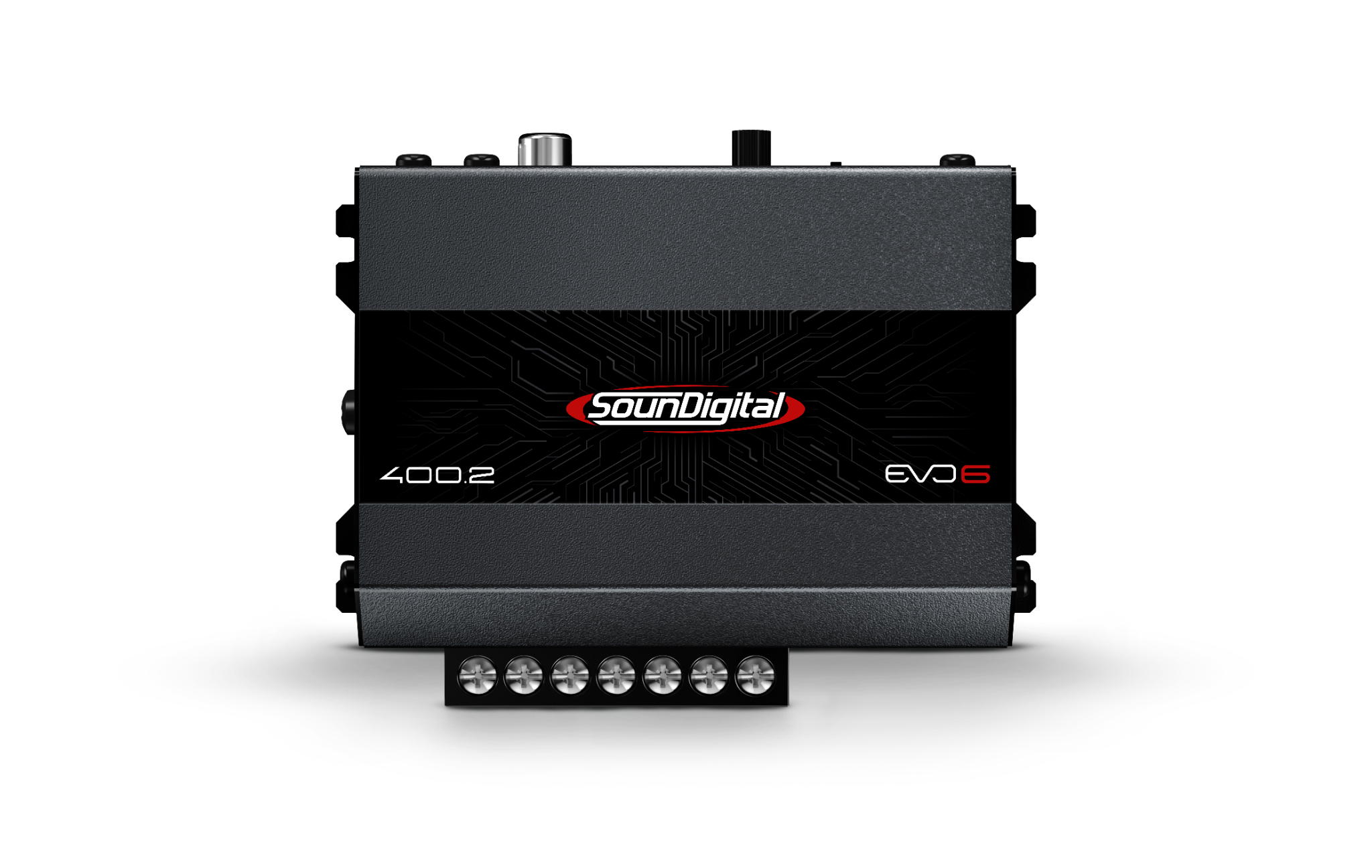

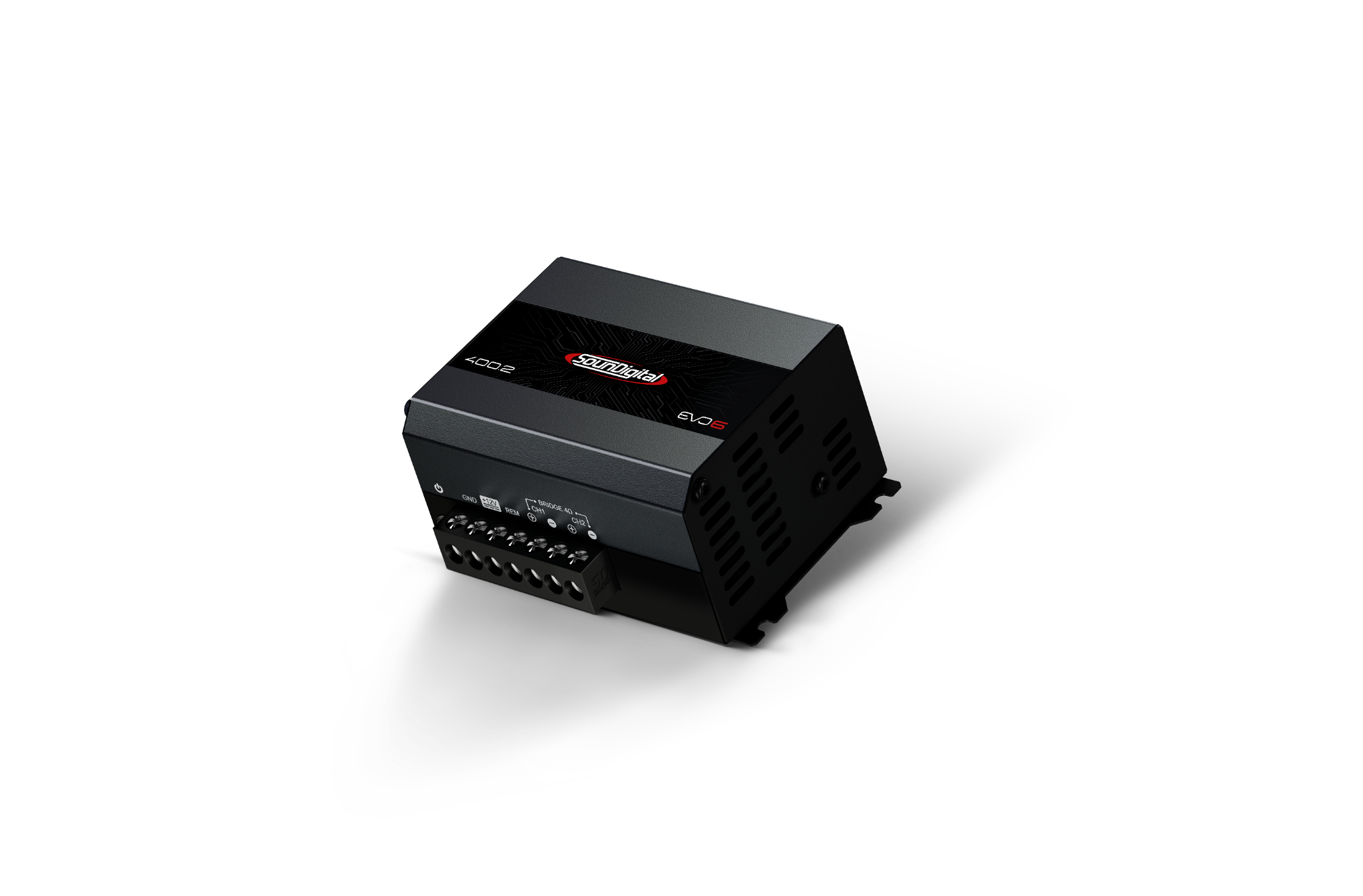

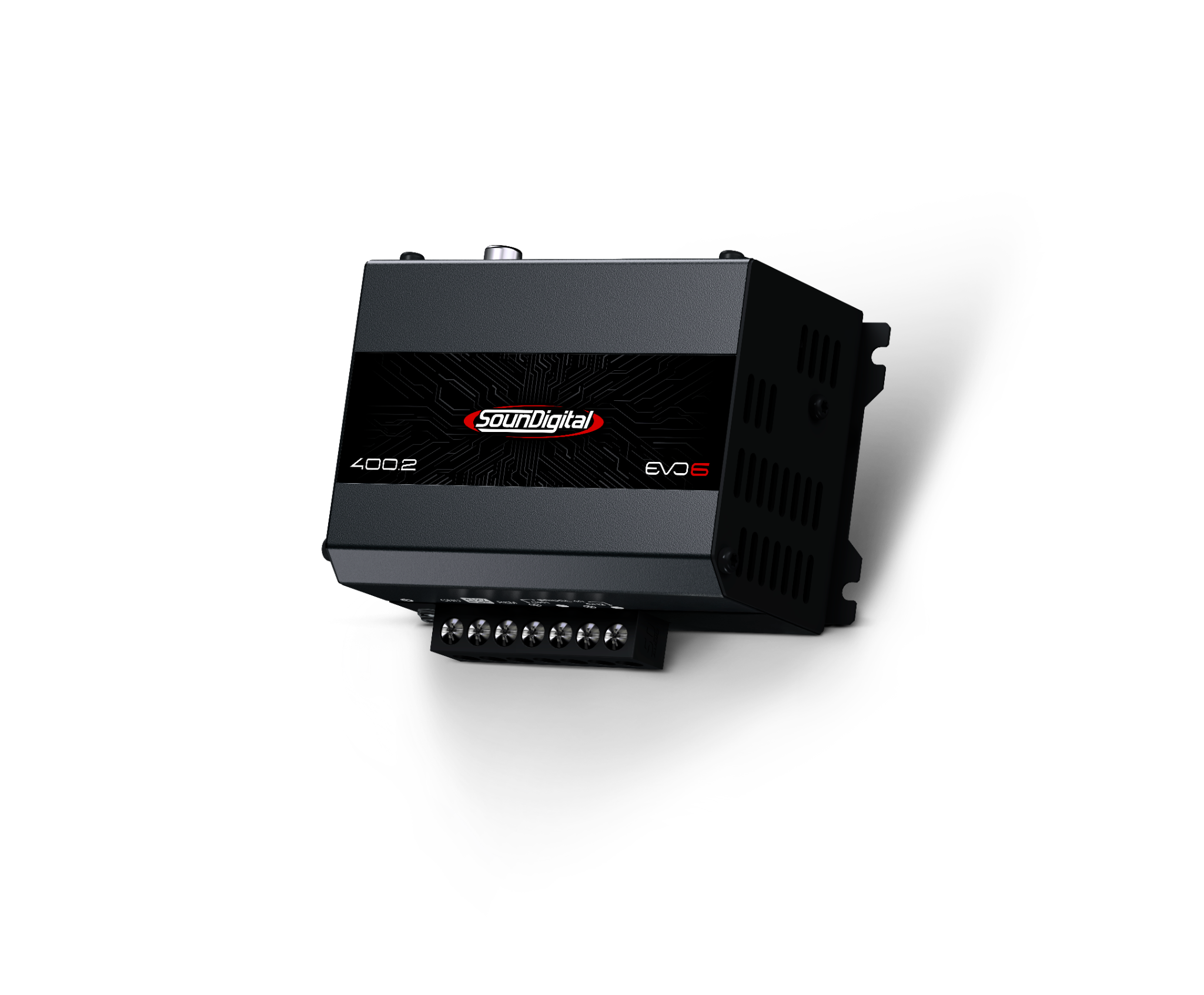

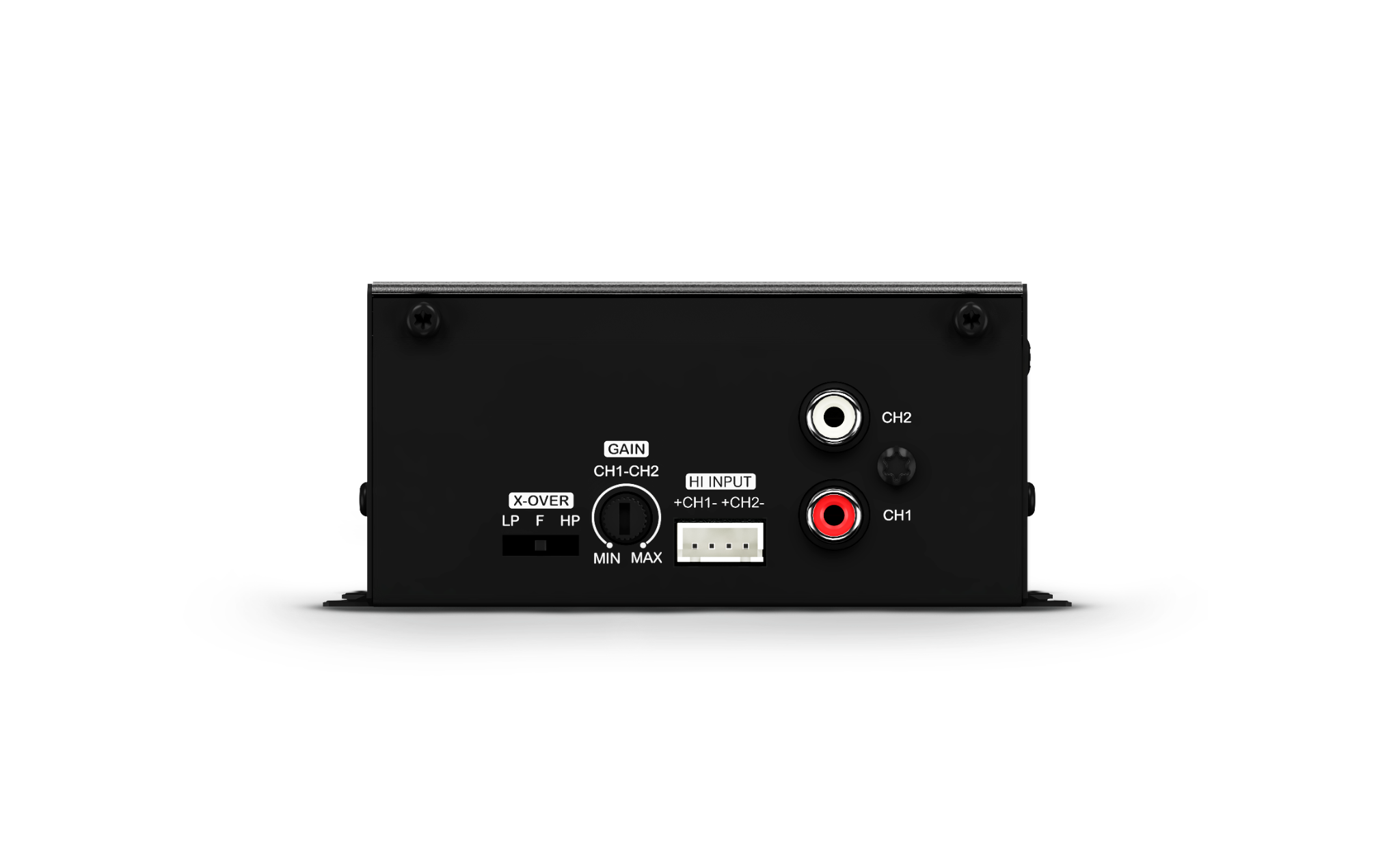

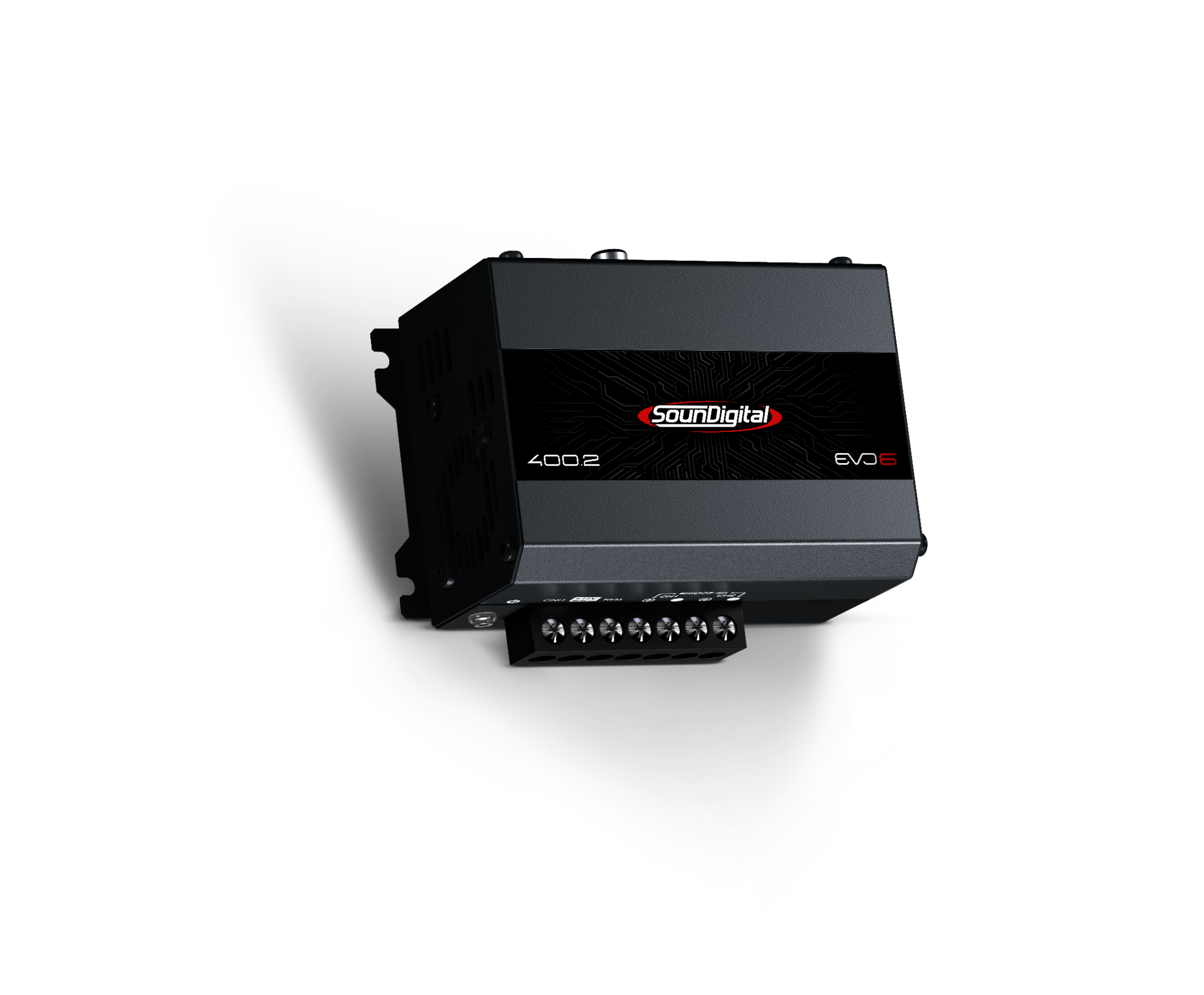

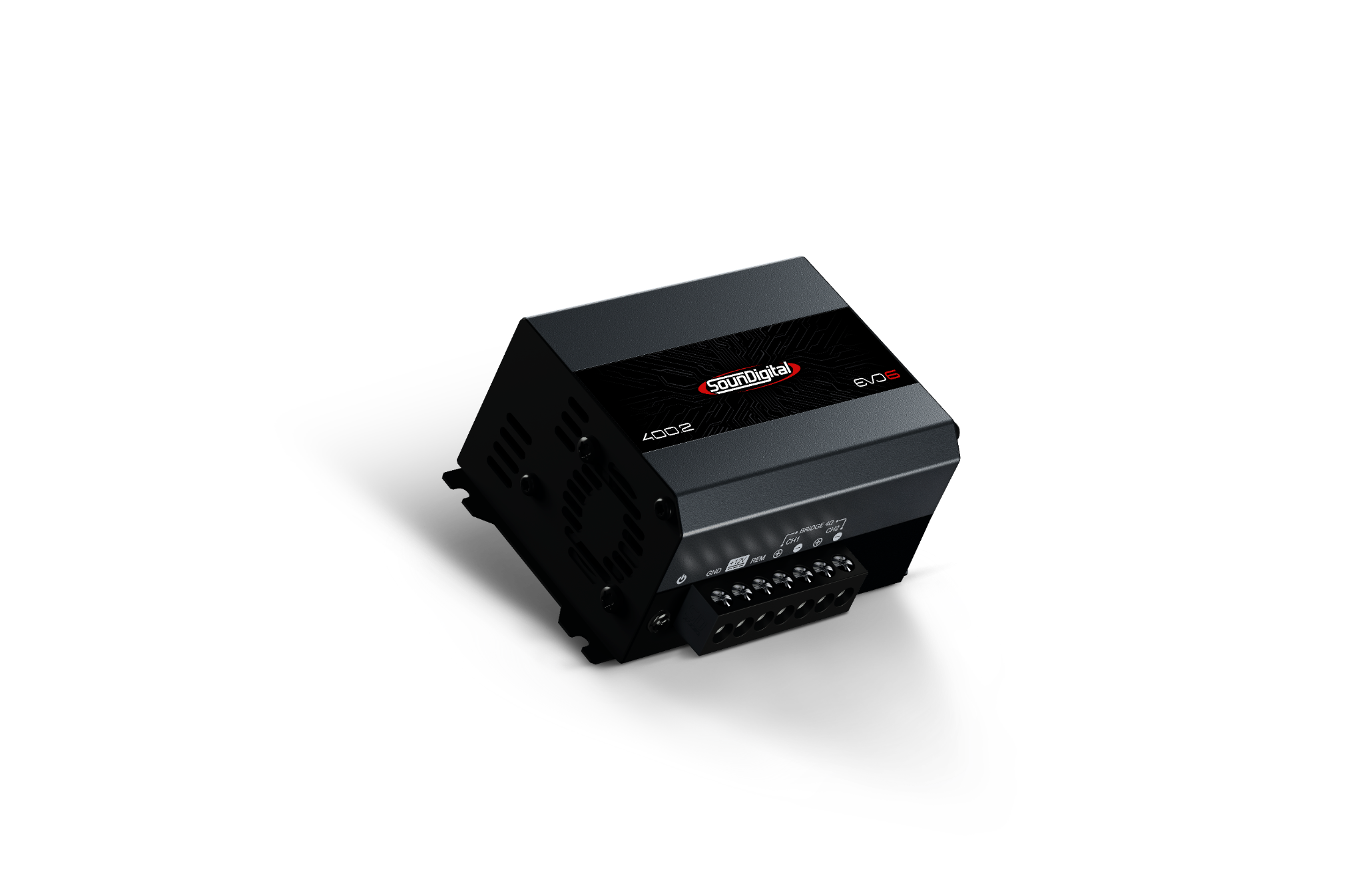

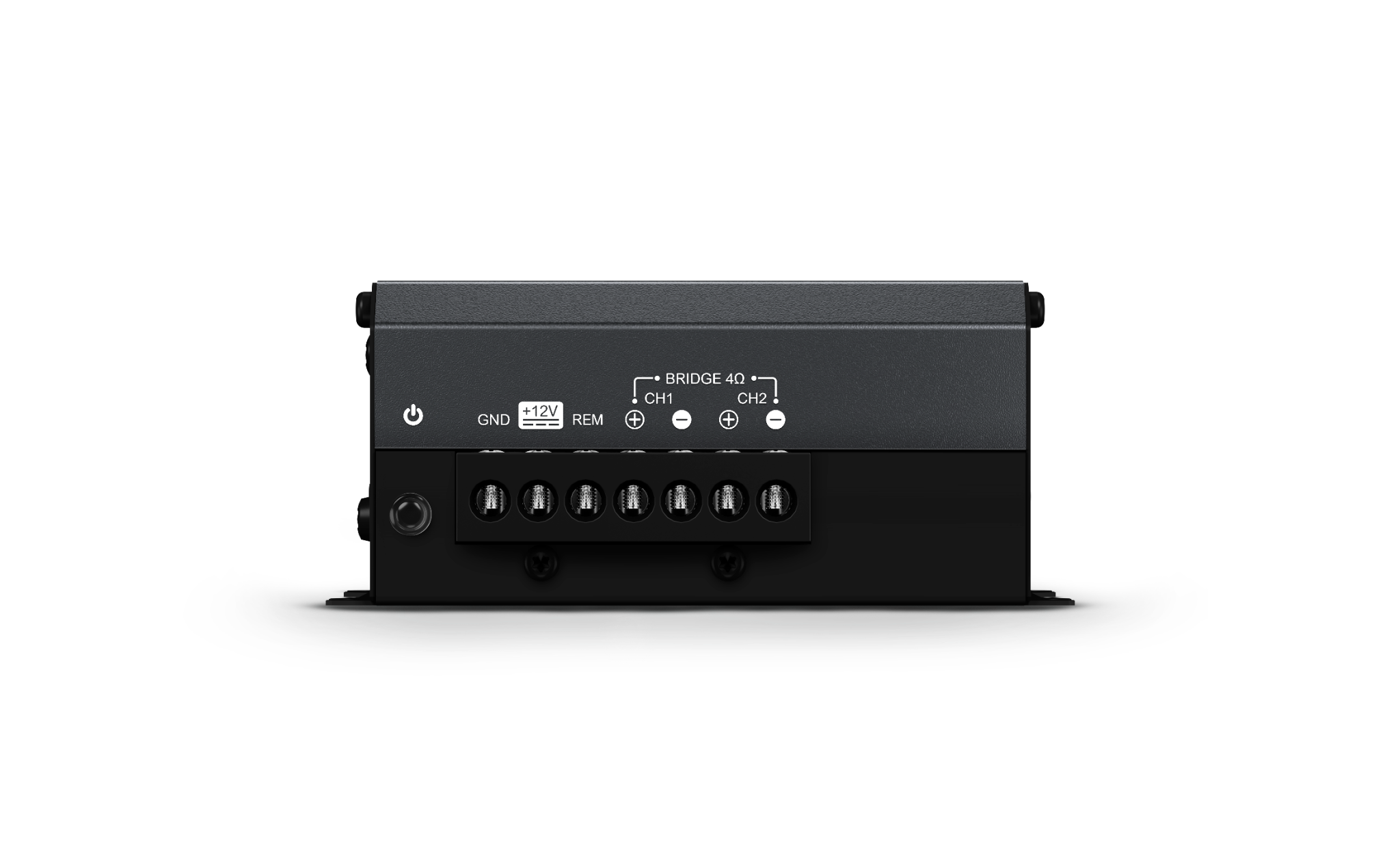

The 400.2 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
-
SD 400.2 EVO6 - 4Ω
Power @ 4Ω: 2 x 132W
Power @ 2Ω: 2 x 200W
Bridge Power @ 4Ω: 1 x 400W
Bridge Power @ 2Ω: N/A -
Frequency Response (-3dB) 5Hz ~ 30kHz
-
Low Pass filter (12dB/octave) 80Hz
-
High Pass filter (12dB/octave) 80Hz
-
Operating Voltage 9V ~ 16V
-
SNR >100dB
-
Input Sensitivity (RCA) 0.2V ~ 2V
-
Input Sensitivity (High Level input) 2.5 ~ 25V
-
Current Draw (music) 20A
-
Current Draw (max.) 40A
-
Power Cable 6mm² (9 AWG)
-
Speaker Cable 1.5mm² (15 AWG)
-
Remote cable 1.5mm² (15 AWG)
-
Recommended Fuse* (music) 25A
-
Recommended Battery (minimum) 40Ah
-
Width: 4.2"
-
Length: 3.4"
-
Height: 1.8"
-
Weight: 0.906 lb
