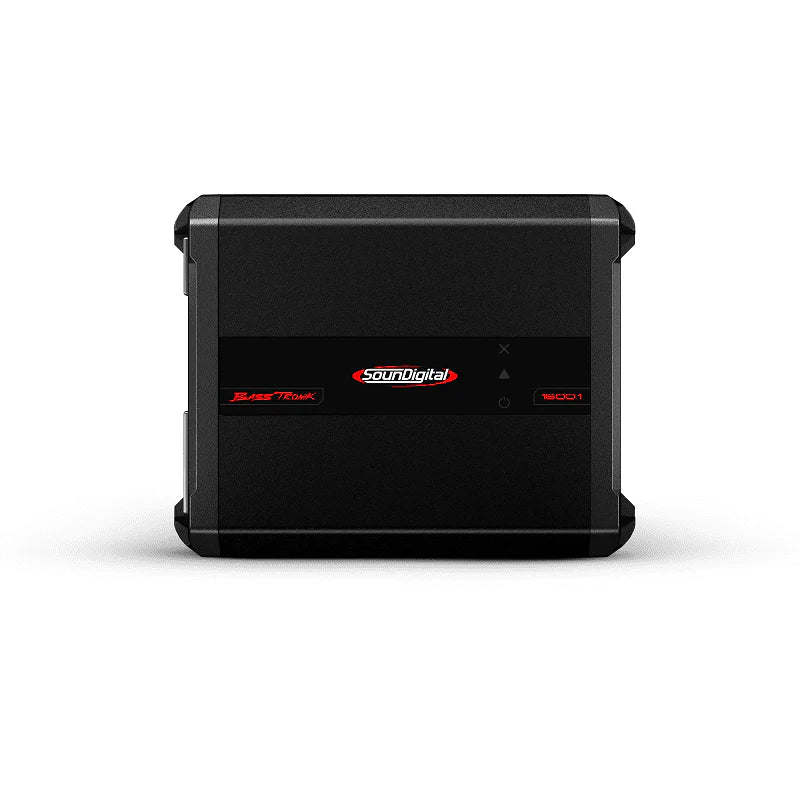

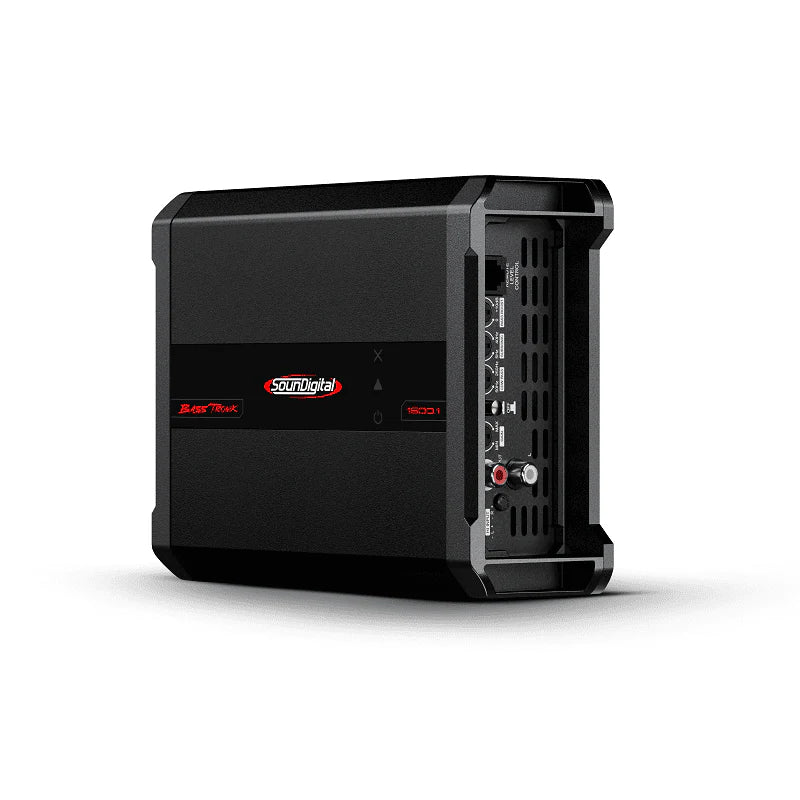

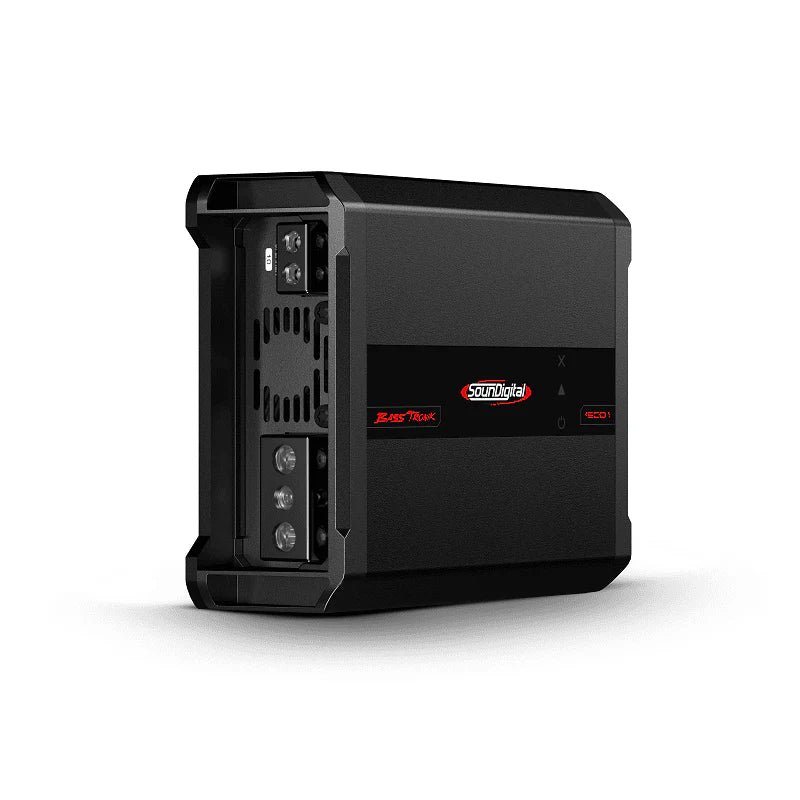

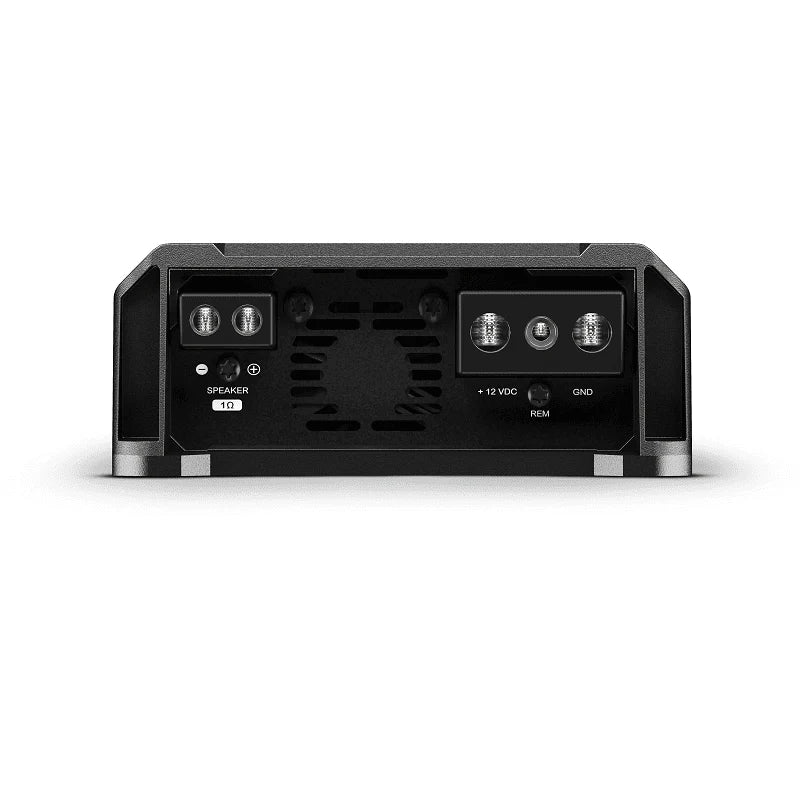

SounDigital - 1600.1 Basstronic

Klik hier voor de SD 1600.1 EVOX2 (hogere kwaliteit mosfets, grotere power supply section, tiffany rca, efficiënter en robuuster in alle aspecten vergleken met de Basstronic componenten)

• SD 1600.1-1 Basstronic 1Ω

  Power @ 12.6V @ 1Ω: 1 x 1600W RMS

  Power @ 12.6V @ 2Ω: 1 x 1000W RMS

  Power @ 12.6V @ 4Ω: 1 x 650W RMS



  SD 1600.1-2 Basstronik 2Ω

  Power @ 12.6V @ 1Ω: N/A

  Power @ 12.6V @ 2Ω: 1 x 1600W RMS

  Power @ 12.6V @ 4Ω: 1 x 1000W RMS





  Frequency Response: 5Hz ~ 20kHz

  Crossovers: LP 50Hz ~ 250Hz / HP 5Hz ~ 40kHz 12dB/8ª

  Damping factor: >2000

  Current consumption max.: 164A

  Current consumption music: 82A

  Efficiency: 77%

  SNR: >100dB

  Dimensions: 180.1 x 136.2 x 55 mm

  Voltage range: 10 - 16 Volt

  Recommended fuse (music): 100A

  Recommended battery: 120Ah
