POWERUS amplifiers bring the latest state of the art consumer technologies to the Brazilian market.
They offer great impedance options.
POWERUS amplifiers have an advanced protection circuit to help protect against installation errors.

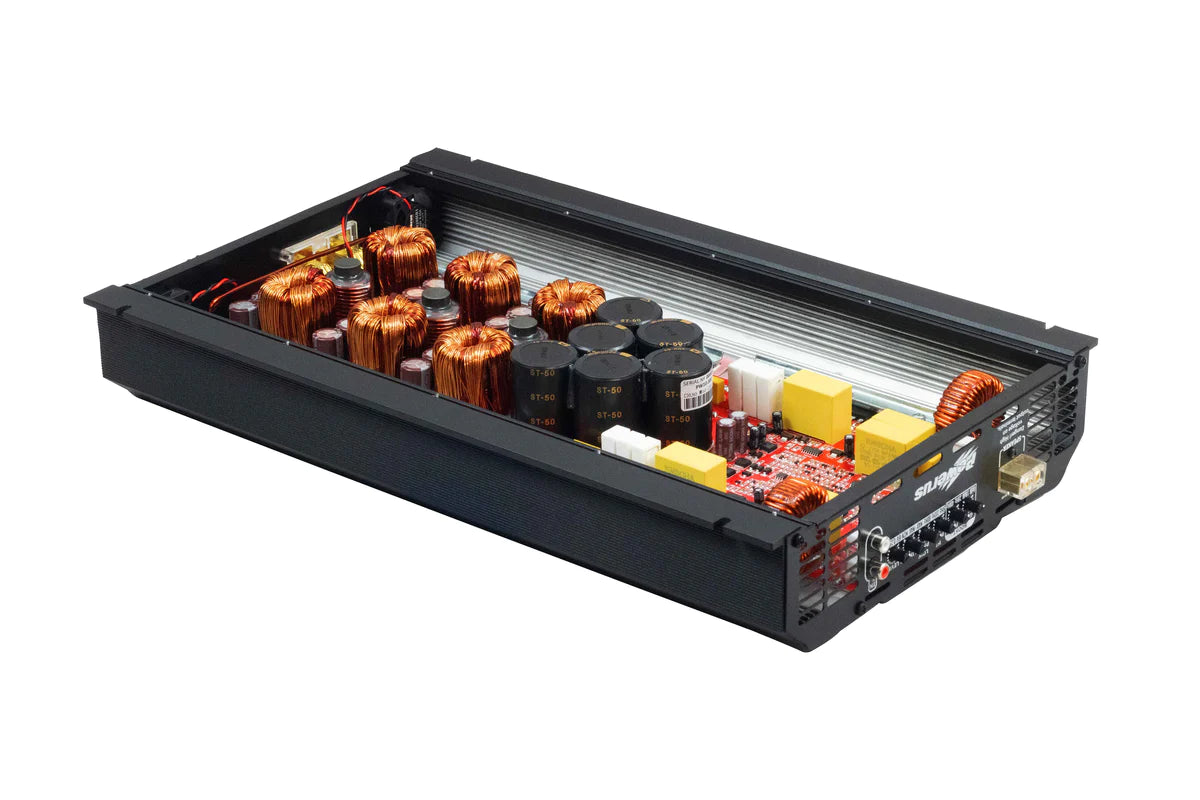

It has a high build quality in its construction, with robust components, providing a greater declared power delivery with 0.1% THD with recorded RMS wattage tested at 40Hz,
POWERUS amplifiers also including exclusive functions such as LIMITER.
Supply Voltage / Power Supply 7Vdc ~ 16V dc
Consumption at Rest / Consumption at Rest 2.8A
Musical Consumption / Music Consumption 570A
Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in Sinusoidal Signal 40Hz 1145A
Efficiency / Efficiency 75%
Input Impedance / Input Impedance 22K Ohms
Input Sensitivity / Input Sensitivity 0.25V ~ 6V
Total Harmonic Distortion / THD 0.1%
Damping Factor / Damping Factor 40Hz (12.6V 2 Ω)> 1000
Frequency Response / Frequency Response 5Hz ~ 20KHz (- 1dB)

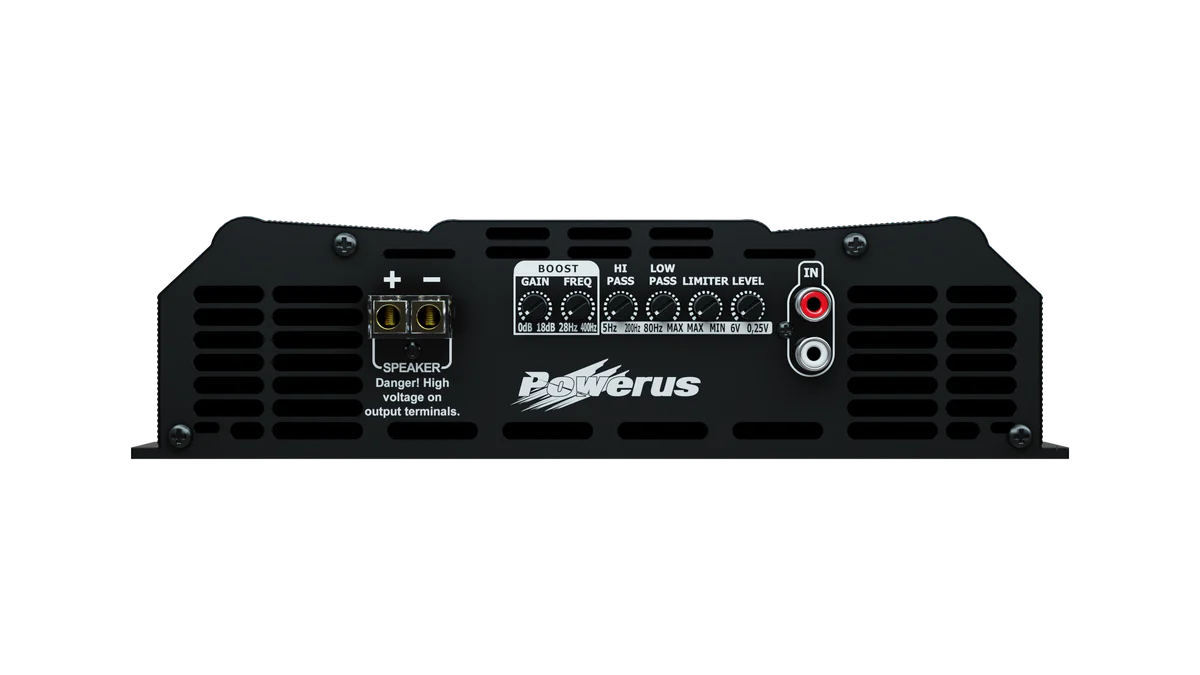

Low Pass Crossover 80Hz ~ 20KHz
Crossover High Pass 5Hz ~ 200Hz
Boost Gain / Boost Gain 0dB ~ 18dB
Variable Boost Frequency / Frequency of Variable Reinforcement. 28Hz ~ 400Hz
Variable Threshold Limiter / Variable Threshold Limiter Exclusivvo
Dimensions / Dimensions (DxHxL) mm 70x280x450
Weight without Packaging / Weight if Packing 7.80Kg

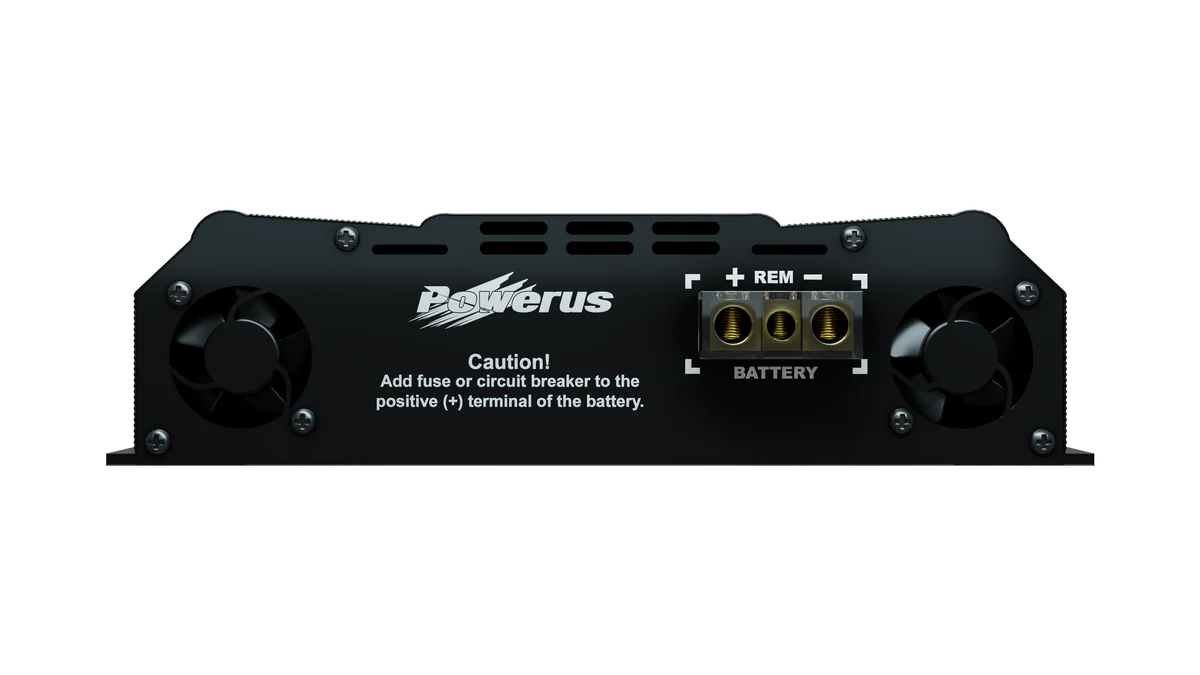

To install the power supply, use cables with a 50mm2 gauge. OR BIGGER with reducers. (TRIPPLE INPUTS ARE ALSO NEEDED)
The positive cable must come directly from the battery, with a fuse or protective circuit breaker/fuse located 30 cm from the battery. The negative cable must have the same gauge as the positive cable and screwed into the vehicle's chassis, taking care to avoid paint and rust that may prevent the passage of electrical current, causing loss of power and noise in the sound.
this amplifier requires an upgraded power supply, extra battery/batteries and up-rated alternator (all vehicles requirements will vary)
Vermogen @ 12.6V @ 1Ω: 1 X 10800 WRMS
Vermogen @ 12.6V @ 2Ω: 1 X 7815 WRMS
Vermogen @ 14,4V @ 1Ω: 1 X 11900 WRMS
Vermogen @ 14,4V @ 2Ω: 1 X 8760 WRMS
Powerus PW10000 - 2Ω
Vermogen @ 12.6V @ 2Ω: 1 X 10800 WRMS
Vermogen @ 12.6V @ 4Ω: 1 X 7815 WRMS
Vermogen @ 14,4V @ 2Ω: 1 X 11900 WRMS
Vermogen @ 14,4V @ 4Ω: 1 X 8760 WRMS
