LF Audio - SSA
- Real time analysis of up to 4 RCA channels
- FFT signal monitoring
- Clip detection
- Seamless wireless connection to the AuralSync™ app, WVC Knob, WDD, and WDD-LITE

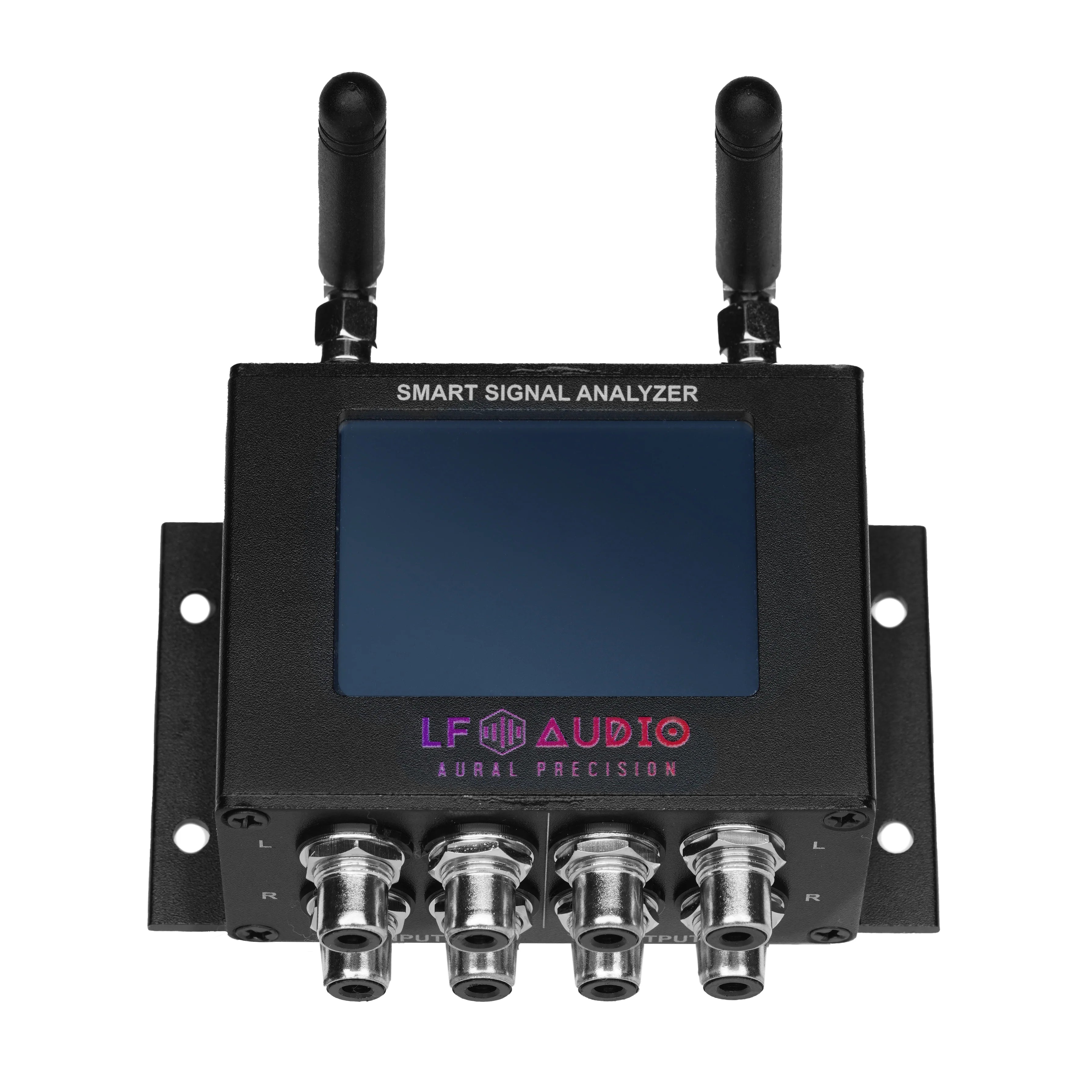

The LF Audio SSA (Smart Signal Analyzer) is a real-time RCA signal analysis tool. The analyzer captures RCA signal voltage and performs on-the-fly FFT on the time and frequency domain to detect clipping, provide frequency information, and more.
The unit was born from real customer feedback; installers and enthusiasts who discovered damaged amplifiers, blown speakers, and failed DSPs after the fact.
Bad RCA cables, ground loop noise, overdriven head units, and poorly mastered tracks (especially rebassed songs) all create signal problems that standard testing can't catch once your system is buttoned up. An oscilloscope gives you a snapshot at install time, but the SSA gives you continuous protection and real-time insight while you're actually using your system.
Features

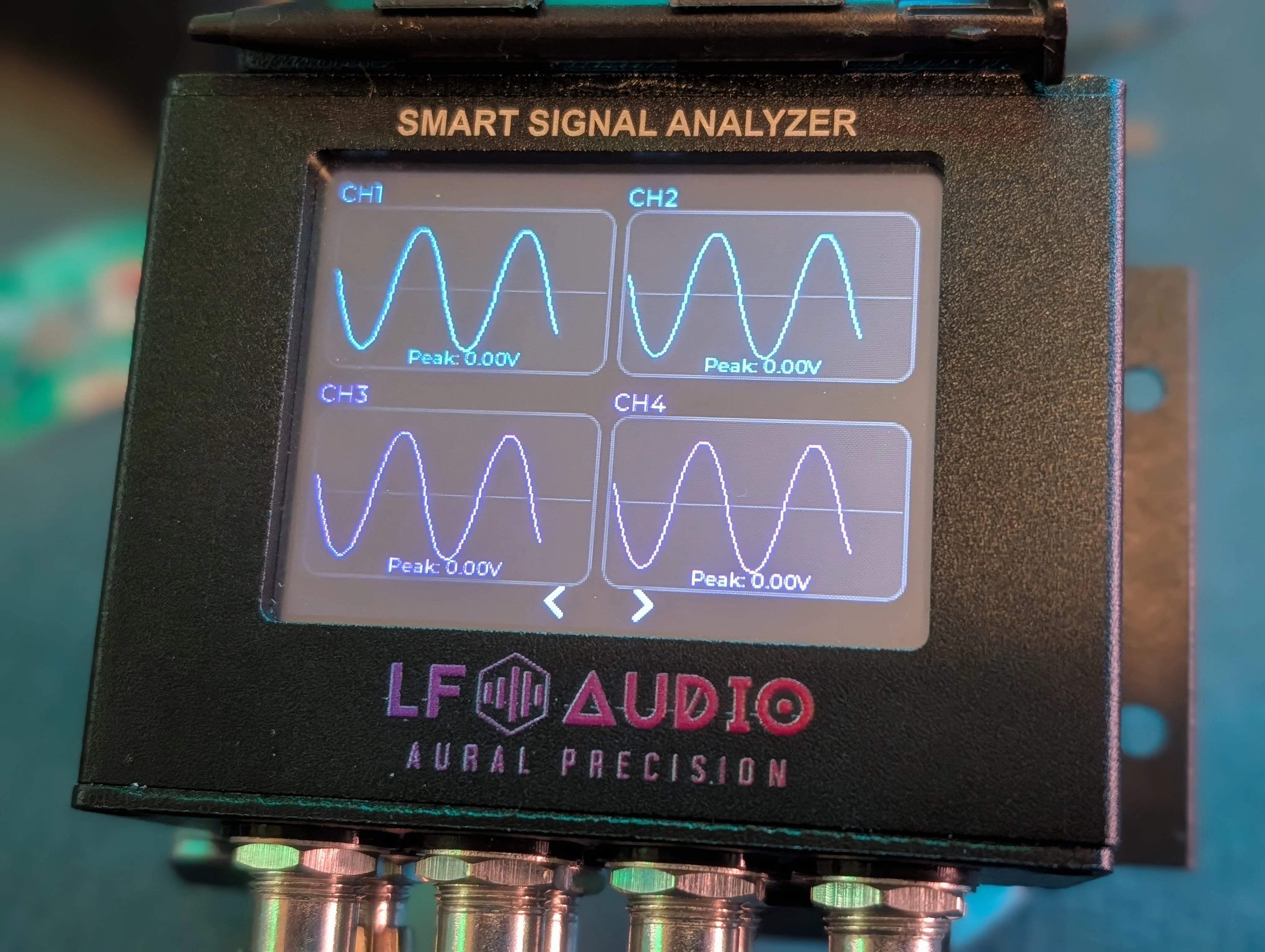

- Smart Visual Feedback - The customizable onboard color touchscreen allows you to choose from multiple intelligent real-time signal analysis displays. Use it to track your signal, detect clipping, or as a gorgeous display companion!
- Detects Signal Clipping in Real-Time – Monitors up to 4 RCA channels continuously and alerts you when your source unit, DSP, or badly mastered music is clipping before it damages your equipment
- Identifies Bad Signal Quality – FFT analysis reveals distortion, noise, and frequency abnormalities caused by failing RCAs, poor quality cables, or dirty connections
- Catches Ground Issues – Detects ground loop hum, alternator whine, and electrical interference contaminating your signal path
- Provides Live THD Analysis – Measures Total Harmonic Distortion so you know exactly how clean (or dirty) your signal is at any moment
- Prevents Amplified Garbage – Ensures your signal is clean before it hits your amplifiers, because feeding garbage in means amplifying garbage out
Wireless, Real-Time Monitoring
Connected via AuralSync™, the SSA integrates with your entire LF Audio system:
- Stream live data to the WVC Knob, RTC (Rotary Touch Controller), WDD (Wireless Data Display), WDD-LITE, or your phone
- Auto-mute protection via WVC if dangerous signal conditions are detected
- Remote monitoring from anywhere in the vehicle
The Bottom Line
The SSA isn't just a meter, it's real-time analysis, protection, and control that helps you optimize your system and catch problems before they become expensive repairs.
Specifications
| Analysis channels | 4 RCA inputs, sampled simultaneously |

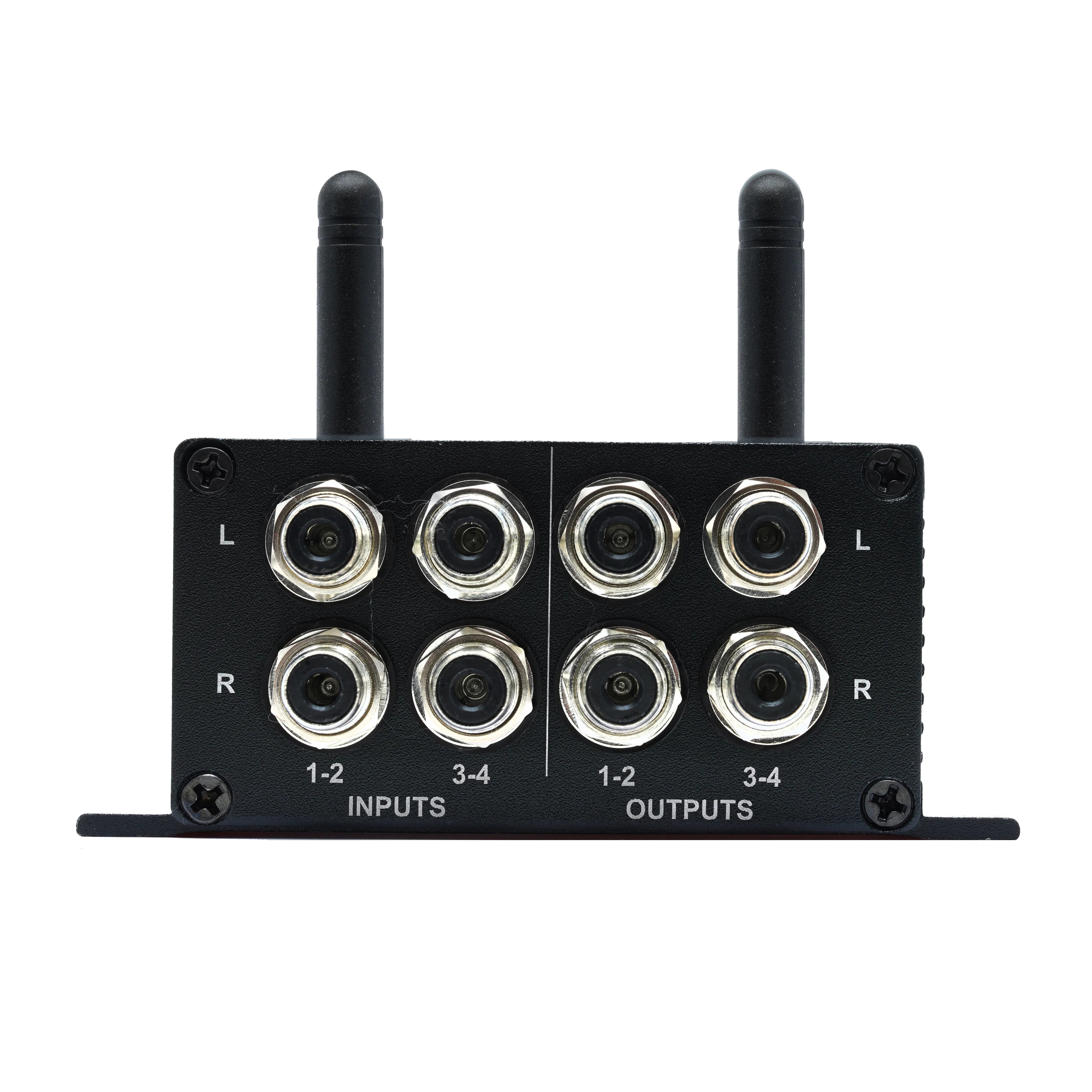

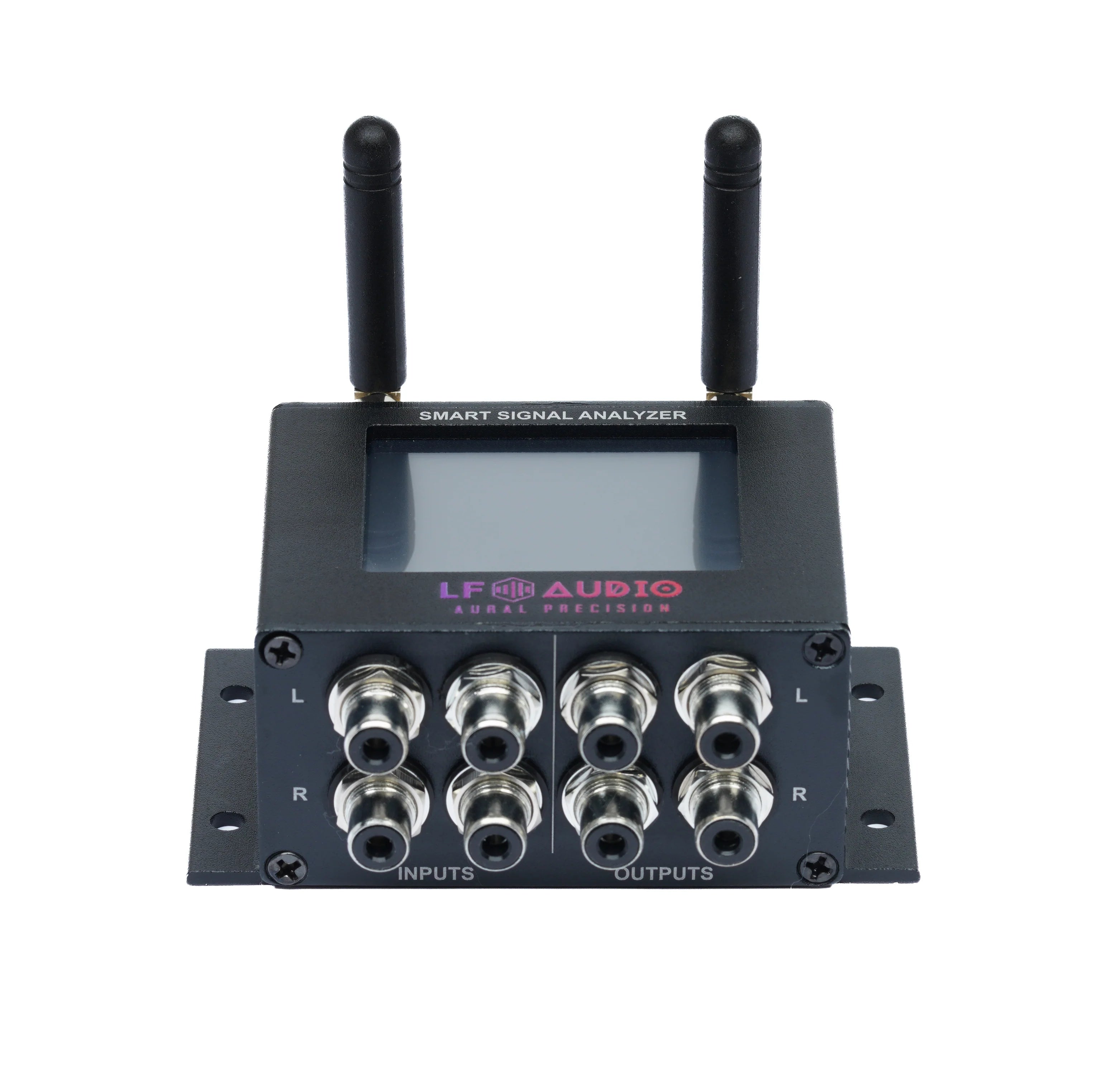

| Inputs and outputs | 4 RCA inputs and 4 RCA outputs, one pair per channel |
| Signal path | Passive. The signal passes through to your amplifiers unaltered |
| Input impedance | Greater than 150 kΩ per channel |
| Maximum input | 15 V RMS per channel |
| Converter | 24-bit delta-sigma, 96 kHz sample rate |
| Anti-aliasing, analog | First order RC, 3 dB down at 55 kHz |
| Anti-aliasing, digital | Pass band to 43.6 kHz, stop band from 56 kHz, pass band ripple +/- 0.05 dB, stop band attenuation 65 dB |
| High-pass filter | 1 Hz |
| Converter SNR | 106 dB |
| Converter THD+N | 87 dB |
| FFT length | Up to 32,768 points, selectable |
| FFT resolution | 1.46 Hz at 32,768 points |
| FFT window length | 683 ms at 32,768 points |
| Window function | Blackman-Harris, Hann, or rectangular |
| Spectral averaging | Selectable |
| Analysis span | 0 to 24 kHz |
| Measurements | Fundamental frequency and level, harmonic table, THD %, THD dB, THD+N, SNR |
| Oscilloscope | Triggered capture at 96 kHz |
| Display | 320 x 240 colour touchscreen |
| Size | 98mm wide x 81mm deep x 41mm tall (add space for RCA cables) |
| Wireless | AuralSync. Optional pairing with a WDD-LITE, BassWatch, or RTC display |
| Firmware updates | Over the air |
| Power | 12 V automotive, switched source recommended. 3-pin plug-in terminal (12 V, ground, remote) |
| Channel calibration | Per channel at the factory against a traceable reference |
