Beschrijving
|

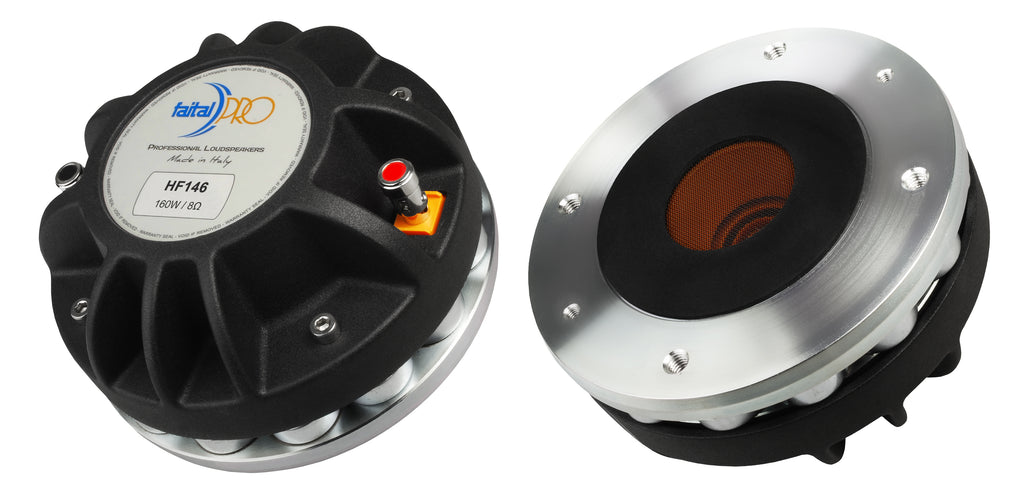

FaitalPRO HF146 1,4” Compression Drivers zijn p.st. |
|
|
Throat Diameter |
1.4" / 35.6mm |
| Impedance | 8 or 16 ohms |
| Sensitivity (1W/1m) | 109dB SPL |
| Impedance | 8 Ohm |
| AES Power Handling | 80 Watts @ 900Hz & 40 Watts @ 650Hz |
| Program Power Handling | 160 Watts @ 900Hz & 80 Watts @ 650Hz |
|
Frequency Response |
700Hz - 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter | 2.56" / 65mm |
| Winding Depth | 0.12" / 3mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.7T |
|
Mounting Information |
|
| Overall Diameter | 4.84" / 123mm |
| Overall Depth | 4.02" / 102mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
| Net Weight | 4.4 lb. / 2.0 kg. |
| Shipping Weight | 5.07 lb. / 2.3 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet | Neodymium |
Freq. Response & Distortion Curve |
|
Impedance Curve |
|
|
Dimensional Drawing
|
|
