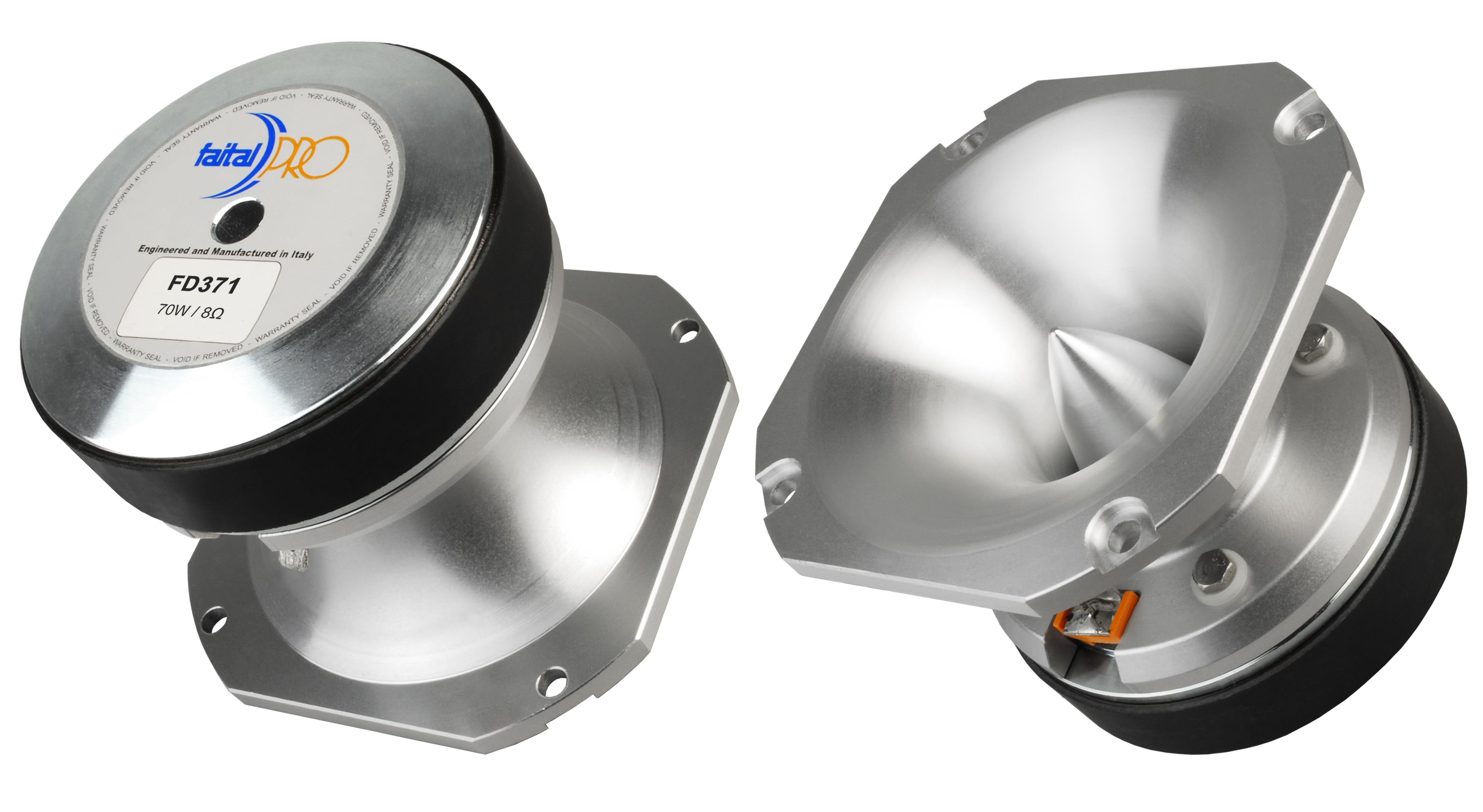

Faital PRO FD371 - Bullet Tweeters zijn p.st. |
|
| Impedance | 8 ohms |
| D.C. Resistance | 5.5 ohms |
| Sensitivity (1W/1m) | 107dB SPL |
|
RMS |
35 RMS |
| Watts |
70 Watts |
|
Frequency Response |
2.6kHz - 20kHz |
| Recommended Crossover | 2.6 kHz @12 dB/oct. |
| Dispersion | 40°Conical |
| Voice Coil Diameter | 1.46" / 37mm |
| Winding Depth | 0.08" / 2.1mm |
| Magnetic Gap Depth | 0.1" / 2.6mm |
| Flux Density | 1.5T |
| Phase Plug | Annular |
|
Mounting Information |
|
| Overall Diameter | 4.53" / 115.2mm |
| Overall Height | 4.01" / 102mm |
| Overall Width | 4.01" / 102mm |
| Overall Depth | 3.11" / 79mm |
| Baffle Cutout Dimensions | 3.66" / 93mm |
| Bolt Circle Diameter | 4.21" / 107mm |
| Flange Thickness | .22" / 5.5mm |
| Net Weight | 2.8 lb. / 1.27 kg. |
| Shipping Weight | 2.9 lb. / 1.3 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
