Beschrijving
|

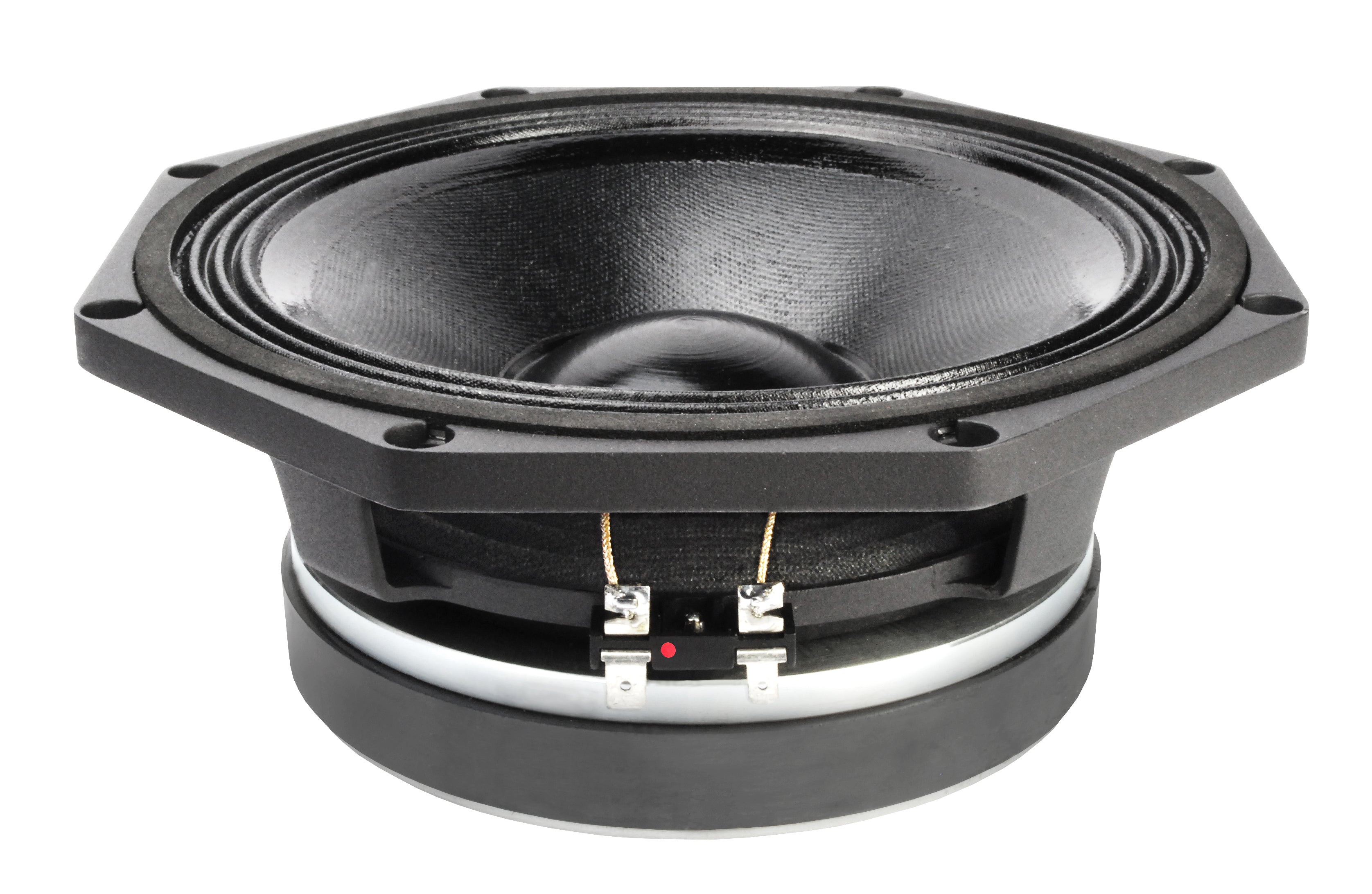

Faital PRO 8PR155 8” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 8" / 200mm |
| Impedance | 8 ohms |
| RMS | 200 RMS |
| Watts | 400 Watts |
| Frequency Response | 70Hz - 5.0kHz |
| Sensitivity (1W/1m) | 97dB SPL |
| Voice Coil Diameter | 2" / 52mm |
| Voice Coil Length | 16.5 mm |
| Air Gap Height | 8.0 mm |
| X Damage | 15.7 mm |
| BL Factor | 13.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.81"/8.18" / 223.8mm/207.9mm |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter-Front Mount | 7.2" / 183mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 3.88" / 98.5mm |
| Flange & gasket Thickness | 0.43" / 10.8mm |
| Net Weight | 9.5 lb. / 4.3 kg. |
| Shipping Weight | 10.1 lb. / 4.6 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 65 Hz |
| Impedance (Re) | 5.7 ohms |
| Coil Inductance (Le) | 0.46 mH |
| Mechanical Q (Qms) | 3.1 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | 0.83 ft3 / 29 Liters |
| Voice Coil Overhang (Xmax) | 6.92 mm |
| Surface Area of Cone (Sd)m2 | 0.0196m2 |
| Reference Efficiency | 1.06% |
| Diaphragm Mass (Mms) | 23.7 Grams |
| Mechanical Compliance (Cms) | .24 mm/N |
| Mechanical Resistance (Rms) | 3.38 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
