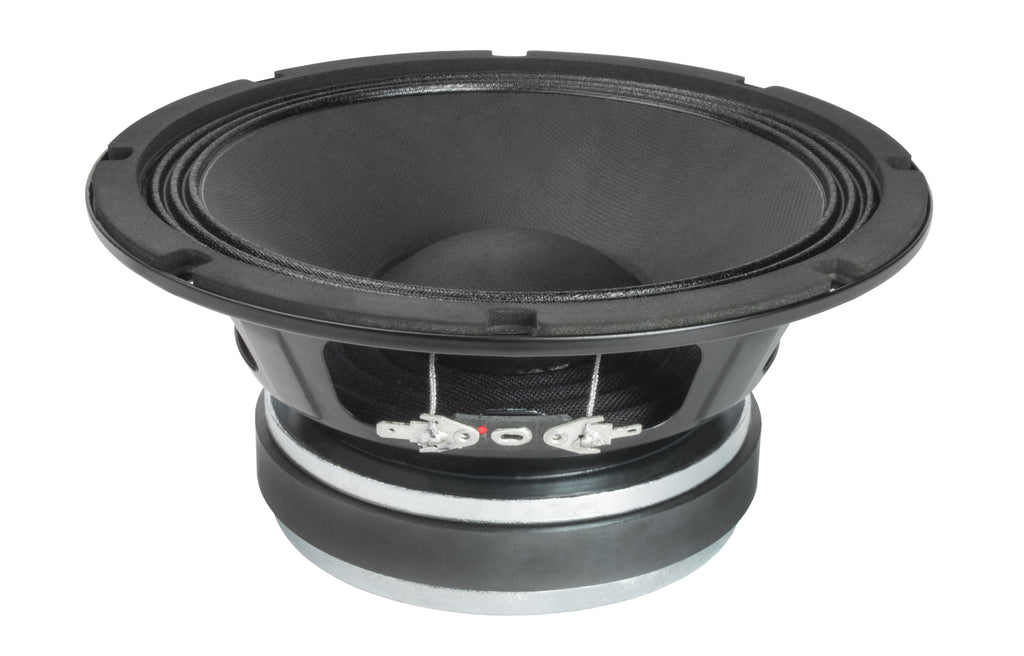

Faital PRO 8FE300 8” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 8" / 200mm |
| Impedance | 4/8 ohms |
| RMS | 250 RMS |
| Watts | 500 Watts |
| Frequency Response | 80Hz - 5.0kHz |
| Sensitivity (1W/1m) | 93/95dB SPL |
| Voice Coil Diameter | 2.05" / 52mm |
| Winding Depth | 13.7 mm |
| Magnetic Gap Deptht | 8 mm |
| X Damage | 11.6 mm |
| BL Factor | 11.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.23" / 209mm |
| Bolt Circle Diameter | 7.78" / 197.5mm |
| Baffle Cutout Diameter-Front Mount | 7.2" / 183mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 3.74" / 95mm |
| Flange & Gasket Thickness | 0.28" / 7mm |
| Net Weight | 6.8 lb. / 3.1 kg. |
| Shipping Weight | 8.58 lb. / 3.9 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 70 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 0.55 mH |
| Mechanical Q (Qms) | 13.4 |
| Electrical Factor (Qes) | .46 |
| Total Q (Qts) | .44 |
| Comp. Equivelant Vol. (Vas) | 0.55 ft3 / 15.7 Liters |
| Voice Coil Overhang (Xmax) | 5.52 mm |
| Surface Area of Cone (Sd)m2 | 0.0223m2 |
| Reference Efficiency | 1.3% |
| Diaphragm Mass (Mms) | 22.9 Grams |
| Mechanical Compliance (Cms) | .23 mm/N |
| Mechanical Resistance (Rms) | .8 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
