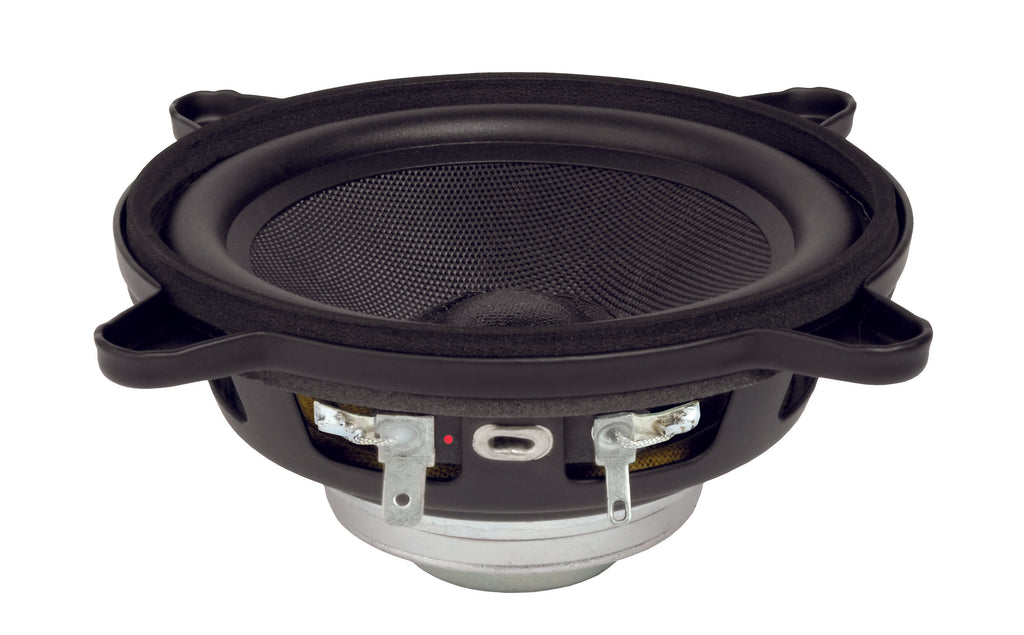

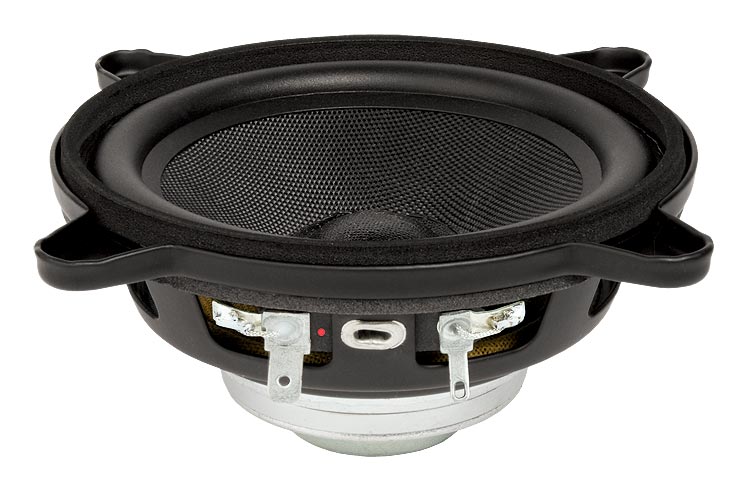

Faital PRO 4FE32 4” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 4" / 100mm |
| Impedance | 8 ohms |
| RMS | 30 RMS |
| Watts | 60 Watts |
| Frequency Response | 90Hz - 20.0kHz |
| Sensitivity (1W/1m) | 91dB SPL |
| Voice Coil Diameter | .75" / 19mm |
| Winding Depth | 6.8 mm |
| Magnetic Gap Depth | 4 mm |
| X Damage (peak to peak) | 6.8 mm |
| BL Factor | 4.8 N/A |
|
Mounting Information |
|
| Overall Diameter | 5.13"/3.9" / 129.85mm / 100.5mm |
| Bolt Circle Diameter | 4.54" / 115.26mm |
| Baffle Cutout Diameter-Front Mount | 3.6" / 91.5mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 1.96" / 49.8mm |
| Flange & gasket Thickness | 0.28" / 7.2mm |
| Net Weight | .6 lb. / .27 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Suspension | Half Roll |
| Former Material | Kapton |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 6.5 ohms |
| Coil Inductance (Le) | 0.18 mH |
| Mechanical Q (Qms) | 4.9 |
| Electrical Factor (Qes) | .6 |
| Total Q (Qts) | .5 |
| Comp. Equivelant Vol. (Vas) | 0.014 ft3 / 4.0 Liters |
| Voice Coil Overhang (Xmax) | 2.73 mm |
| Surface Area of Cone (Sd)m2 | 0.048m2 |
| Reference Efficiency | .55% |
| Diaphragm Mass (Mms) | 4.2 Grams |
| Mechanical Compliance (Cms) | .6 mm/N |
| Mechanical Resistance (Rms) | .45 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
