Beschrijving
|

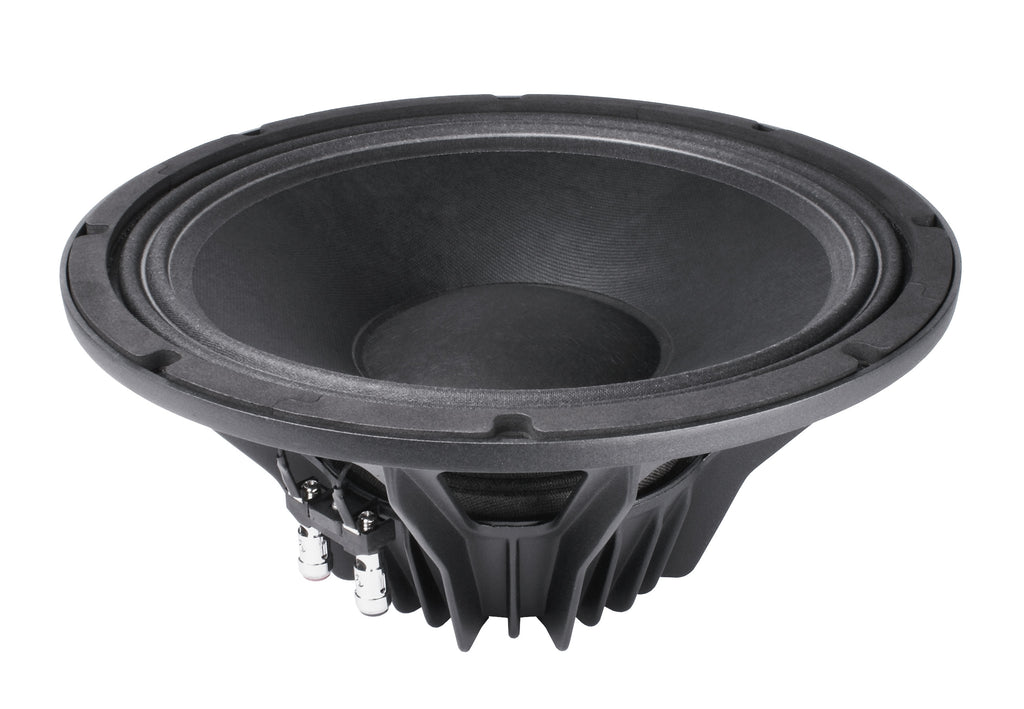

Faital PRO 10PR300 10” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 12" / 300mm |
| Impedance | 4, 8 or 16 ohms |
| RMS | 300 RMS |
| Watts | 600 Watts |
| Frequency Response | 50Hz - 5.0kHz |
| Sensitivity (1W/1m) | 99dB SPL |
| Voice Coil Diameter | 2.5" / 65mm |
| Voice Coil Length | 12.5 mm |
| Air Gap Height | 8 mm |
| X Damage | 14 mm |
| BL Factor | 14.1 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.4" / 315.2mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.16" / 283.5mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.54" / 140.6mm |
| Flange & gasket Thickness | 0.48" / 12.1mm |
| Net Weight | 5.3 lb. / 2.4 kg. |
| Shipping Weight | 6.6 lb. / 3.0 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 0.42 mH |
| Mechanical Q (Qms) | 9.9 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) | 2.8 ft3 / 79.2 Liters |
| Voice Coil Overhang (Xmax) | 4.92 mm |
| Surface Area of Cone (Sd)m2 | 0.0489m2 |
| Reference Efficiency | 2.6% |
| Diaphragm Mass (Mms) | 43.4 Grams |
| Mechanical Compliance (Cms) | .23 mm/N |
| Mechanical Resistance (Rms) | 1.37 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
