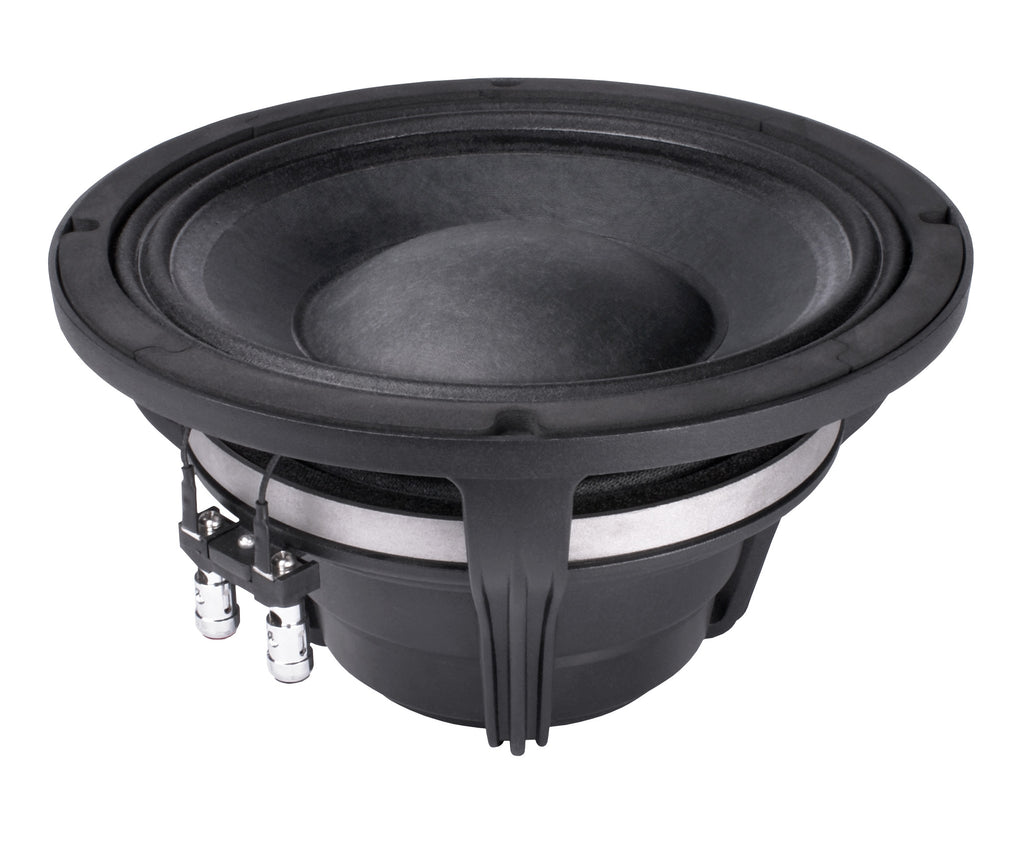

Faital PRO 10HP1020 10” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 8 ohms |
| RMS | 700 RMS |
| Watts | 1,400 Watts |
| Frequency Response | 60Hz - 4.0kHz |
| Sensitivity (1W/1m) | 96dB SPL |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 22 mm |
| Air Gap Height | 12 mm |
| X Damage | 12.5 mm |
| BL Factor | 25.7 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.56" / 141.3mm |
| Flange & gasket Thickness | 0.49" / 12.5mm |
| Net Weight | 11.44 lb. / 5.2 kg. |
| Shipping Weight | 12.76 lb. / 5.8 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 60 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 6.5 |
| Electrical Factor (Qes) | .25 |
| Total Q (Qts) | .24 |
| Comp. Equivelant Vol. (Vas) | 0.48 ft3 / 13.7 Liters |
| Voice Coil Overhang (Xmax) | 9.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0315m2 |
| Reference Efficiency | 1.14% |
| Diaphragm Mass (Mms) | 72.5 Grams |
| Mechanical Compliance (Cms) | .1 mm/N |
| Mechanical Resistance (Rms) | 4.2 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
