Beschrijving
|

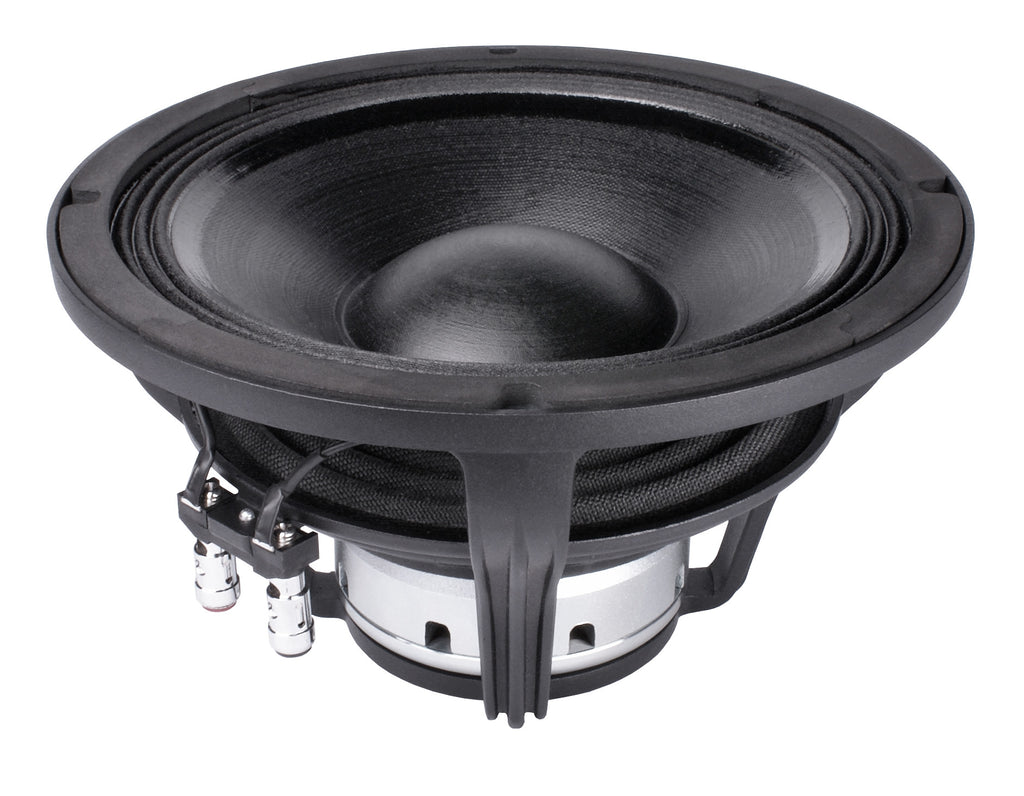

Faital PRO 10FH520 10” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 8 ohms |
| RMS | 600 RMS |
| Watts | 1,200 Watts |
| Frequency Response | 60Hz - 4.0kHz |
| Sensitivity (1W/1m) | 97dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 18.5 mm |
| Air Gap Height | 12 mm |
| X Damage | 19.5 mm |
| BL Factor | 18 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.13" / 232mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.56" / 141.3mm |
| Flange & gasket Thickness | 0.49" / 12.5mm |
| Net Weight | 8.2 lb. / 3.7 kg. |
| Shipping Weight | 9.5 lb. / 4.3 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 60 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.9 mH |
| Mechanical Q (Qms) | 11.1 |
| Electrical Factor (Qes) | .3 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | 0.72 ft3 / 20.5 Liters |
| Voice Coil Overhang (Xmax) | 7.25 mm |
| Surface Area of Cone (Sd)m2 | 0.0321m2 |
| Reference Efficiency | 1.44% |
| Diaphragm Mass (Mms) | 50.3 Grams |
| Mechanical Compliance (Cms) | .14 mm/N |
| Mechanical Resistance (Rms) | 1.7 Kg/s |
|
Frequency Response |
|
|
|
|
|
Mounting Dimensions |
|
|
|
|
