Features:
- Measure True Amplifier Power output (W)
- Measure Apparent Power (VA)
- Measure Phase Difference between Voltage and Current into reactive loads (PF)
- Measure AC Volts (V)
- Measure AC Current (A)
- Measure Max Amplifier Output with PEAK mode.
Package contains:
1x BHG-WM Wattmeter
1x 150A Current transformer.
1x 3.81mm 3-pin connector
2x 3.81mm 2-pin connector
Instruction Manual: Download
Specifications:
| AC Voltmeter: | 0 - 200 V Rms |
| AC Ammeter: | 0 - 150 A Rms |
| Power Factor: | 0.50 - 1.00 |
| Max Wattage: | 20,000+ Watts |
| Frequency range: | 15 - 100 Hz |
| Display: | 1.3" OLED Monochrome |
| Connectors: | 3.81 mm Plug connectors |
| Case material: | PETG Plastic |
| Dimensions: | Height: 1.6" - Width: 2.75" - Depth: 1" |
Display modes:

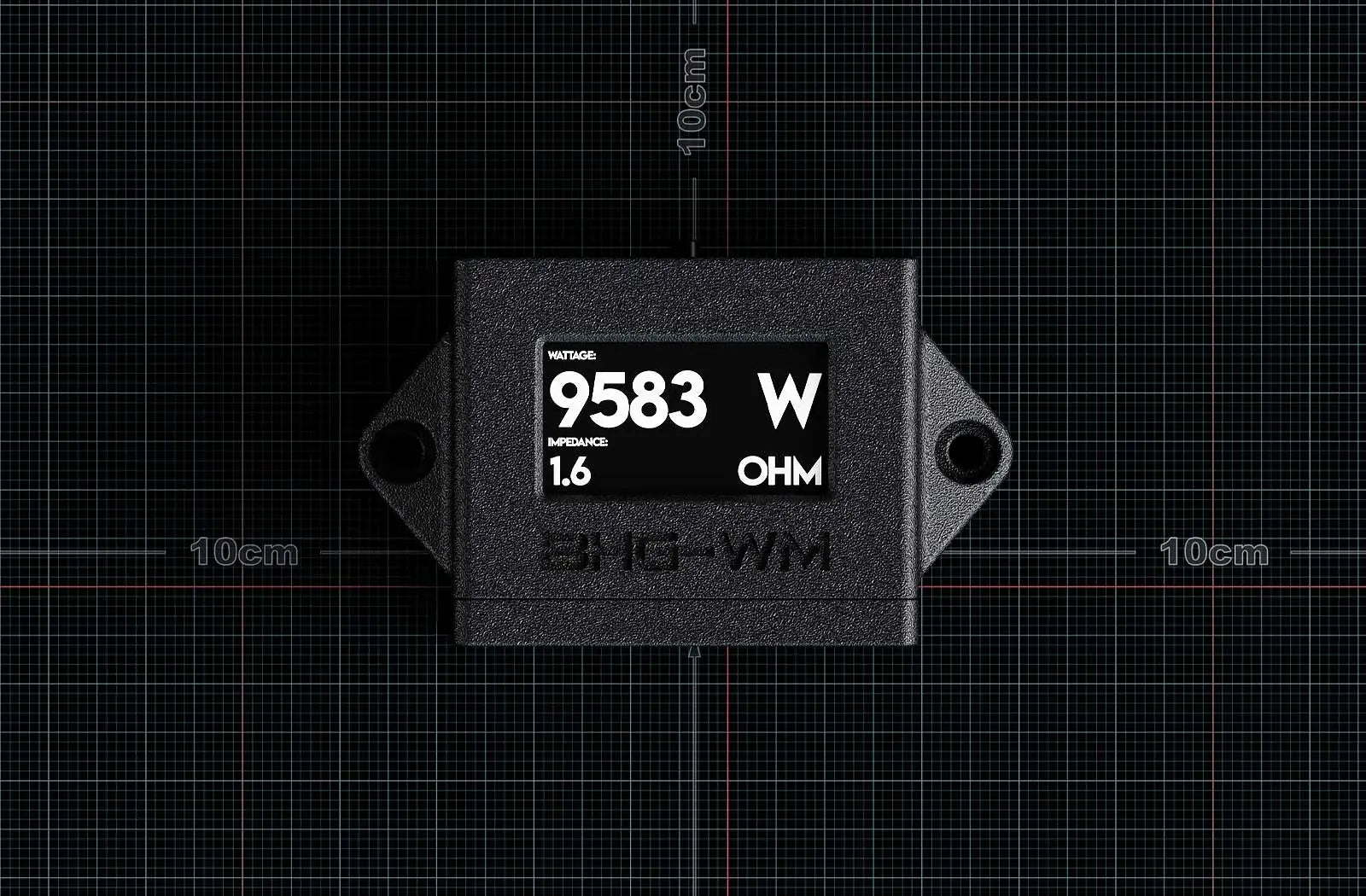

Wattage & Impedance

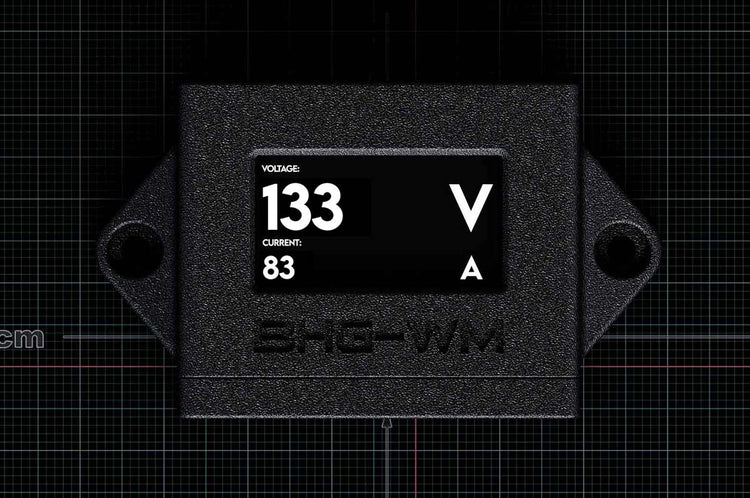

Voltage & Current

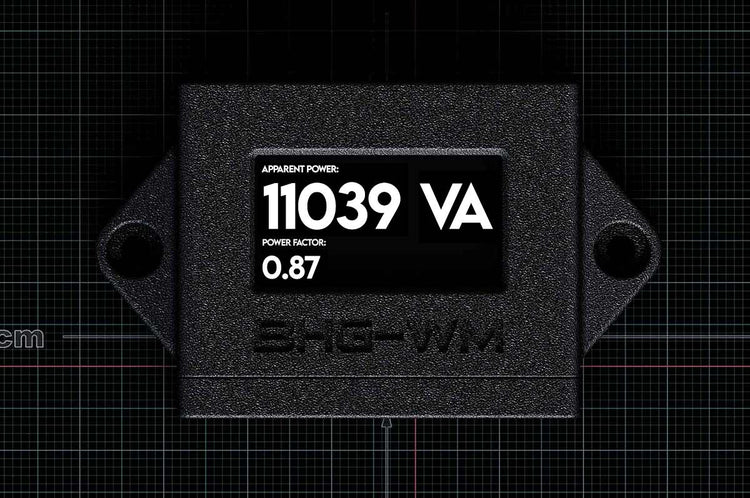

Apparent Power & Power factor

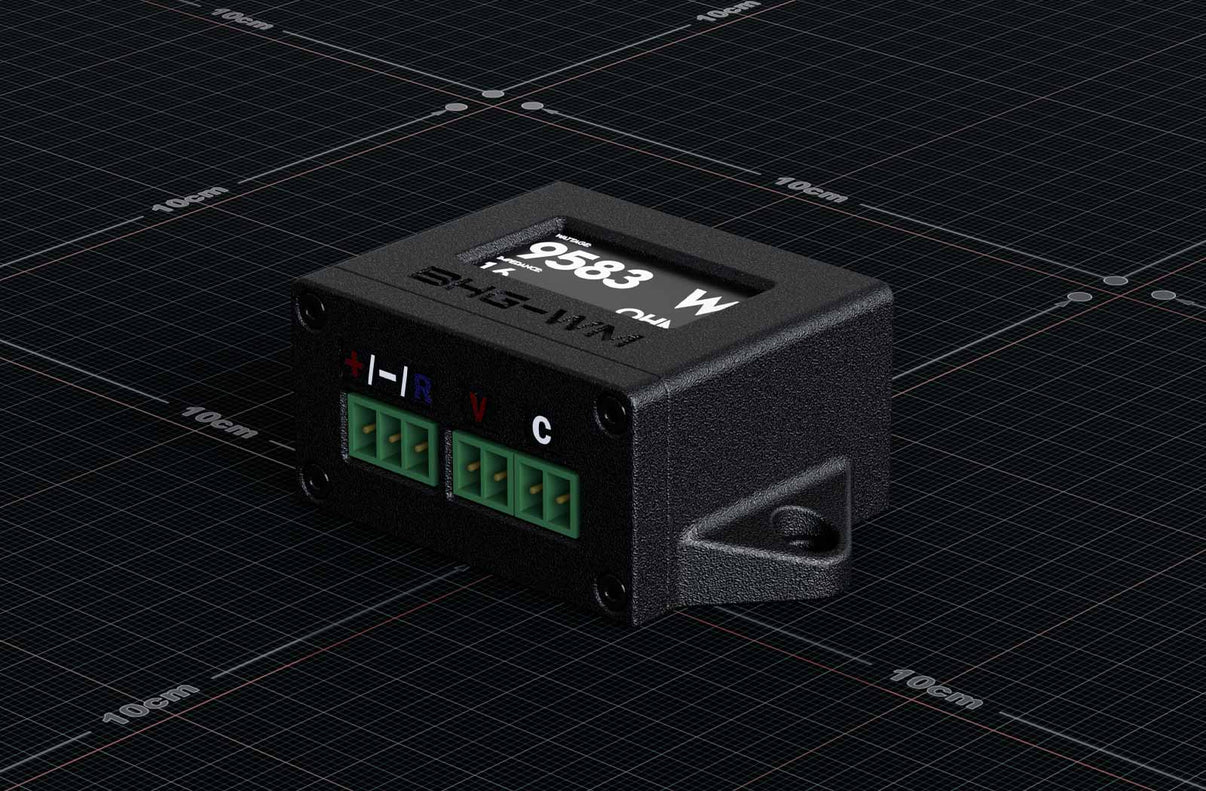

Wiring:
+ Battery Positive
- Battery Ground
R - Remote (Head Unit)
V - Connect to Car Amplifier speaker output + & -
C - Connect to the Current Transformer that goes around the positive or negative speaker wire.
