BHG WBK-M - Wireless Bass Knob V2
The WBK-M (Mono) V2 wireless system controller we offer is perfect for bass enthusiasts.
Meticulously designed to give you complete control and wireless monitoring capabilities, this innovative data acquisition and control combo will revolutionize your demo experience. Explore the cutting-edge design features of this unit.
Package contains:
1x WBK Controller
1x WBK-M Base
1x 3.81mm 3-pin connector
Instruction Manual: Download
Specifications:
| Working Voltage: | 9 - 18V |
| Wireless Technology: | 2.4 GHz (802.11 b/g/n) |
| Wireless Range: | Up to 150 feet |
| RCA Input Voltage: | 5V Maximum |
| Number of Channels: | 2 CH |
| Frequency Response: | 10 - 20KHz |
| Battery Capacity: | 1000 mAH |
| Display: | 0.96" OLED Monochrome |
| Charging Port: | USB-C |
| Auto Sleep: | OFF, 15s ,30s, 1m, 5m, 15m, 30m, |
| Knob Sensitivity: | Low, Normal, High |
| Voltmeter calibration: | ✓ |
| BASE Signal Indication: | LED Indicator |
| BASE Dimensions: | Height: 1.55" - Width: 3.8" - Depth: 1.9" |

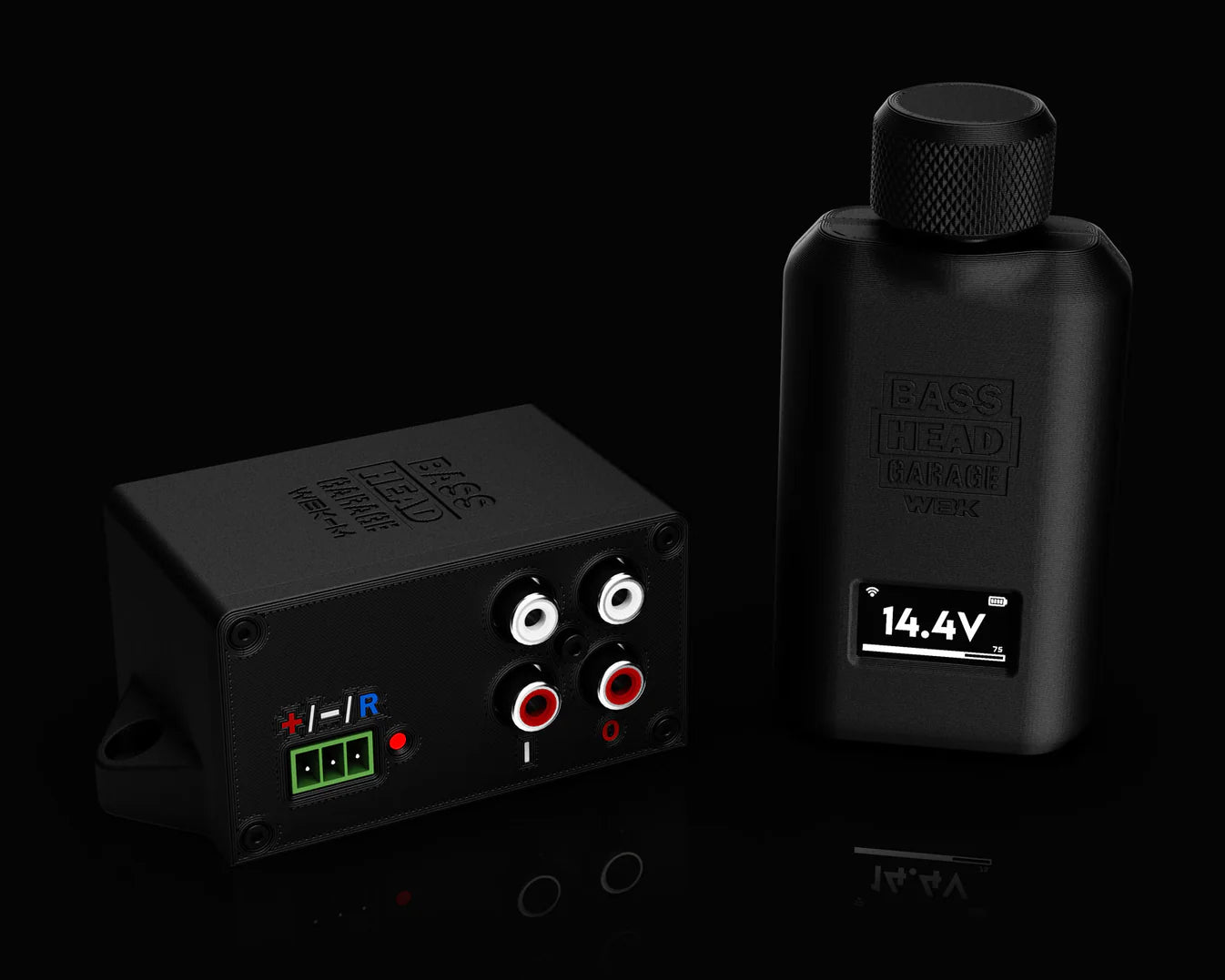

The Wireless Bass Knob WBK-S consists of two components: the WBK-S Base and the WBK Controller.
The Base is designed to serve as the hub for all connections, including power connections (Positive, Ground, and Remote), as well as RCA input and output for adjusting the audio signal level coming from the head unit.
RCA connections are a car audio standard used in universal wired bass knobs as well, allowing our wireless bass knob to be compatible with every car audio amplifier.
The second part of the wireless bass knob is the WBK Controller, which is used to control the audio signal level through a dedicated volume control IC inside the base module wirelessly.
For communication between the Controller and the Base, a 2.4GHz wireless protocol is used, providing a stable and fast connection at distances of up to 150 feets or more! Besides regulating the audio level, on the controller, you can also monitor the car voltage in real time and customize settings for a better user experience.
During use, if the Controller disconnects from the Base, the audio signal will continue to play normally, and there will be no differences in sound level.
Wiring:
+ Battery Positive
- Battery Ground
R - Remote (Head Unit)
I - Connects to Head Unit RCA Output
O - Connect to Amplifier RCA Input
