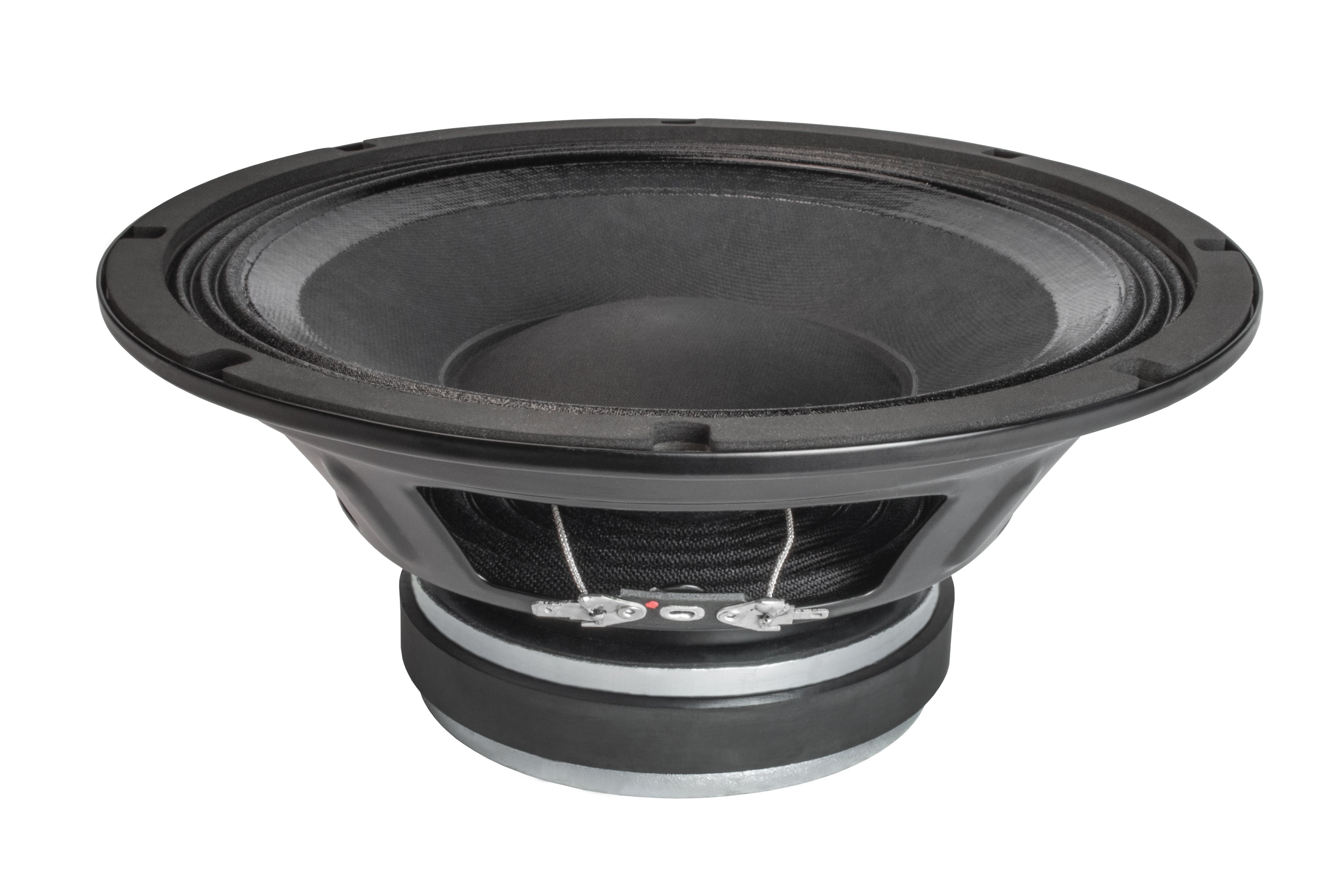

Faital PRO 10FE300 8” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 4/8 ohms |
| RMS | 250 RMS |
| Watts | 500 Watts |
| Frequency Response | 50Hz - 4.5kHz |
| Sensitivity (1W/1m) | 96dB SPL |
| Winding Depth | 2.05" / 52mm |
| Voice Coil Length | 13.7 mm |
| Magnetic Gap Depth | 8 mm |
| X Damage | 13.1 mm |
| BL Factor | 11.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.24" / 260m |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.17" / 233mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.33" / 110mm |
| Flange & gasket Thickness | 0.28" / 7mm |
| Net Weight | 7.1 lb. / 3.2 kg. |
| Shipping Weight | 8.2 lb. / 3.7 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 0.42 mH |
| Mechanical Q (Qms) | 13.1 |
| Electrical Factor (Qes) | .54 |
| Total Q (Qts) | .52 |
| Comp. Equivelant Vol. (Vas) | 1.78 ft3 / 50.5 Liters |
| Voice Coil Overhang (Xmax) | 5.52 mm |
| Surface Area of Cone (Sd)m2 | 0.0358m2 |
| Reference Efficiency | 1.2% |
| Diaphragm Mass (Mms) | 35.9 Grams |
| Mechanical Compliance (Cms) | .28 mm/N |
| Mechanical Resistance (Rms) | .9 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
