Beschrijving

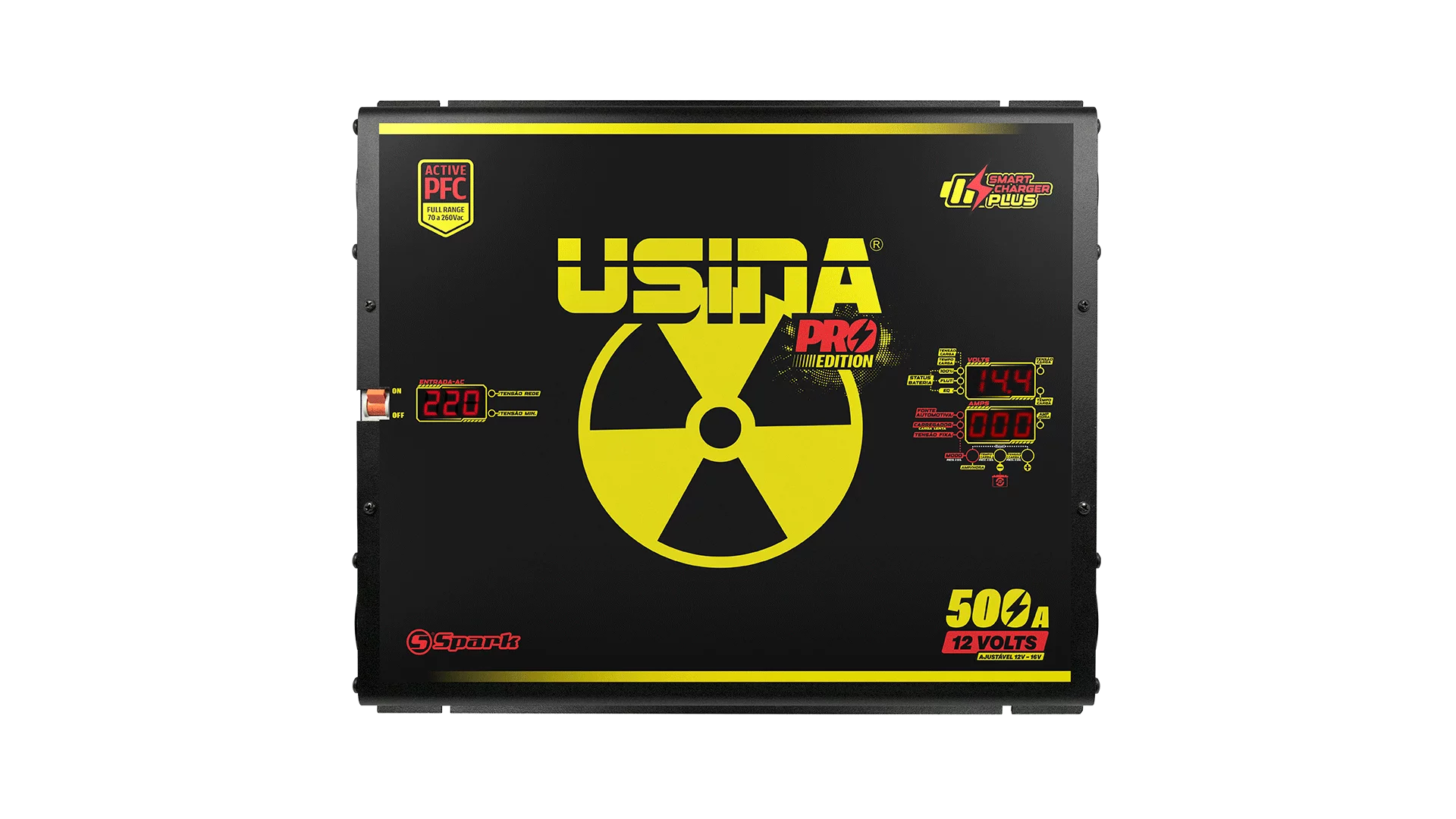

The USINA PRO font was developed for those who want a font for professional use, it has features never used in automotive fonts, including PFC ATIVO. (Only for professional use, comes with a separate plug that you have to assemble yourself !)
Works with: Yinlong LTO, LiFePO4 and AGM
INPUT VOLTAGE: 70 @ 260Vac
INPUT CURRENT(MAX): 50A
INPUT POWER: 7500Watts (maximum)**
POWER FACTOR: 0.95 @ 0.99
OUTPUT VOLTAGE: 12 @ 16Vdc (+- 1%)
OUTPUT CURRENT: 500A @ 13Vdc (+- 5%)*
OUTPUT POWER: 6500 Watts (maximum)**
EFFECT: 81% @ 85%
INPUT CABLE: 2x6mm²
INPUT PROTECTION: 50A circuit breaker
OUTPUT CABLE: 2 x 50mm²
RECOMMENDED EXTENSION: 6mm² (max 30 meters)
APPROXIMATE WEIGHT: 10,950Kg
RECOMMENDED GENERATOR: 8Kva
APPROXIMATE DIMENSIONS (LxWxH): 460mm x 370mm x 90mm***
*Current and power measured in resistive load
**Output power may vary according to grid voltage and usage conditions
***Measurements referring to the dimensions of the sources have a variation of approximately 2mm
