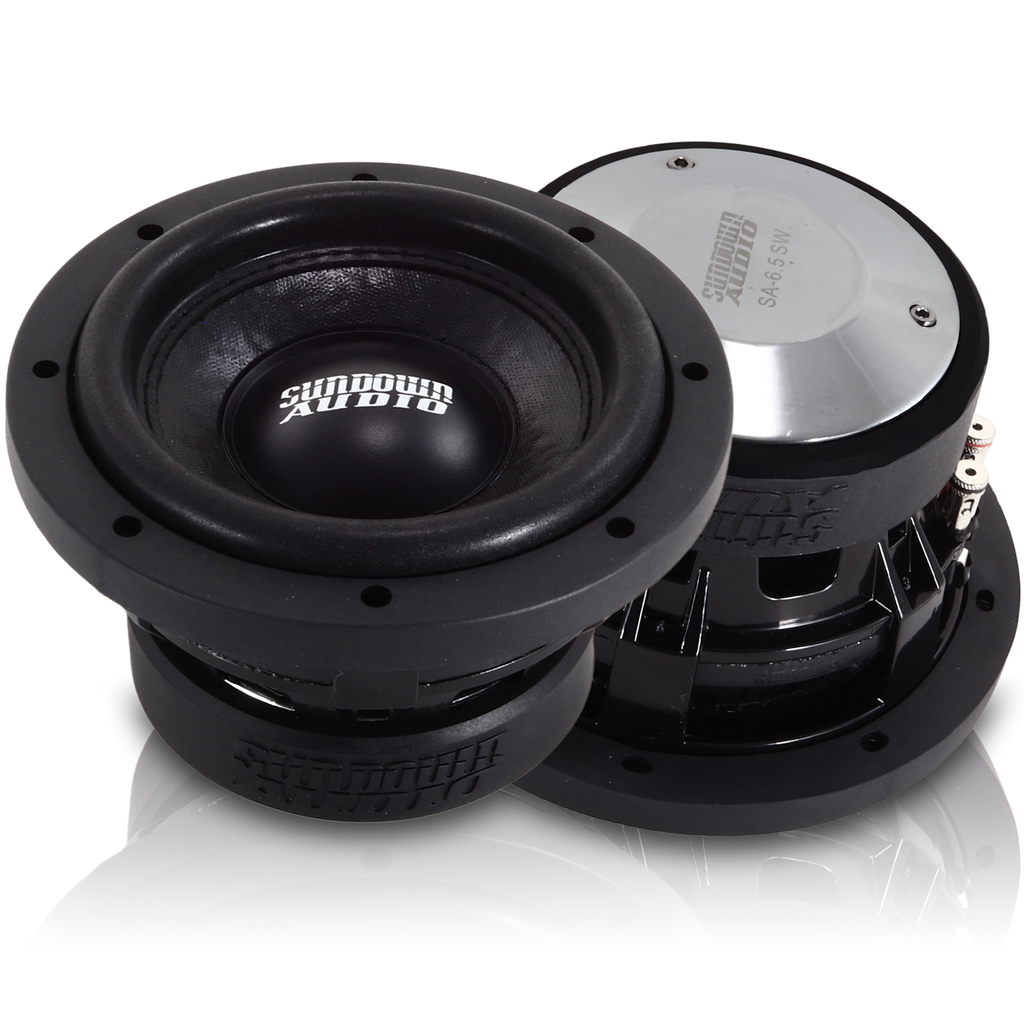

The SA-6.5SW was created to achieve extremely high performance at less than 4” of mounting depth (3.8” to be precise). Rest assured that even with the limited depth the SA-6.5SW lives up to the reputation of the SA series! These little guys will take a beating in TINY ported enclosures. Our customers have been in love with the incredible performance per dollar since their launch in 2017.

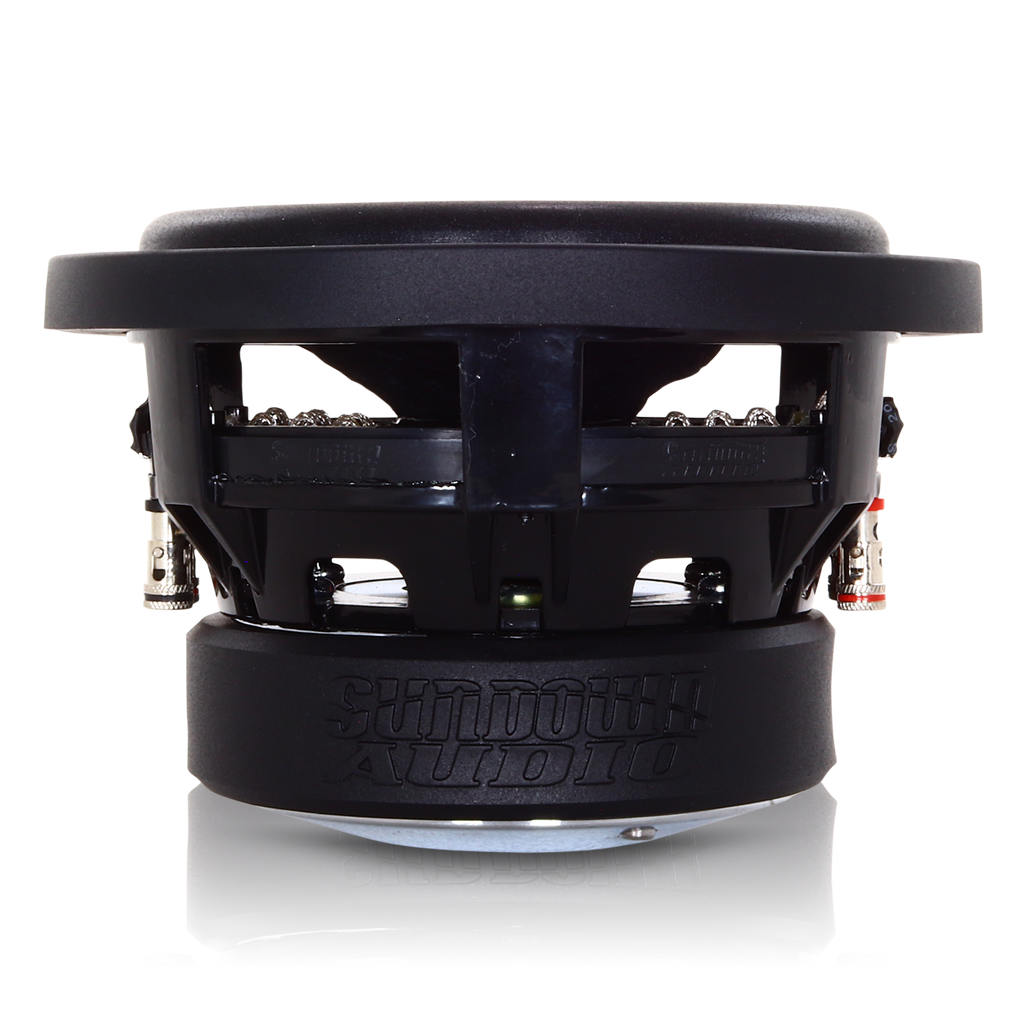

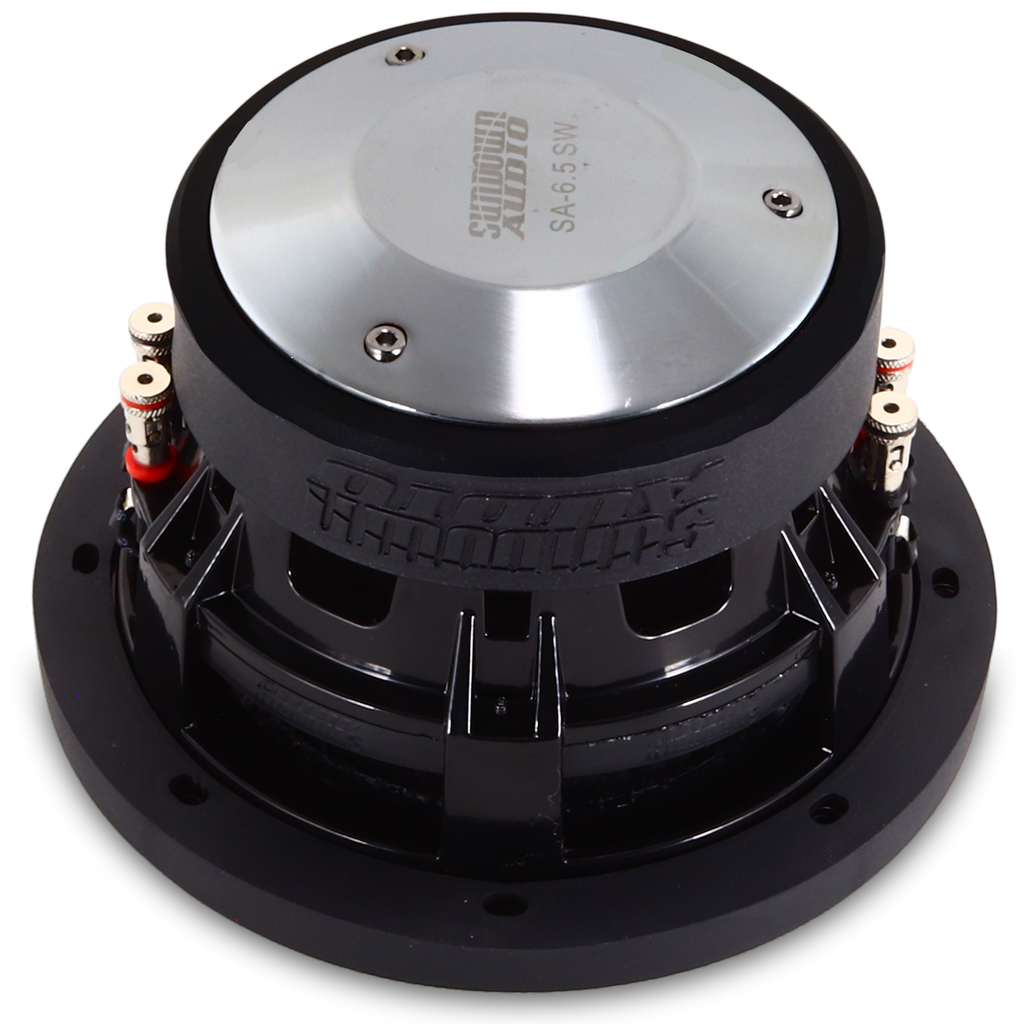

As with several other lines (SLD and SD-4 notably) we used a solid-pole design. This allows the back-plate to rest against the back wall of the enclosure. This further reduces effective depth requirements for this woofer. Shallow depth aside this unit has a full 10mm one-way linear excursion and an x-mech in excess of double that! So there is almost no concern about bottoming out the coil. We also borrowed the hyper-extended pole technique from our larger lines to help prevent coil damage from exiting the gap forward. Furthermore; we even included a magnet ID faraday ring to keep inductive distortions in check!
-
RMS Power: 200-watts
-
Coil: 1.5” Diameter Copper Windings w/ Black Aluminum Former
-
X-Max: 10mm one-way by 70% BL
-
Magnet ID Faraday Ring
- Solid Pole w/ Vent Channels
| T/S SPECS |
SA 6.5″ D2 |
SA 6.5″ D4 |
| RE (Ohms) |
4.0 |
7.1 |
| FS (Hz) |
48.9 |
51.8 |
| VAS (L) |
4.1 |
3.6 |
| Qes |
0.50 |
0.54 |
| Qms |
4.82 |
4.65 |
| Qts |
0.46 |
0.49 |
| Le (mH) |
1.69 |
2.45 |
| BL (NA) |
13.5 |
17.9 |
| Mms (Grams) |
74.8 |
75.6 |
| Cms (uM/N) |
0.14 |
0.12 |
| Sens (dB @ 1w/1m) |
81.6 |
81.5 |
| Enclosure Specifications |
|
| Sealed Enclosure |
0.15 cu ft |
| Ported Enclosure |
0.3 cu ft |
| Recommended Tuning |
40Hz |
| Recommended Port Area |
4 sq in |
| Displacement |
|
| Depth |
3.79" |
| Outside Diameter |
7.16" |
| Cut-Out |
5.93" |
| Physical Dimensions |
