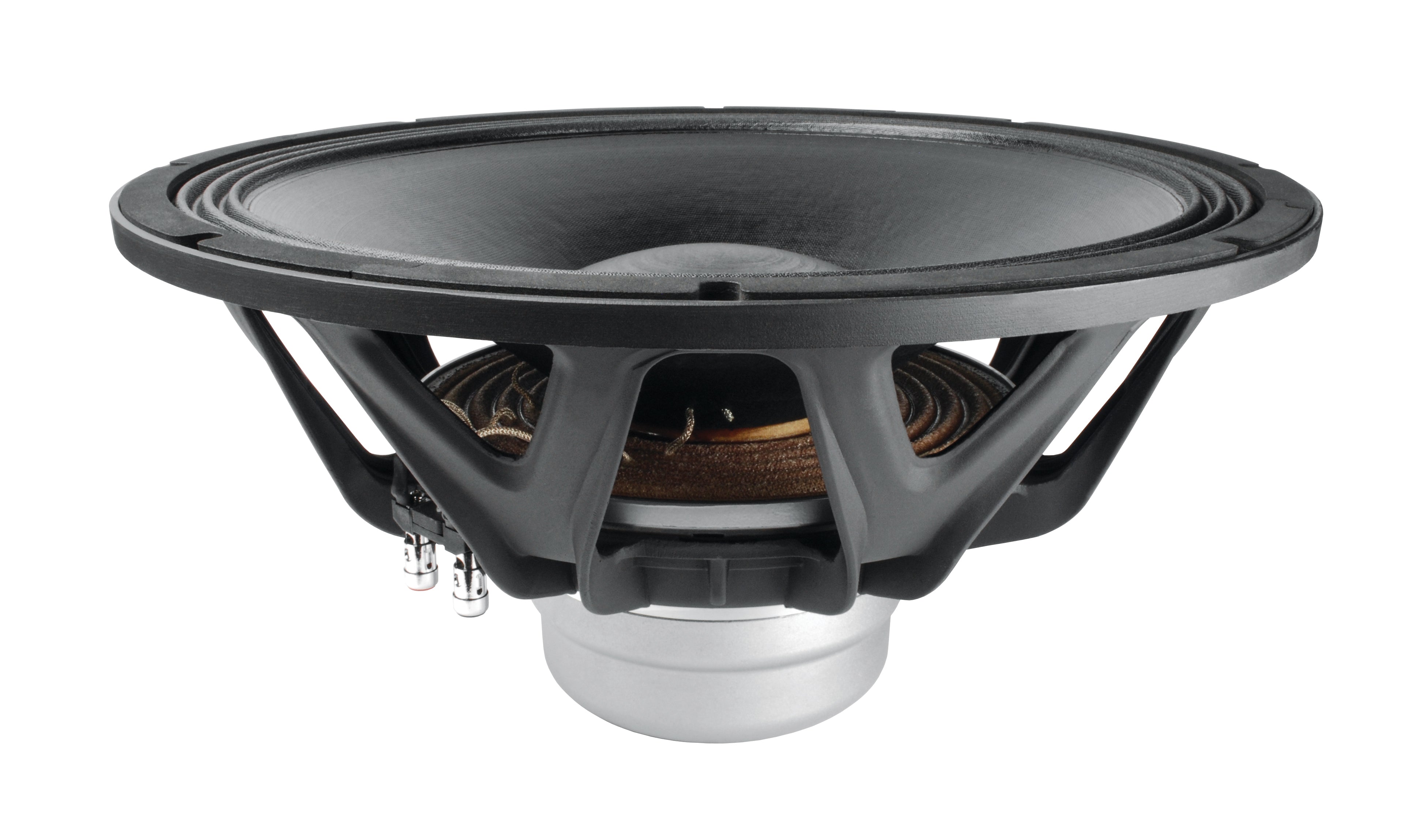

Faital PRO 18XL2000 18” - Woofers zijn p.st.
Faital Pro built the 18XL2000 18" professional subwoofer driver to meet the current market demands for more powerful drivers.
The large 4.65" voice coil is cooled with extensive venting to allow up to 4,000 watts peak (2,000 watts RMS) for long periods with minimal compression.
Driving the coil is a is a lightweight, but powerful, neodymium motor that allows ample room for the incredible 16.32 mm of xmax (32.74 mm peak to peak).
To help keep inductance and distortion at a minimum, the motor assembly includes dual aluminum shorting rings.
With a deep fold accordion surround and two mirror imaged spiders the cone is kept linear to the limits of excursion and beyond.
Thanks to Faital Pro's attention to detail and precision construction, the 18XL2000 is one of the most capable 18" drivers on the market today.
Faital Pro built the 18XL2000 18" professional subwoofer driver to meet the current market demands for more powerful drivers.
The large 4.65" voice coil is cooled with extensive venting to allow up to 4,000 watts peak (2,000 watts RMS) for long periods with minimal compression.
Driving the coil is a is a lightweight, but powerful, neodymium motor that allows ample room for the incredible 16.32 mm of xmax (32.74 mm peak to peak).
To help keep inductance and distortion at a minimum, the motor assembly includes dual aluminum shorting rings.
With a deep fold accordion surround and two mirror imaged spiders the cone is kept linear to the limits of excursion and beyond.
Thanks to Faital Pro's attention to detail and precision construction, the 18XL2000 is one of the most capable 18" drivers on the market today.
| Brand | FaitalPRO |
| Model | 18XL2000 |
| Weight | 25.9 |
| Nominal Diameter | 18" |
| Bolt Circle Diameter | 17.32 |
| Power Handling (RMS) | 2000 Watts |
| Power Handling (MAX) | 4000 Watts |
| Impedance | 8Ω |
| Frequency Response | 30Hz - 1.5kHz |
| Sensitivity | 97dB 2.83V/1m |
| Voice Coil Diameter | 4.65" |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 28Hz |
| DC Resistance (Re) | 5.3Ω |
| Voice Coil Inductance (Le) | 1.45mH |
| Mechanical Q (Qms) | 10.1 |
| Electromagnetic Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Compliance Equivalent Volume (Vas) | 7.15ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.11mm/N |
| BL Product (BL) | 30.8T·m |
| Diaphragm Mass Inc. Airload (Mms) | 286g |
| Maximum Linear Excursion (Xmax) | 16.32mm |
| Surface Area of Cone (Sd) | 1124cm² |
Materials of Construction |
|
|---|---|
| Cone Material | Treated Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Neodymium |
Mounting Information |
|
|---|---|
| Overall Outside Diameter | 18" |
| Baffle Cutout Diameter | 16.61" |
| Depth | 8.94" |
| # Mounting Holes | 8 |
