Beschrijving

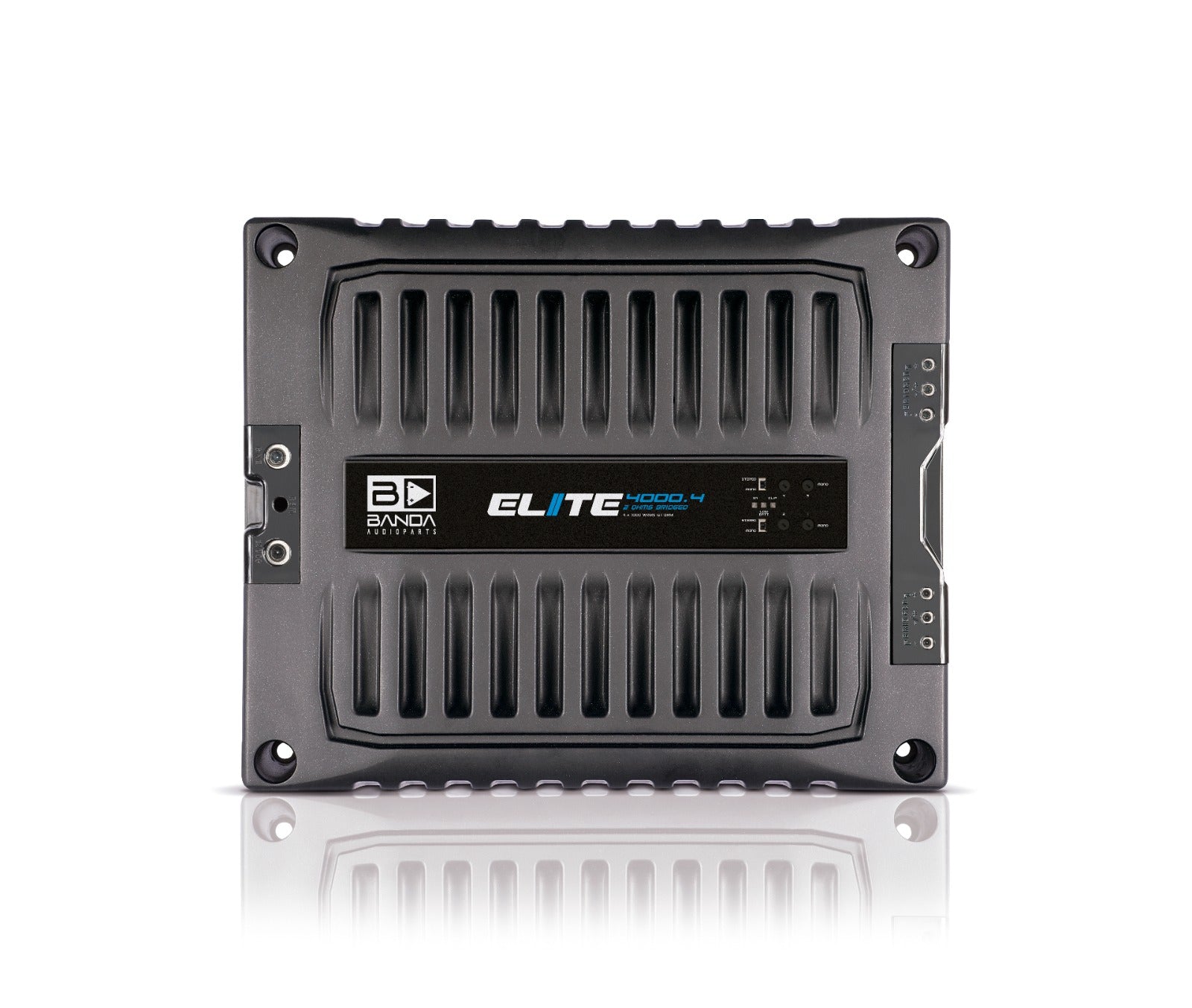

| Banda Elite 4000.4 - 2Ω | Klik hier voor de handleiding |
|
Total Power 14,4 @ 2 Ohms |
4 x 1200 WRMS |
|
Total Power 14,4 @ 4 Ohms |
4 x 800 WRMS |
|
Total Power 14,4 Bridged @ 4 Ohms |
2 x 2400 WRMS |
|
Total Power 12,6 @ 2 Ohms |
4 x 1000 WRMS |
|
Total Power 12,6 @ 4 Ohms |
4 x 650 WRMS |
|
Total Power 12,6 Bridged @ 4 Ohms |
2 x 2000 WRMS |
|
Efficiency @ 4 Ohms |
92% |
|
Efficiency @ 2 Ohms |
82% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
0,10% |
|
Input Sensitivity |
150mV – 4V |
|
SNR |
88dB |
|
Frequency Response |
5 to 22KHz (-3dBs) |
|
HPF (High Pass Filter) |
20 to 90Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Low Pass Filter) |
90 to 20kHz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
200 A |
|
Current at Rest |
1 A |
|
Average Current Draw (Sinusoidal) |
420 A |
|
Average Current Draw (Music) |
210 A |
|
Power Wire Gauge (min. Recommended) |
35mm / 2 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 4mm / 2 x 11 AWG |
|
Weight (Lb) |
11,2 |
|
Height (in) |
2,4 |
|
Width (in) |
10,6 |
|
Depth (in) |
12,3 |
