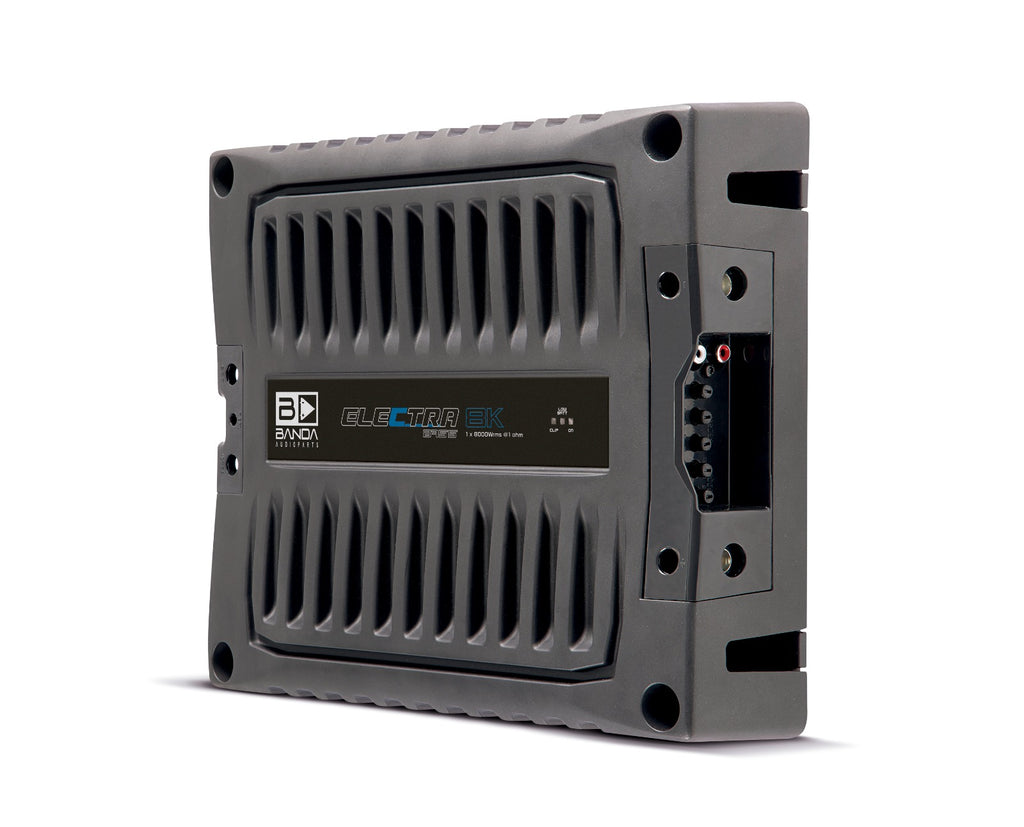

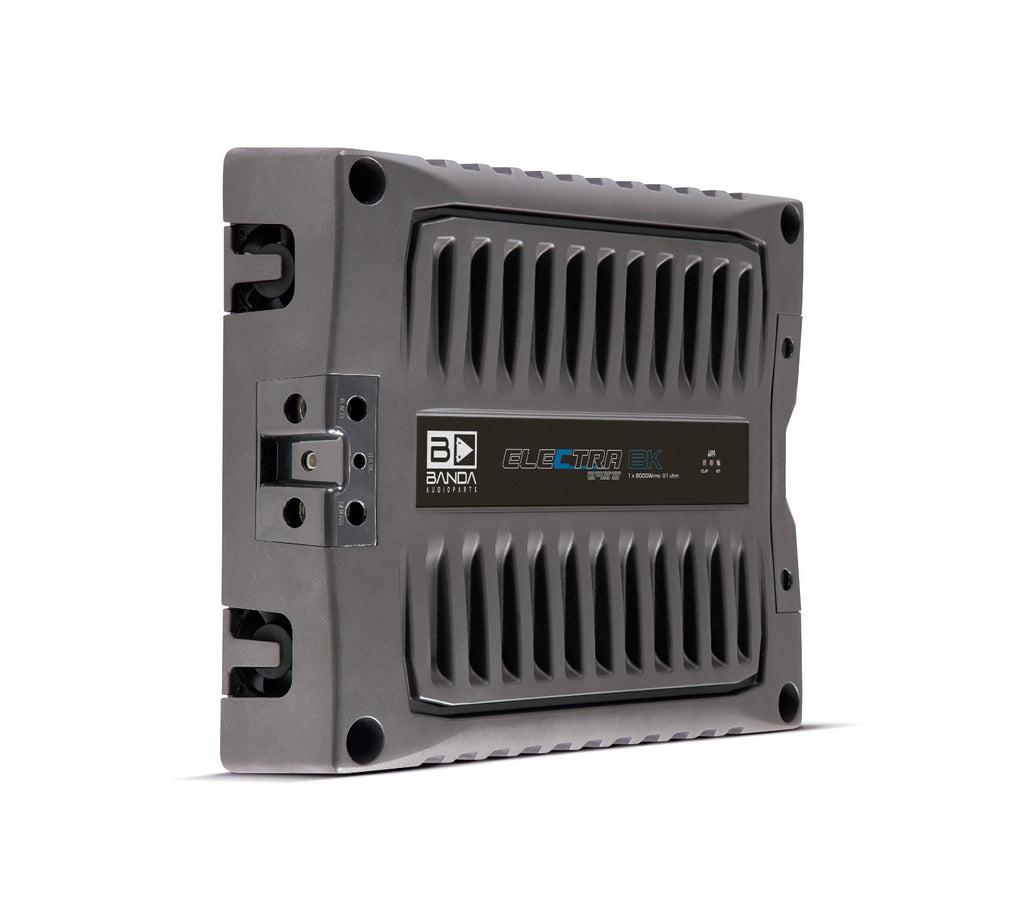

Banda Electra Bass 8K - 1Ω |
|
|
Total Power 14,4 @ 1 Ohm |
9000 WRMS |
|
Total Power 14,4 @ 2 Ohms |
7400 WRMS |
|
Total Power 12,6 @ 1 Ohm |
8000 WRMS |
|
Total Power 12,6 @ 2 Ohms |
5100 WRMS |
|
Efficiency @ 2 Ohms |
83% |
|
Efficiency @ 1 Ohm |
77% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<3% |
|
Input Sensitivity |
200mV - 8V |
|
SNR |
80dB |
|
Frequency Response |
16Hz - 500Hz [-3DB] |
| Bass Bosst @ 45Hz |
Variable 30Hz - 80Hz +12dB |
|
HPF (High Pass Filter) |
16Hz - 120Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Low Pass Filter) |
50Hz - 600Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
1x 450 A |
|
Current at Rest |
~3,0 A |
|
Average Current Draw (Sinusoidal) |
850 A |
|
Average Current Draw (Music) |
400 A |
|
Power Wire Gauge (min. Recommended) |
70mm² / 0 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 6mm² / 2 x 3 AWG |
|
Weight (Kg) |
6,3KG |
|
Height (mm) |
73 mm |
|
Width (mm) |
256 mm |
|
Depth (mm) |
317 mm |
|
Banda Electra Bass 8K - 2Ω |
|
|
Total Power 14,4 @ 2 Ohm |
9000 WRMS |
|
Total Power 14,4 @ 4 Ohms |
6800 WRMS |
|
Total Power 12,6 @ 2 Ohm |
8000 WRMS |
|
Total Power 12,6 @ 4 Ohms |
5100 WRMS |
|
Efficiency @ 4 Ohms |
88% |
|
Efficiency @ 2 Ohm |
79% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<3% |
|
Input Sensitivity |
200mV - 8V |
|
SNR |
80dB |
|
Frequency Response |
16Hz A - 500Hz [-3DB] |
| Bass Bosst @ 45Hz |
Variable 30Hz - 80Hz +12dB |
|
HPF (High Pass Filter) |
16Hz - 120Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Low Pass Filter) |
50Hz - 600Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
1x 450 A |
|
Current at Rest |
~3,0 A |
|
Average Current Draw (Sinusoidal) |
850 A |
|
Average Current Draw (Music) |
400 A |
|
Power Wire Gauge (min. Recommended) |
70mm² / 0 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 6mm² / 2 x 3 AWG |
|
Weight (Kg) |
6,3KG |
|
Height (mm) |
73 mm |
|
Width (mm) |
256 mm |
|
Depth (mm) |
317 mm |
