Beschrijving
|

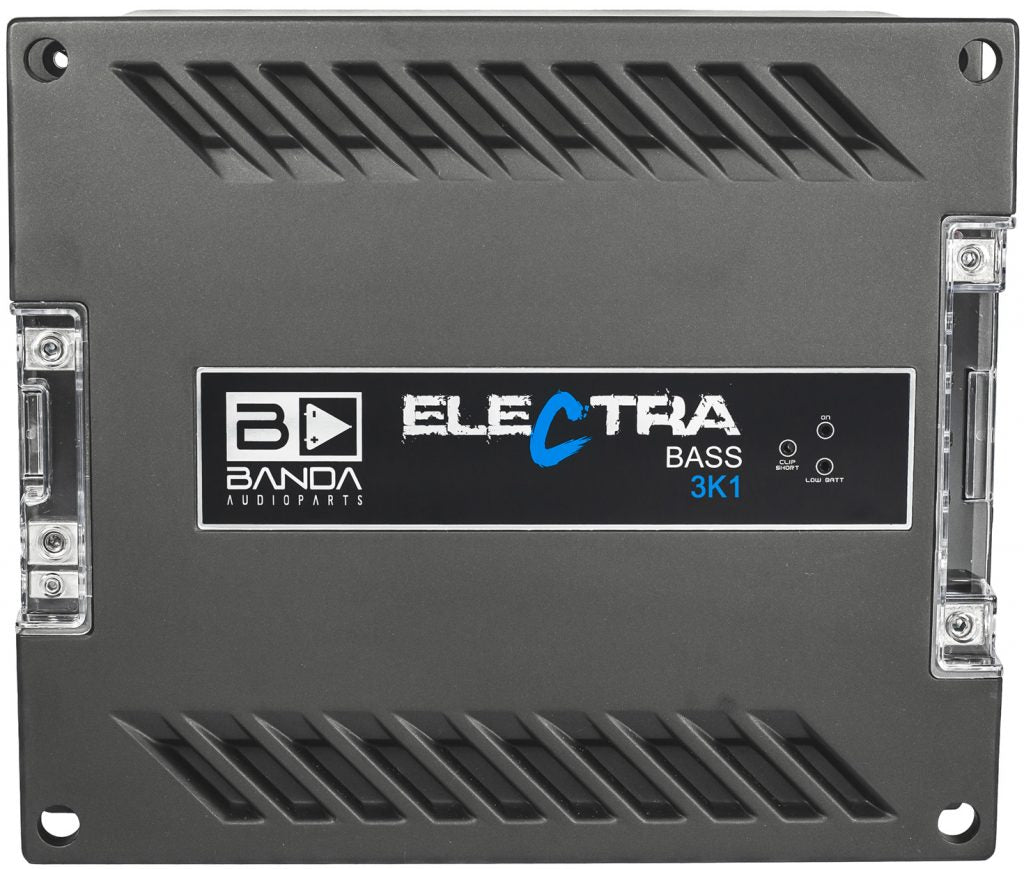

Banda Electra Bass 3K - 1Ω |
|
|
Total Power 14,4 @ 1 Ohm |
3600 WRMS |
|
Total Power 14,4 @ 2 Ohms |
2400 WRMS |
|
Total Power 12,6 @ 1 Ohm |
3000 WRMS |
|
Total Power 12,6 @ 2 Ohms |
1800 WRMS |
|
Efficiency @ 2 Ohms |
82% |
|
Efficiency @ 1 Ohm |
75% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
110mV – 8V |
|
SNR |
82dB |
|
Frequency Response (Key OFF) |
5 to 500Hz (-3dBs) |
|
Frequency Response |
20 to 500Hz (-3dBs) |
|
Bass Bosst @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20 to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80 to 500Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
150 A |
|
Current at Rest |
2 A |
|
Average Current Draw (Sinusoidal) |
320 A |
|
Average Current Draw (Music) |
160 A |
|
Power Wire Gauge (min. Recommended) |
21mm / 4 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 4mm / 2 x 11 AWG |
|
Weight (Lb) |
10,8 |
|
Height (in) |
2,4 |
|
Width (in) |
10,6 |
|
Depth (in) |
12,3 |
|

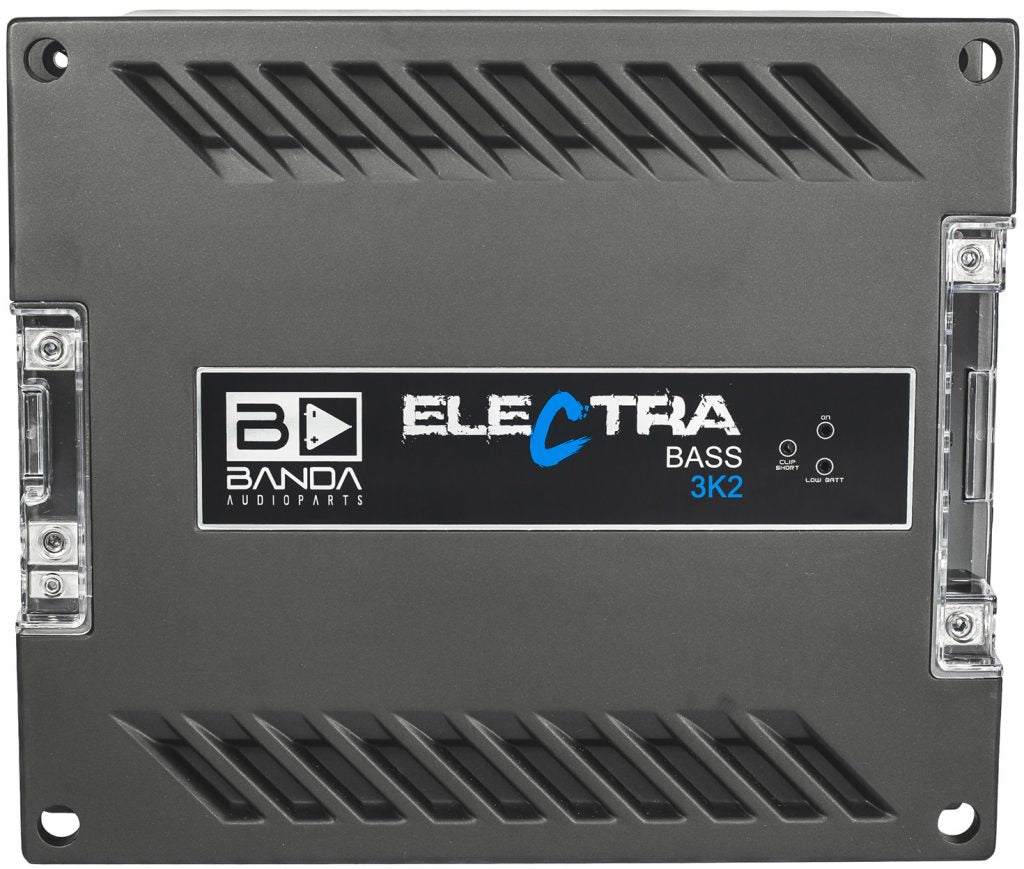

Banda Electra Bass 3K - 2Ω |
|
|
Total Power 14,4 @ 2 Ohms |
3700 WRMS |
|
Total Power 14,4 @ 4 Ohms |
2300 WRMS |
|
Total Power 12,6 @ 2 Ohms |
3000 WRMS |
|
Total Power 12,6 @ 4 Ohms |
1700 WRMS |
|
Efficiency @ 4 Ohms |
84% |
|
Efficiency @ 2 Ohms |
80% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
140mV – 8V |
|
SNR |
86dB |
|
Frequency Response (Key OFF) |
5 to 500Hz (-3dBs) |
|
Frequency Response |
20 to 500Hz (-3dBs) |
|
Bass Bosst @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20 to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80 to 500Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
150 A |
|
Current at Rest |
2 A |
|
Average Current Draw (Sinusoidal) |
315 A |
|
Average Current Draw (Music) |
155 A |
|
Power Wire Gauge (min. Recommended) |
21mm / 4 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 4mm / 2 x 11 AWG |
|
Weight (Lb) |
10,8 |
|
Height (in) |
2,4 |
|
Width (in) |
10,6 |
|
Depth (in) |
12,3 |
