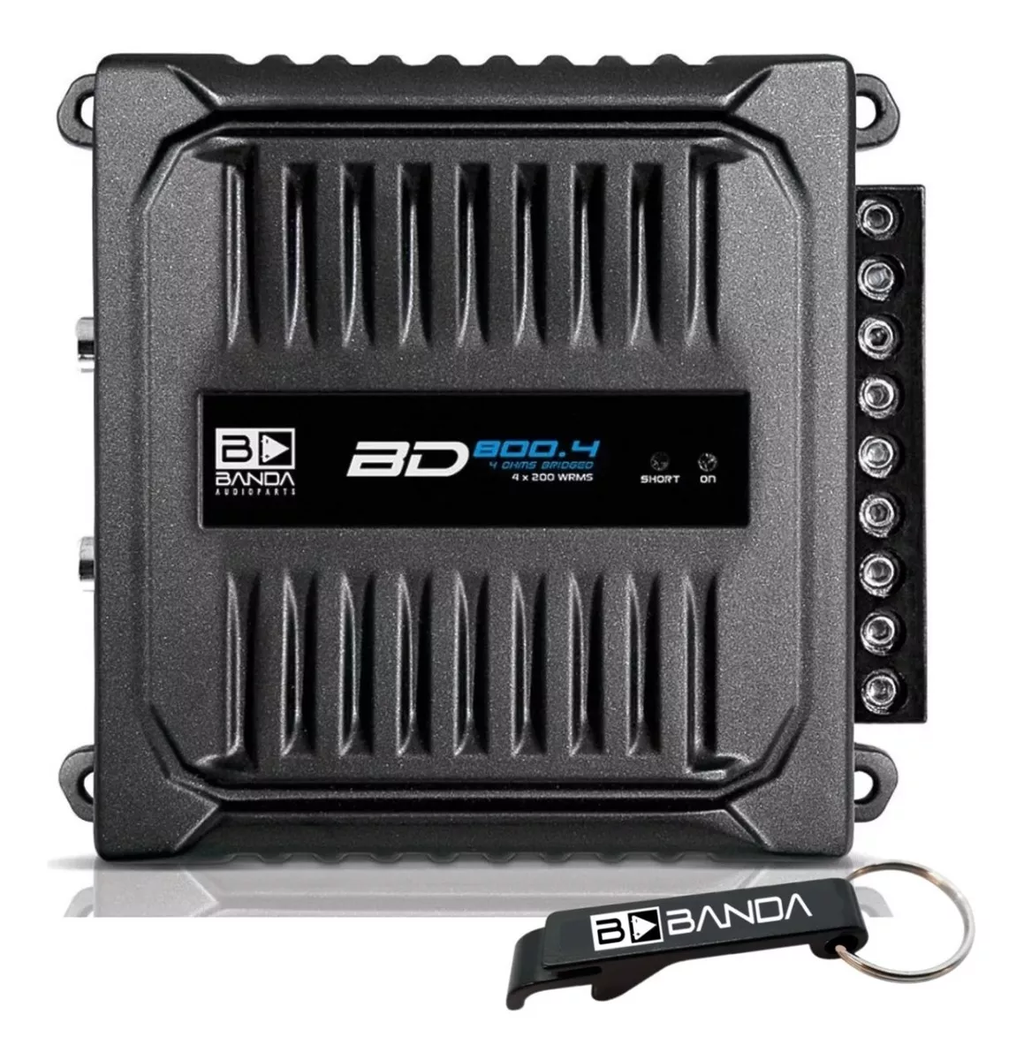

Banda BD 800.4 - 2Ω |
Klik hier voor de handleiding |
|
Total Power 14,4 @ 1 Ohm |
NVT |
|
Total Power 14,4 @ 2 Ohms |
4x 230 WRMS |
|
Total Power 14,4 @ 4 Ohms |
4x 150 WRMS |
|
Total Power 14,4 Bridge @ 4 Ohms |
2x 460 WRMS |
|
Total Power 12,6 @ 1 Ohm |
NVT |
|
Total Power 12,6 @ 2 Ohm |
4x 200 WRMS |
|
Total Power 12,6 @ 4 Ohms |
4x 120 WRMS |
|
Total Power 12,6 Bridge @ 4 Ohms |
2x 400 WRMS |
|
Efficiency @ 2 Ohms |
78% |
|
Efficiency @ 4 Ohm |
82% |
|
Input Voltage |
9 – 16V |
|
Input Impedance |
47K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
180mV - 3,4V |
|
SNR |
85dB |
|
Frequency Response |
20Hz A - 22kHz [-3dBs] |
|
Recommended Fuse |
40 A |
|
Current at Rest |
~700 mA |
|
Average Current Draw (Sinusoidal) |
80 A |
|
Average Current Draw (Music) |
40 A |
|
Power Wire Gauge (min. Recommended) |
1x 10mm² / 9 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 1,5mm² / 2 x 15 AWG |
|
Weight (kg) |
0,78kg |
|
Height (mm) |
116mm |
|
Width (mm) |
127mm |
|
Depth (mm) |
53mm |
