Klik hier voor de SD 8000.1 XP (hogere kwaliteit mosfets, grotere power supply section, tiffany rca, efficiënter en robuuster in alle aspecten vergleken met de EVO 5 componenten)
Klik hier voor de handleiding - Download hier de 1kHz test tone
-
-

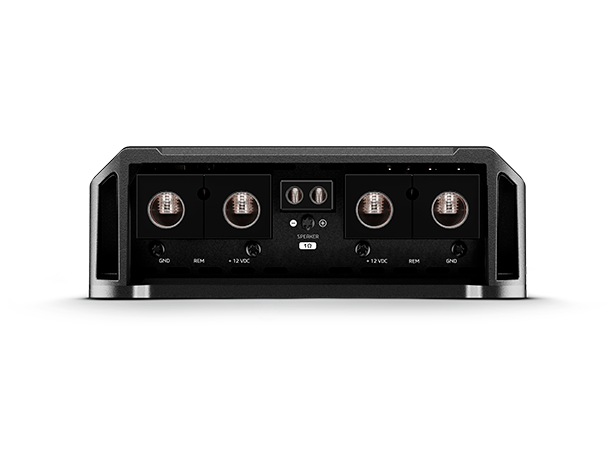

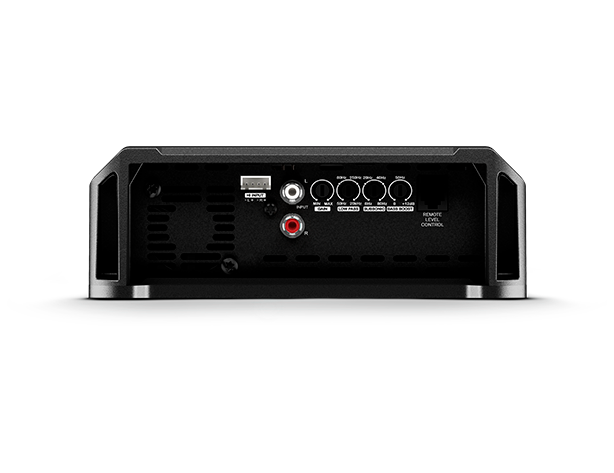

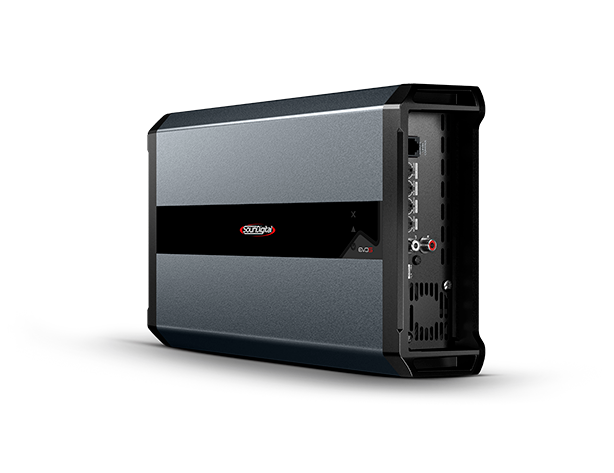

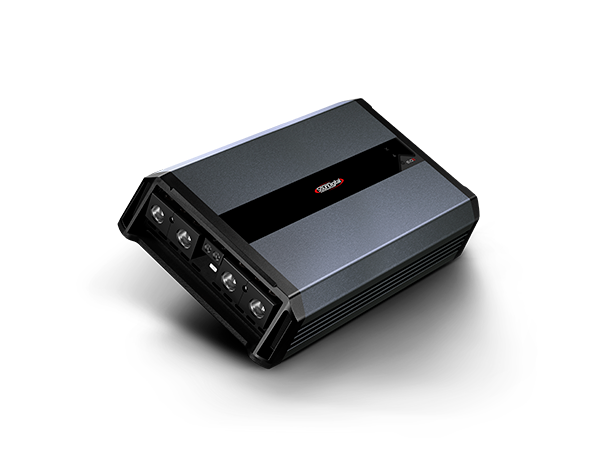

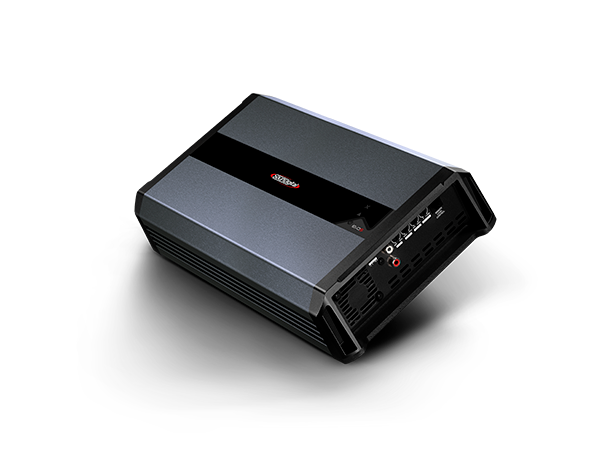

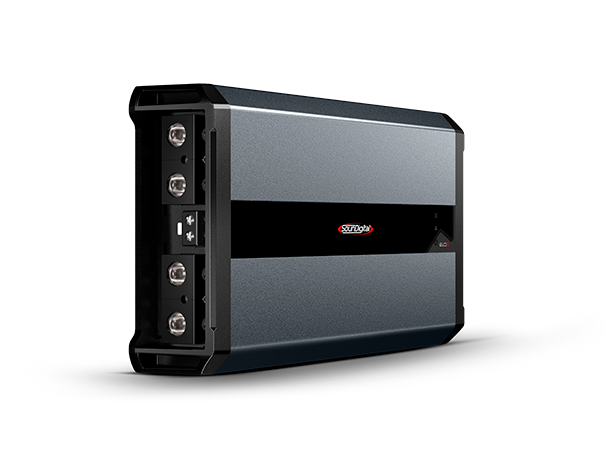

SD 8000.1 EVO 5 - 1Ω
Power @ 4Ω: 1 X 3844 WRMS
Power @ 2Ω: 1 X 5360 WRMS
Power @ 1Ω: 1 X 8000 WRMS -
SD 8000.1 EVO 5 - 2Ω
Power @ 4Ω: 1 X 5360 WRMS
Power @ 2Ω: 1 X 8000 WRMS
Power @ 1Ω: N/A -
Response frequency (-3dB): 8Hz~20kHz
-
Subsonic filter (12dB/octave) 8Hz ~ 80Hz
-
Low pass filter (12dB/octave): 50Hz~20kHz
-
Bass Boost: 0dB ~ 12dB @ 50Hz
-
Supply voltage: 9V~16V
-
Signal-to-noise ratio:
@ 1Ω: 92dB
@ 2Ω: 85dB -
Input Sensitivity (RCA): 0.2V ~ 2V
-
Input sensitivity (high input): 1.3V ~ 15V
-
Music consumption: 381A
-
Maximum consumption: 762A
-
Total efficiency: 80%
-
Damping factor (@100Hz nominal impedance): >1000
-
Power cable: 70mm² (00 AWG)
-
Speaker cable: 2 x 10mm² (7 AWG)
-
Recommended fuse (musical): 2 x 200A
-
Recommended battery (minimum for music use): 2 x 220Ah
-
Width: 18 cm
-
Length: 31 cm
-
Height: 6.32 cm
-
Weight: 3.99 kg
-
