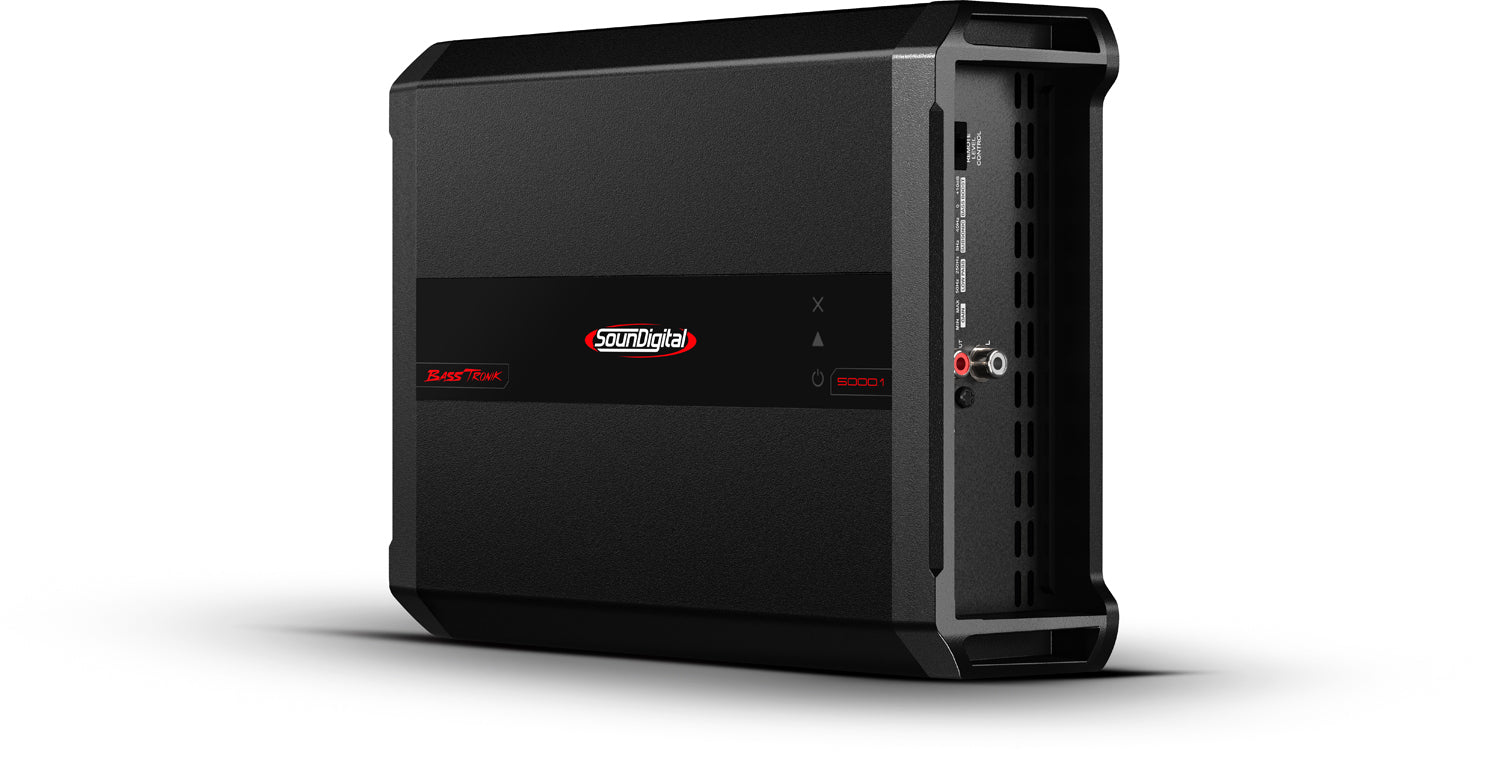

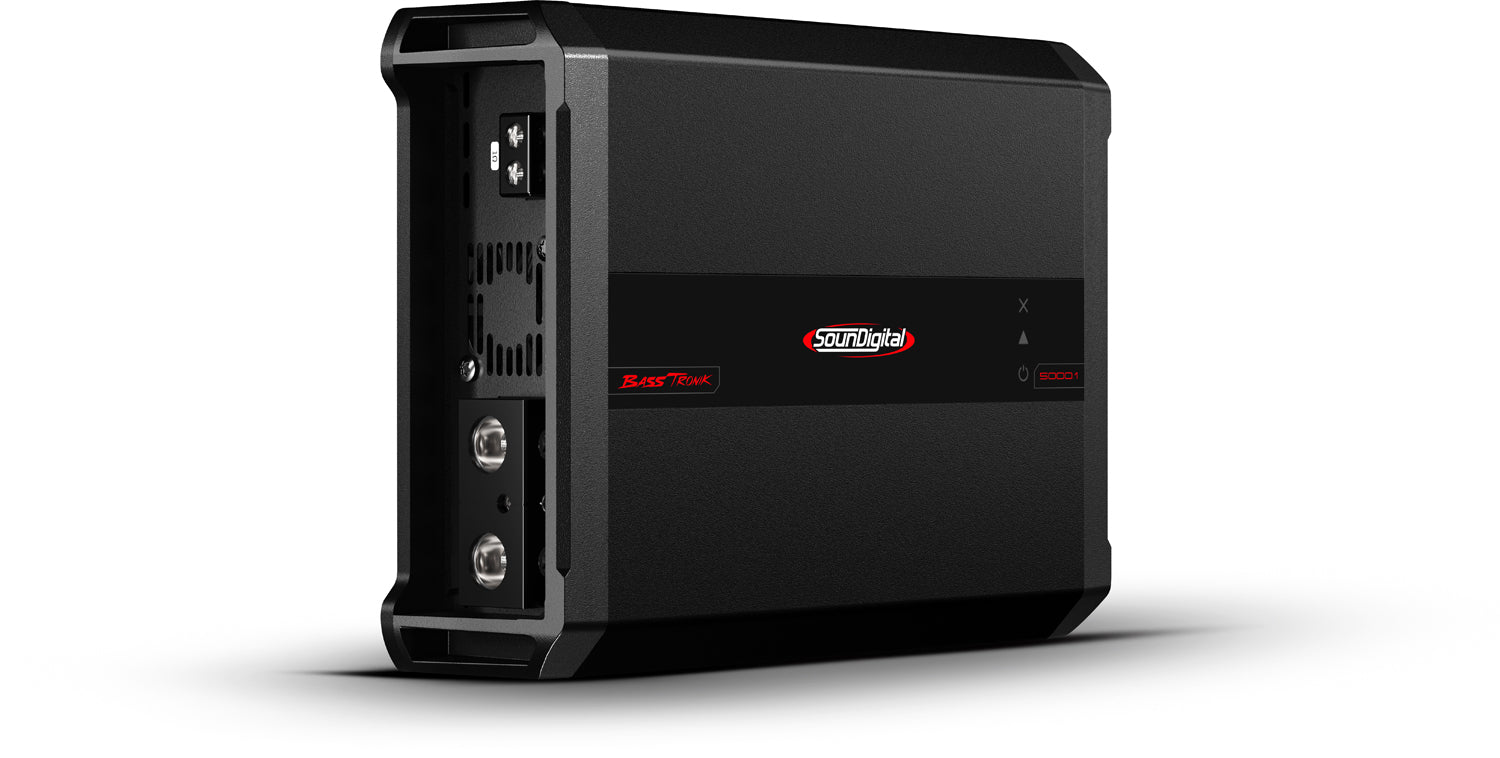

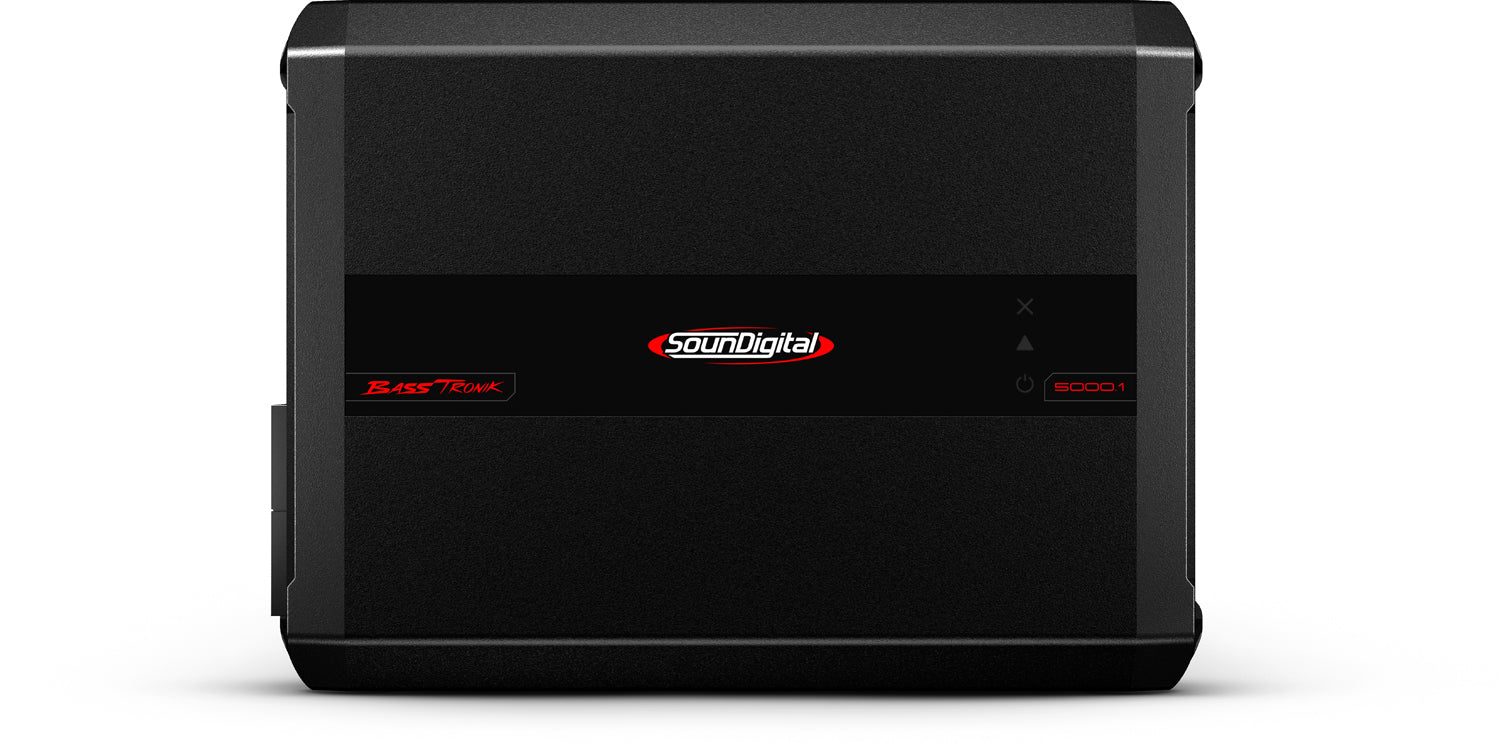

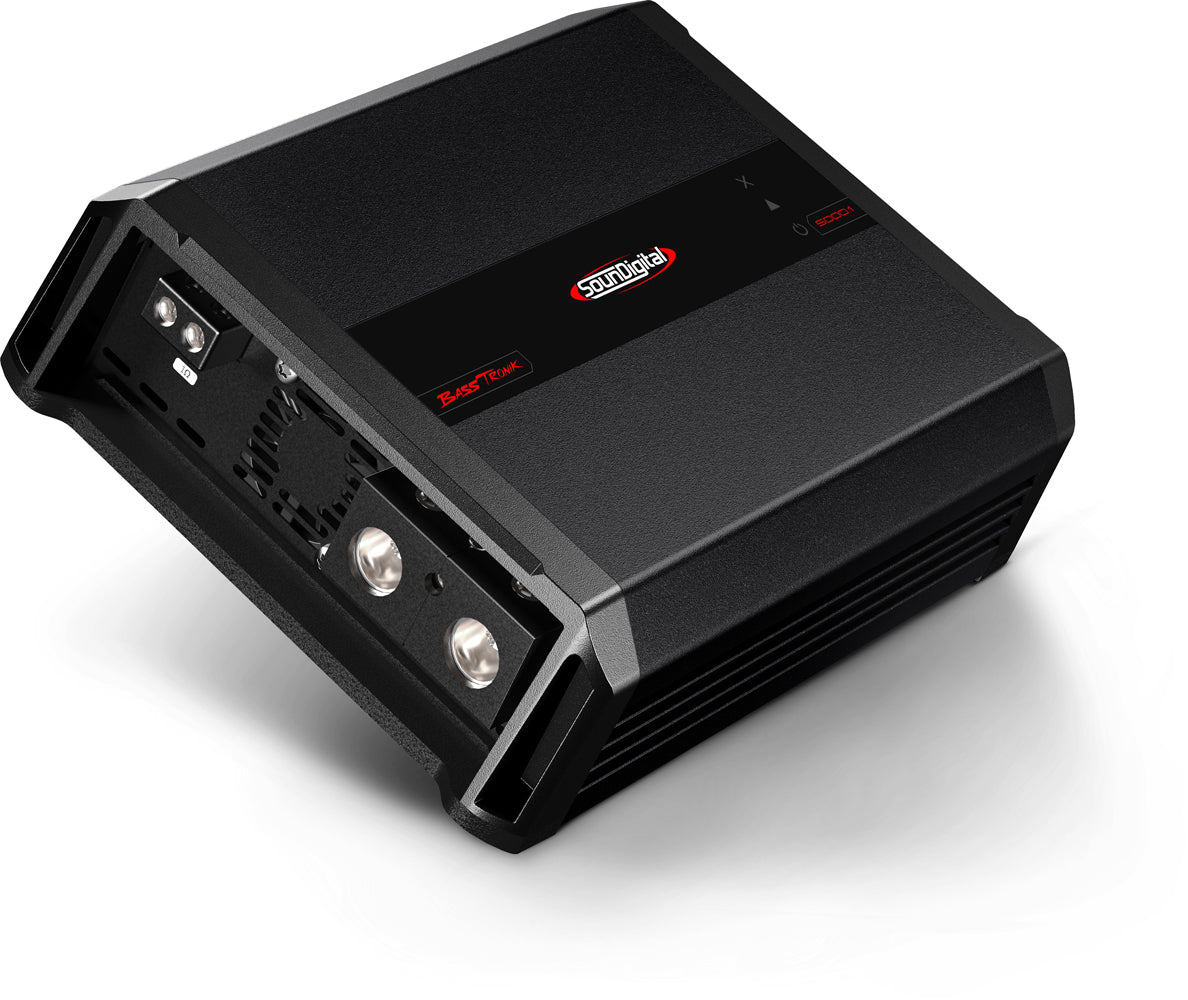

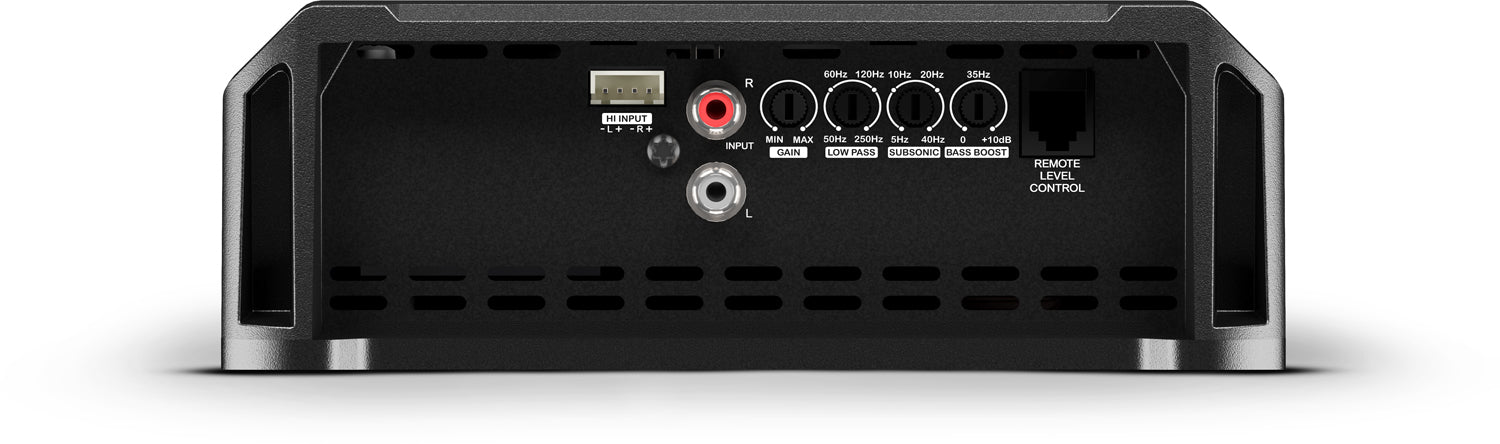

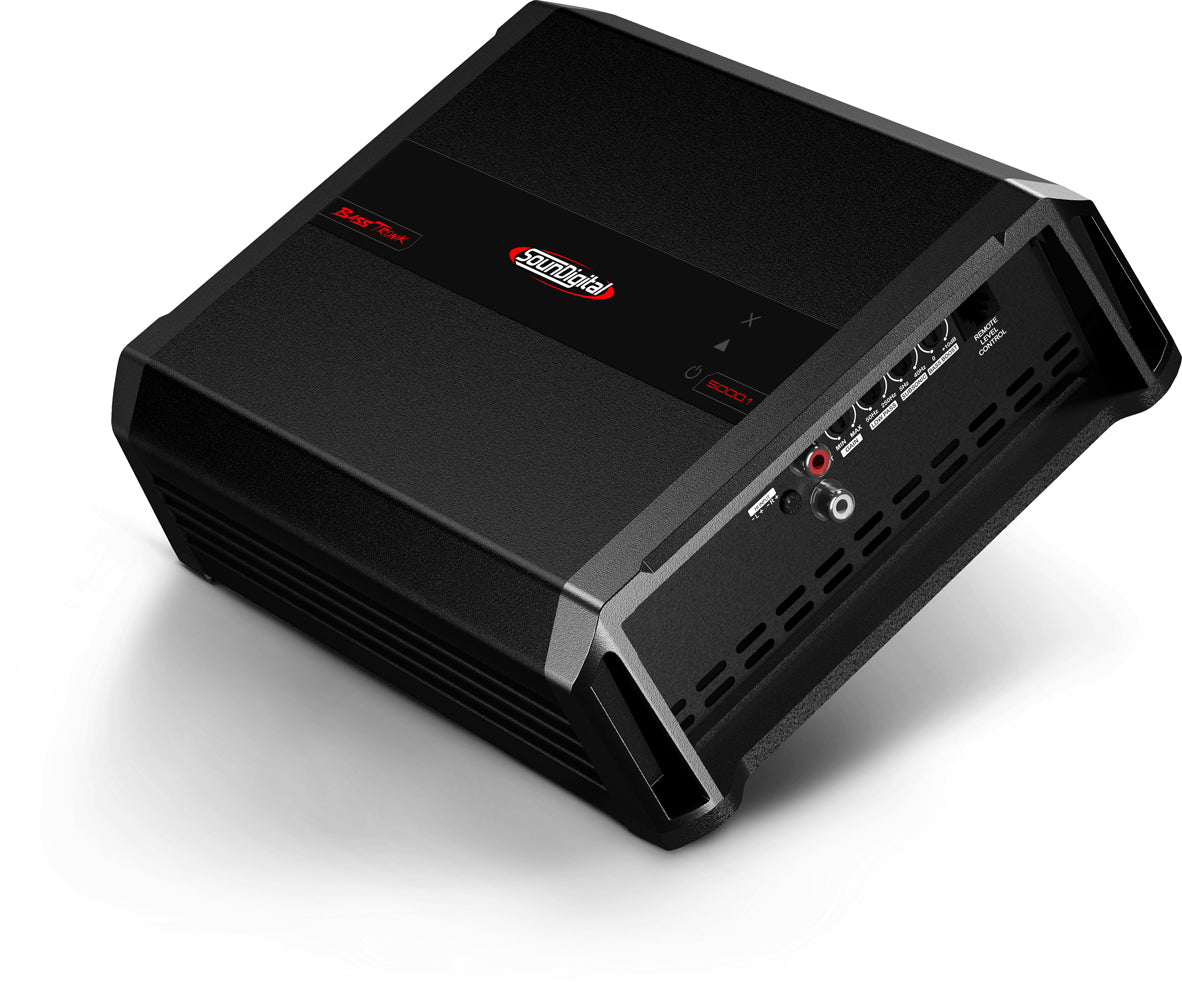

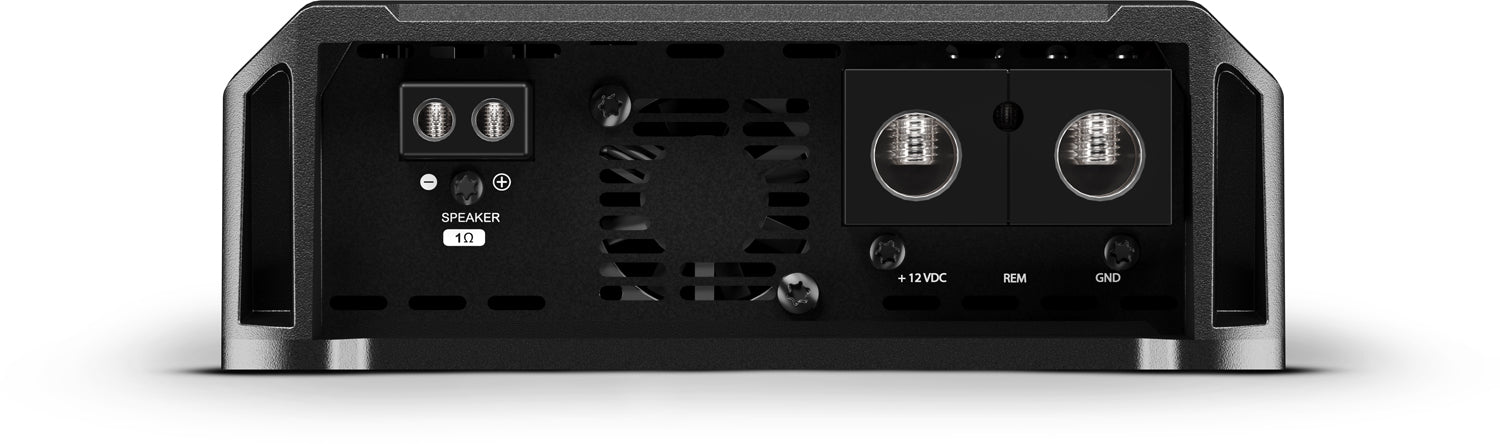

The BassTronik 5000.1 is an amplifier with an ultra-compact and modern design that delivers 5000W RMS of power in 1 channel.
The amplifier features exclusive and patented technologies, specially developed to guarantee precise, deep, and powerful sub-bass, making the sound experience cleaner and more faithful, as well as offering exceptional performance and efficiency even in the most ambitious projects.
-
SD BassTronik 5000.1 - 1Ω
Power @ 4Ω: 1 x 2100W
Power @ 2Ω: 1 x 3300W
Power @ 1Ω: 1 x 5000W
-
SD BassTronik 5000.1 - 2Ω
Power @ 4Ω: 1 x 3300W
Power @ 2Ω: 1 x 5000W
Power @ 1Ω: 1 x N/A -
Frequency response (-3dB):
5Hz ~ 250Hz
-
Subsonic filter (12dB/octave):
5Hz ~ 40Hz
-
Low-pass filter (12dB/octave):
50Hz ~ 250Hz
-
Bass reinforcement:
0dB ~ 10dB @ 35Hz
-
Supply voltage:
10V ~ 16V
-
Signal-to-noise ratio:
>100dB
-
Input sensitivity (RCA):
0.2V ~ 2V
-
Input sensitivity (High audio input):
1.5V ~ 15V
-
Music consumption:
2Ω: 239A
1Ω: 248A -
Power consumption with resistive load:
2Ω: 478A
1Ω: 496A -
Total efficiency:
2Ω: 83%
1Ω: 80% -
Damping factor (@100Hz nominal imp.):
>2000
-
Power cord:
50mm² (0 AWG)
-
Speaker cable:
2Ω: 6mm² (9 AWG)
1Ω: 10mm² (7 AWG) -
Remote cable:
1.5mm² (15 AWG)
-
Recommended fuse (for musical use):
250A
-
Recommended battery (minimum):
250Ah
-
Width:
18 cm
-
Length:
25 cm
-
Height:
6.32 cm
-
Weight:
3.00 kg
