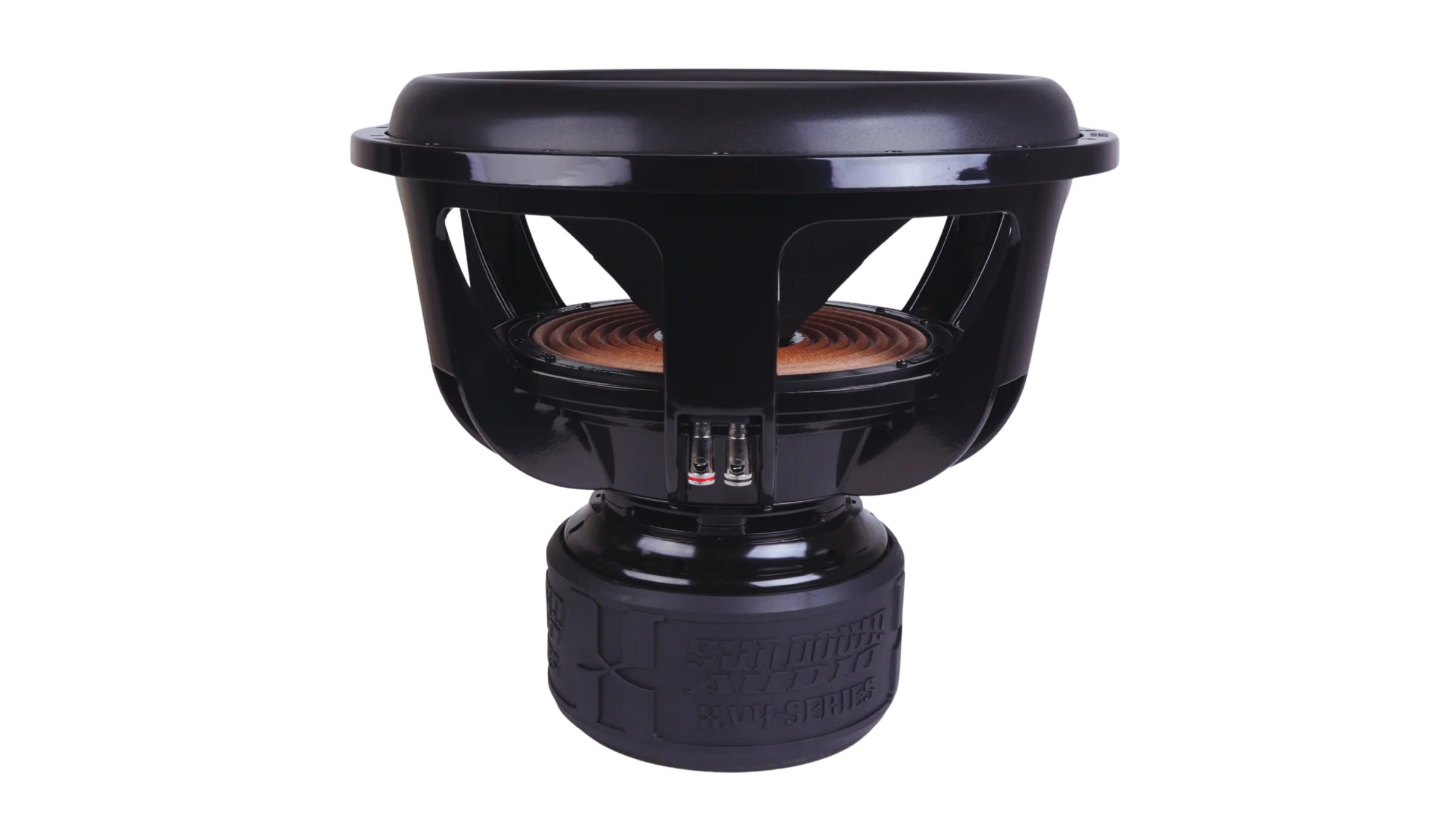

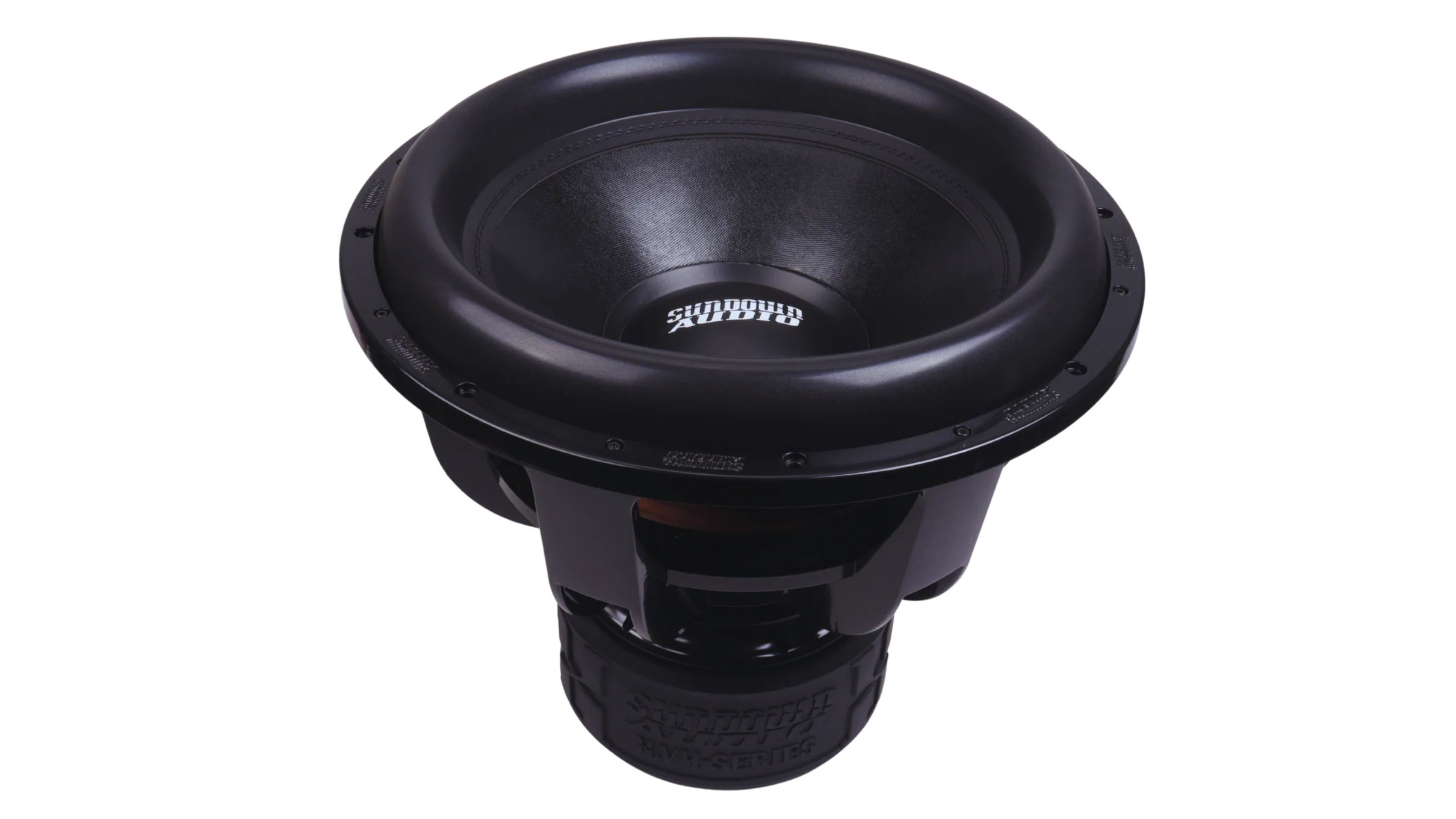

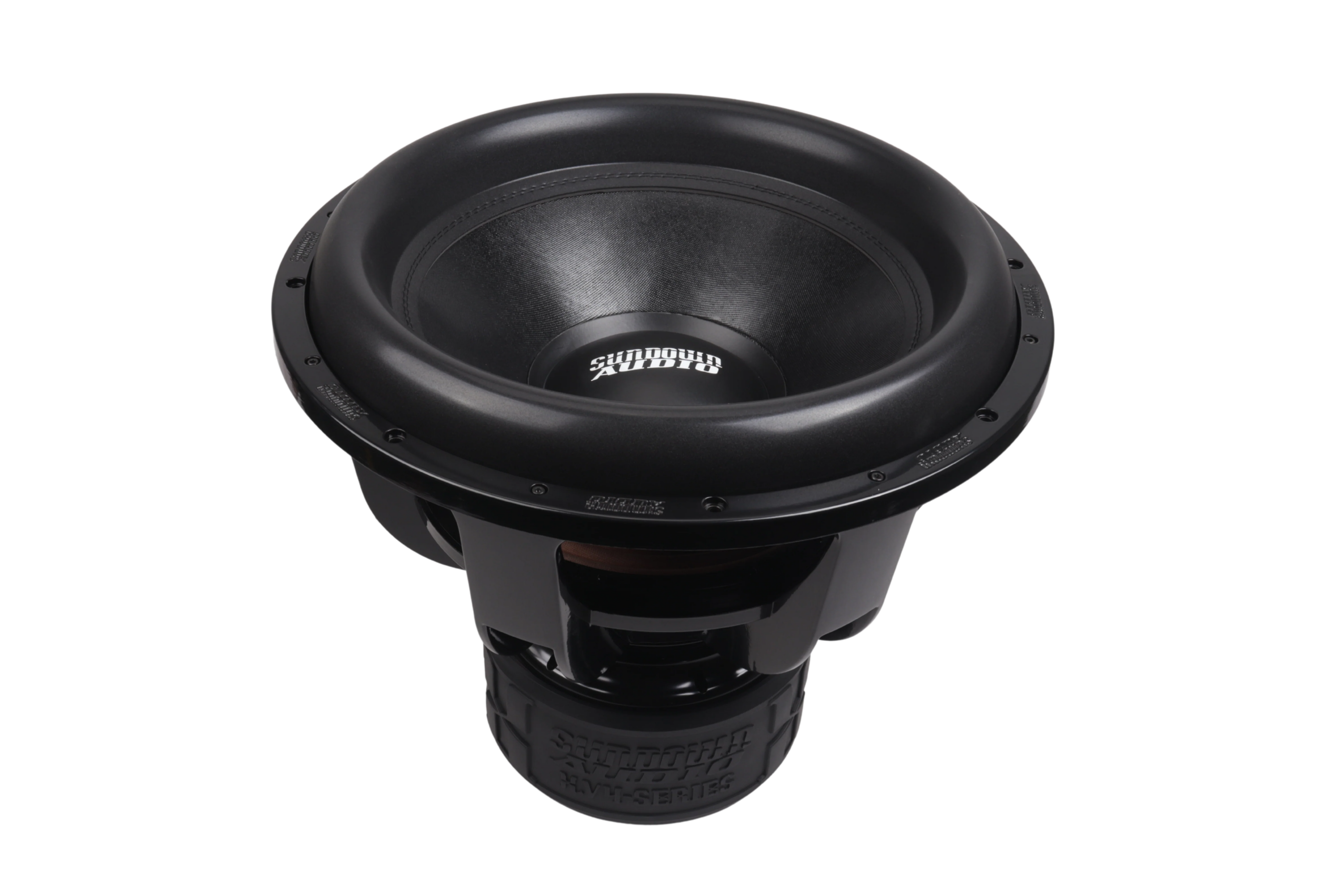

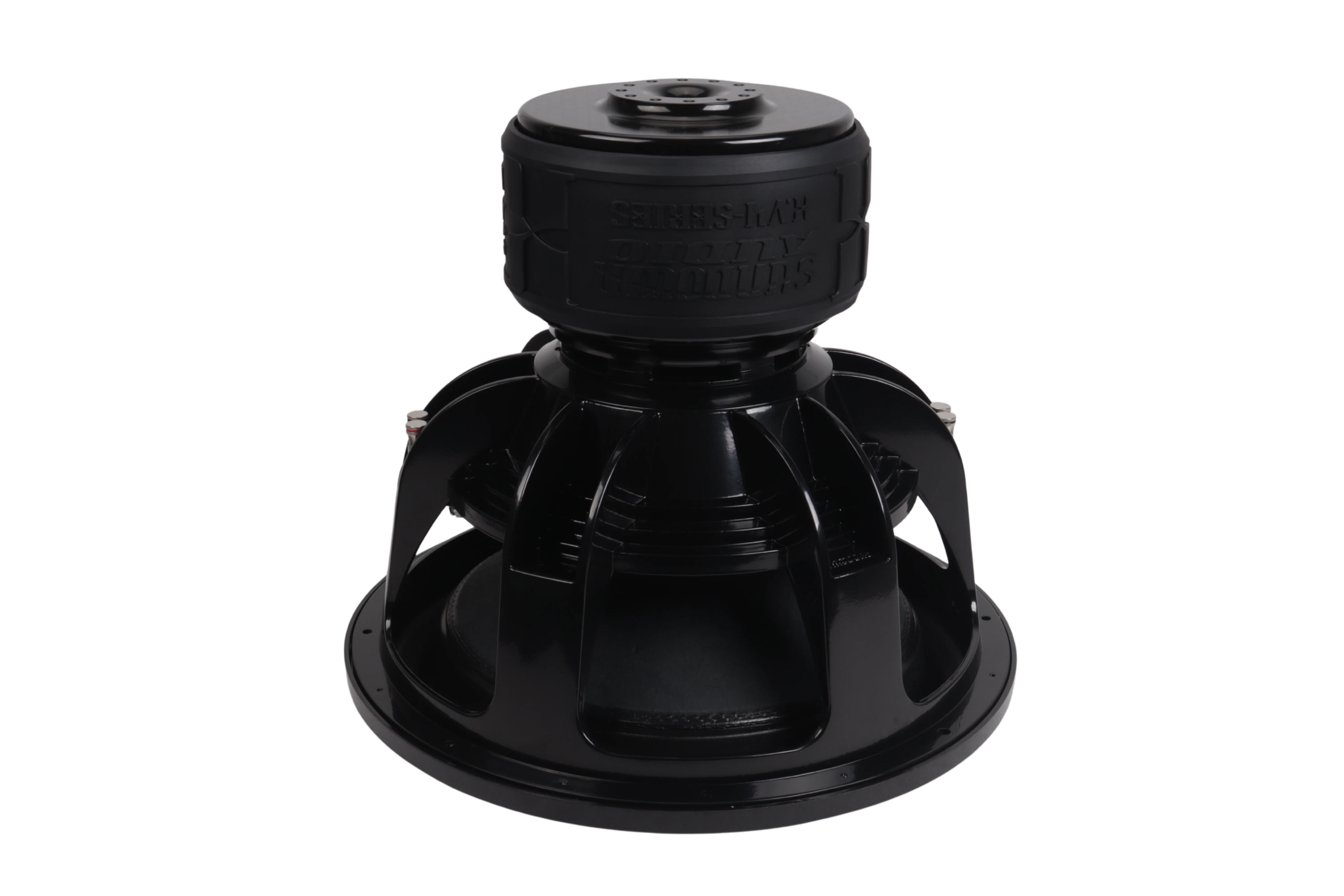

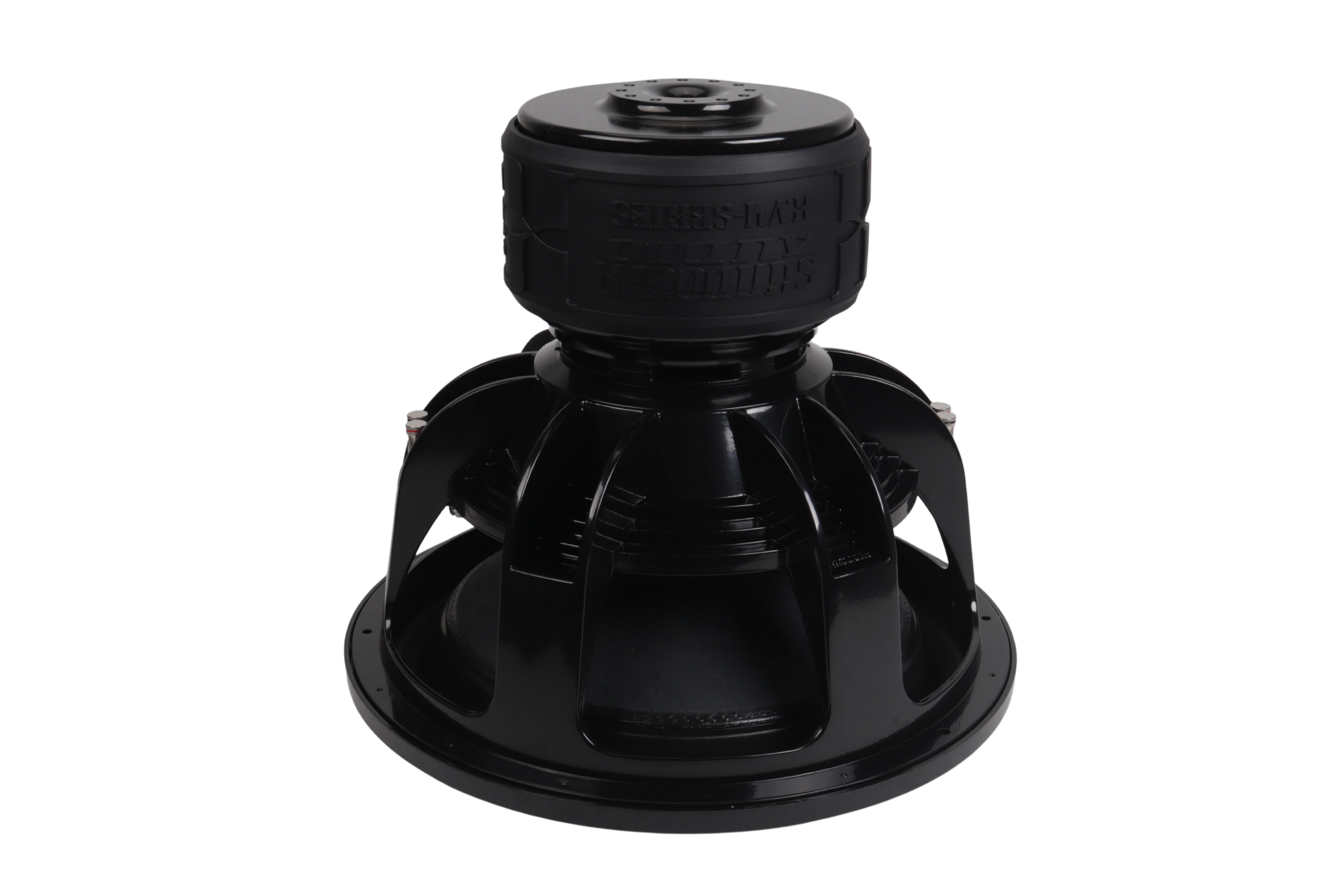

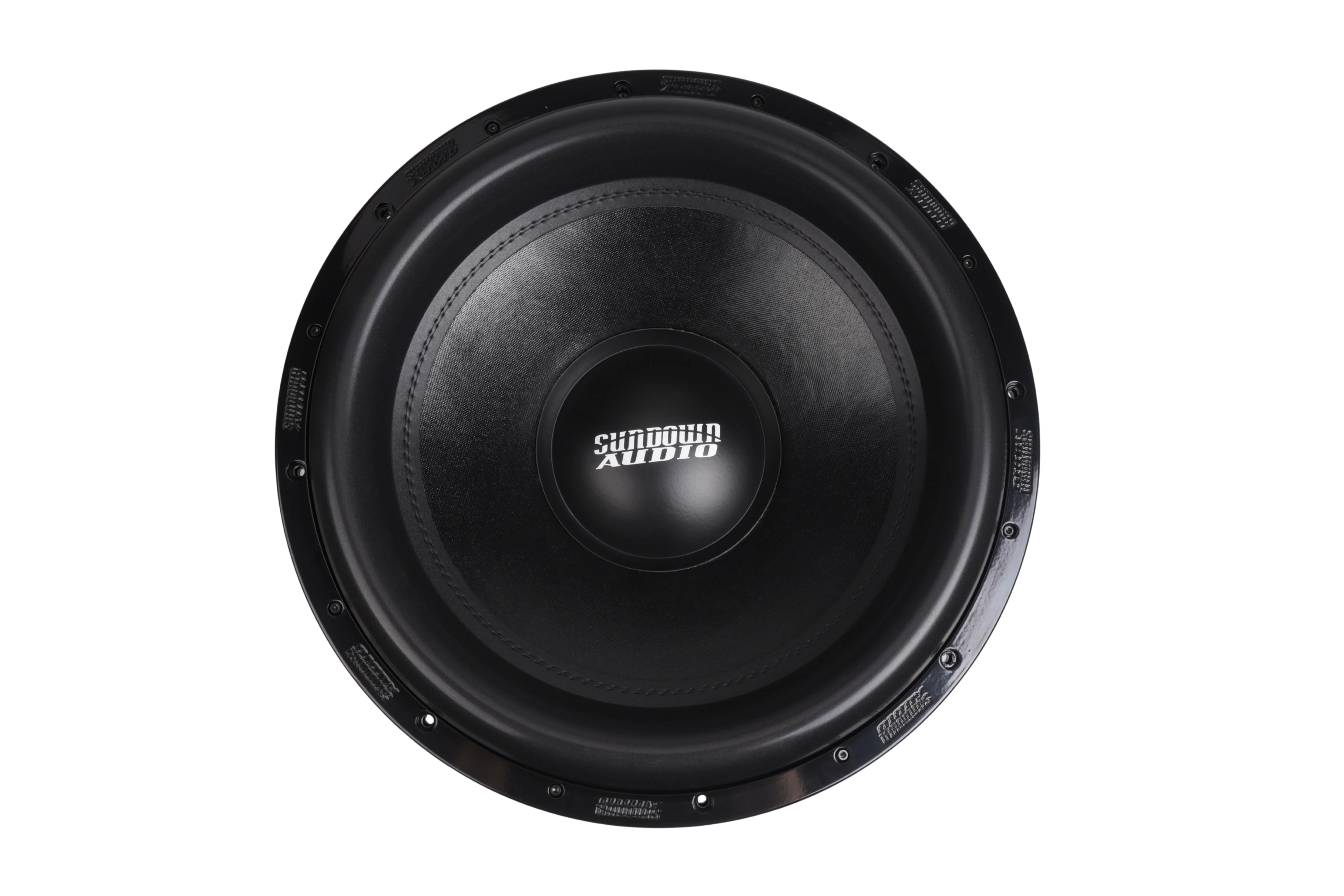

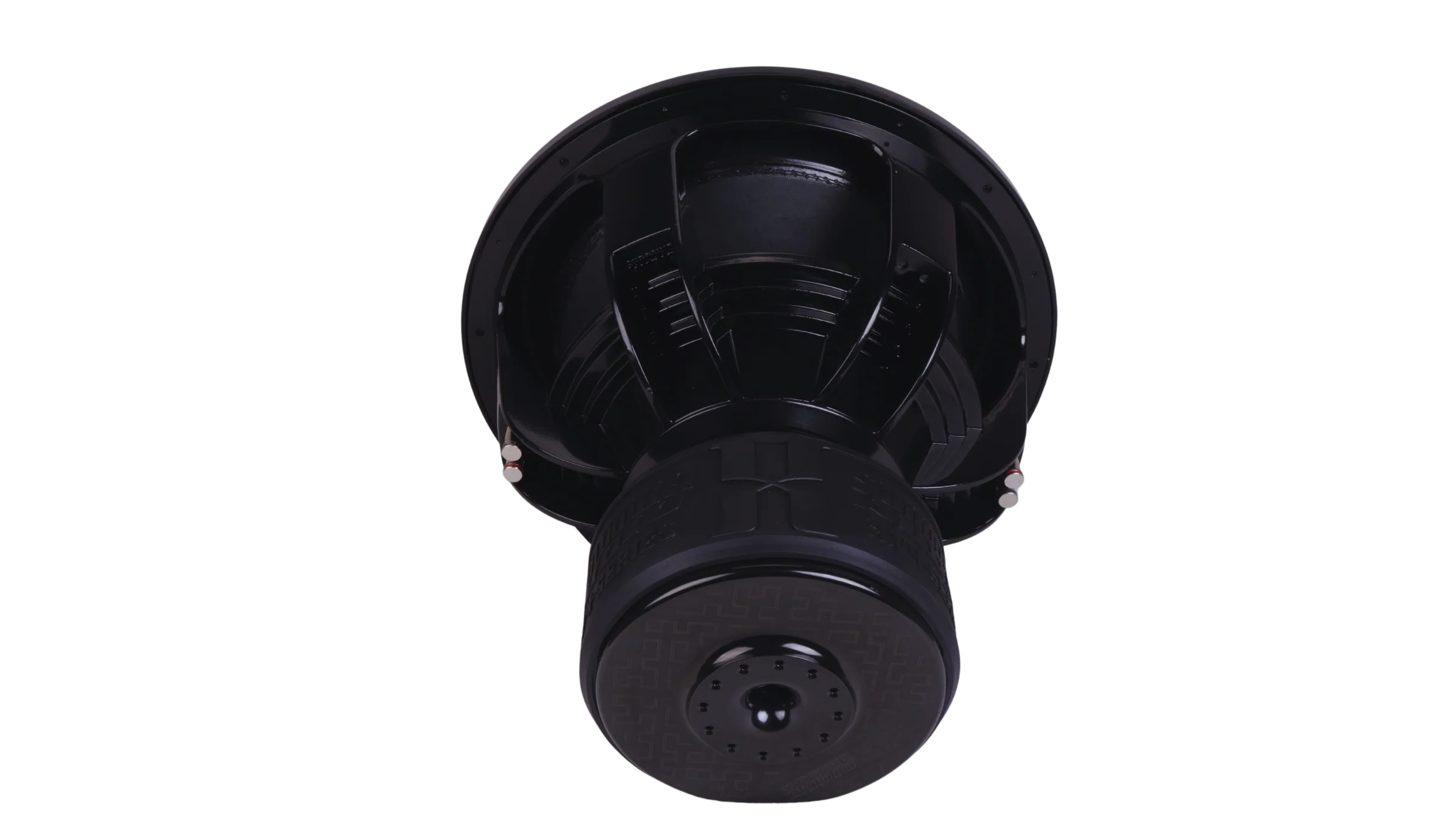

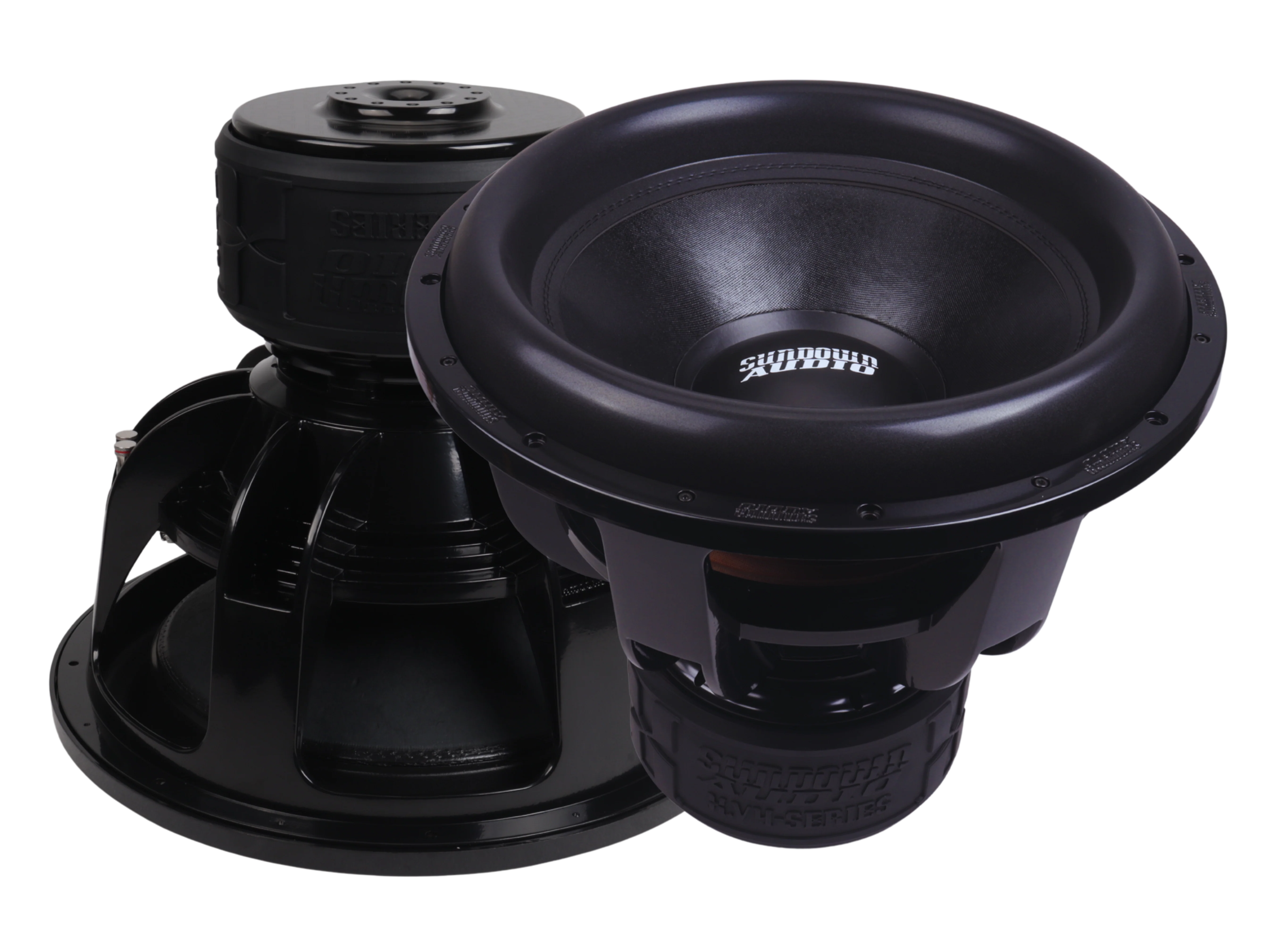

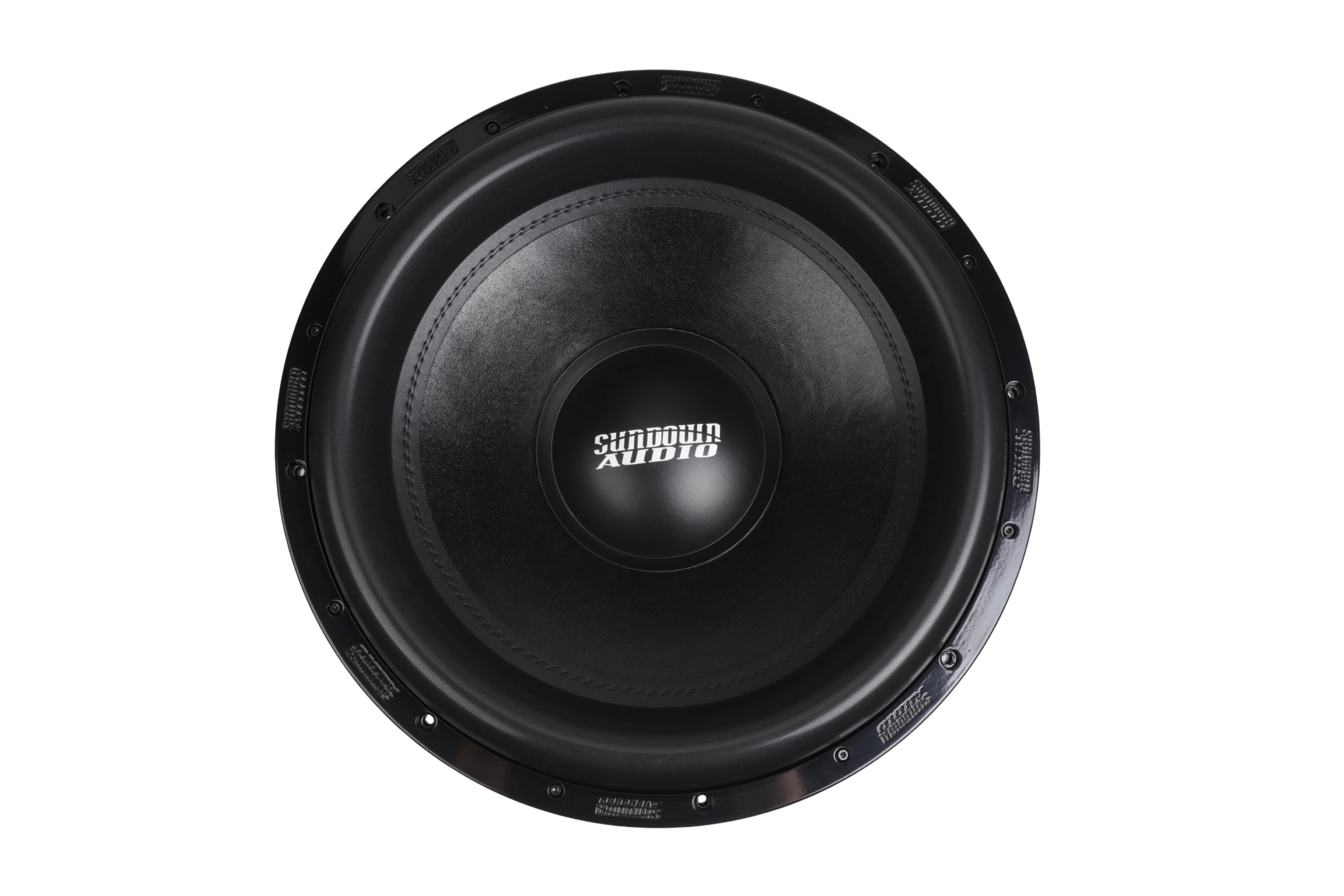

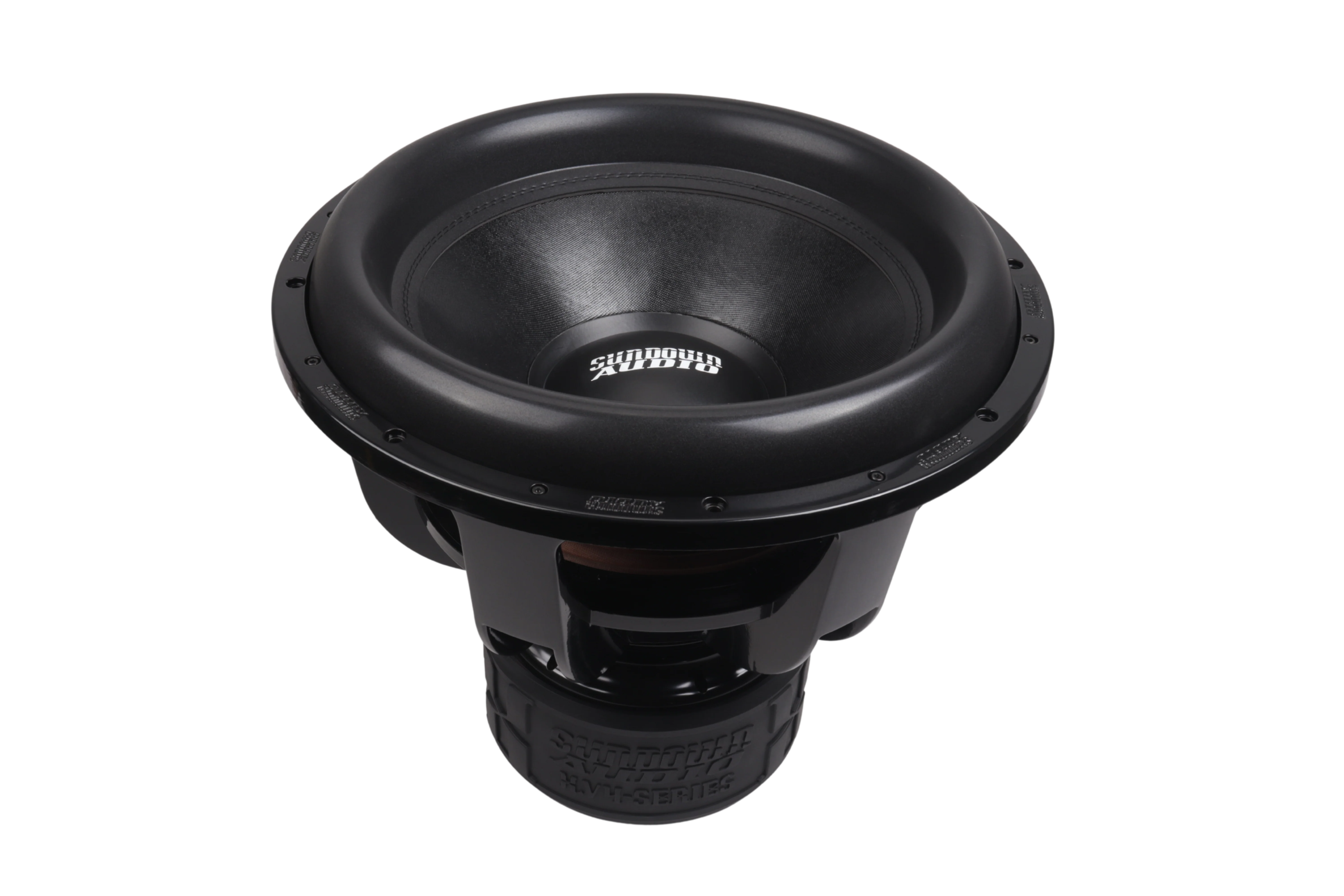

- The Sundown Xv4 18″ Subwoofer delivers unmatched power and control for serious bass enthusiasts. Built with high-grade X v.4 coils, this subwoofer is designed to handle up to 2750W RMS / 5500W peak power, ensuring maximum output without distortion.
- Its optimized design enhances air movement and cooling, providing long-lasting performance even under heavy use. The advanced motor structure and large cone area (SD 113.41) create powerful low-frequency response and clean sound reproduction.
- Perfect for sealed or ported enclosures, the Xv4 18″ gives you flexibility in setup and tuning — whether for SPL competition or everyday high-quality listening.
- Durable, reliable, and beautifully crafted, this subwoofer is the next-level upgrade your sound system deserves.
-
18″ Xv4 Series Subwoofer
-
2750W RMS / 5500W Peak Power
-
Dual 1-Ohm or Dual 2-Ohm Voice Coil Options
-
Precision-engineered X v.4 Coils for stability
-
Heavy-duty motor with 9.25″ diameter
-
Deep bass response with 30 mm Xmax
-
Sealed or ported enclosure compatibility
-
Recommended Port Tuning: 32 Hz
-
Built for extreme durability and clean sound
Specification Value RMS Power 2750 W Peak Power 5500 W Displacement 0.28 cu ft Mounting Depth 15″ Outside Diameter 18.42″ Cutout Diameter 16.69″ Motor Diameter 9.25″ Sealed Enclosure Not Recommended Ported Enclosure 7.00 cu ft Recommended Port Tuning 32 Hz Recommended Port Area 112 sq in 4th Order Sealed Side 3.0 cu ft 4th Order Ported Side 9.0 cu ft 4th Order Port Area 180 sq in 4th Order Port Length 8″ Xmax 30 mm SD (Cone Area) 113.41 RE (Ohms) 2.05 / 3.74 FS (Hz) 25.87 / 25.58 VAS (L) 93.67 Qes 0.63 / 0.55 Qms 4.13 / 4.03 Qts 0.54 / 0.84 BL (NA) 19.74 / 26.8 Mms 737.81 / 656.74 Sensitivity 86 / 87 dB T/S Specs RMS Power (D2)RMS Power (D1)Peak Power (D1)Peak Power (D2)RE D1 (Ohms)RE D2 (Ohms)FS D1 (Hz)FS D2 (Hz)VAS D1 (L)VAS D2 (L)Qes D1Qes D2Qms D1Qms D2Qts D1Qts D2BL D1 (NA)BL D2 (NA)Mms D1 (Grams)Mms D2 (Grams)Cms D1 (uM/N)Cms D2 (uM/N)Sens D1 (dB @ 1w/1m)Sens D2 (dB @ 1w/1m)Xmax D1Xmax D2Subwoofer Measurements Displacement (Inches)Depth (Inches)Cutout (Inches)Motor Diameter (Inches)Ported Enclosure Specs Ported Enclosure SizeRecommended Port AreaRecommended Port Tuning4th Order Enclosure Specs 4th Order Sealed Side4th Order Ported Side4th Order Port Area4th Order Port Length
