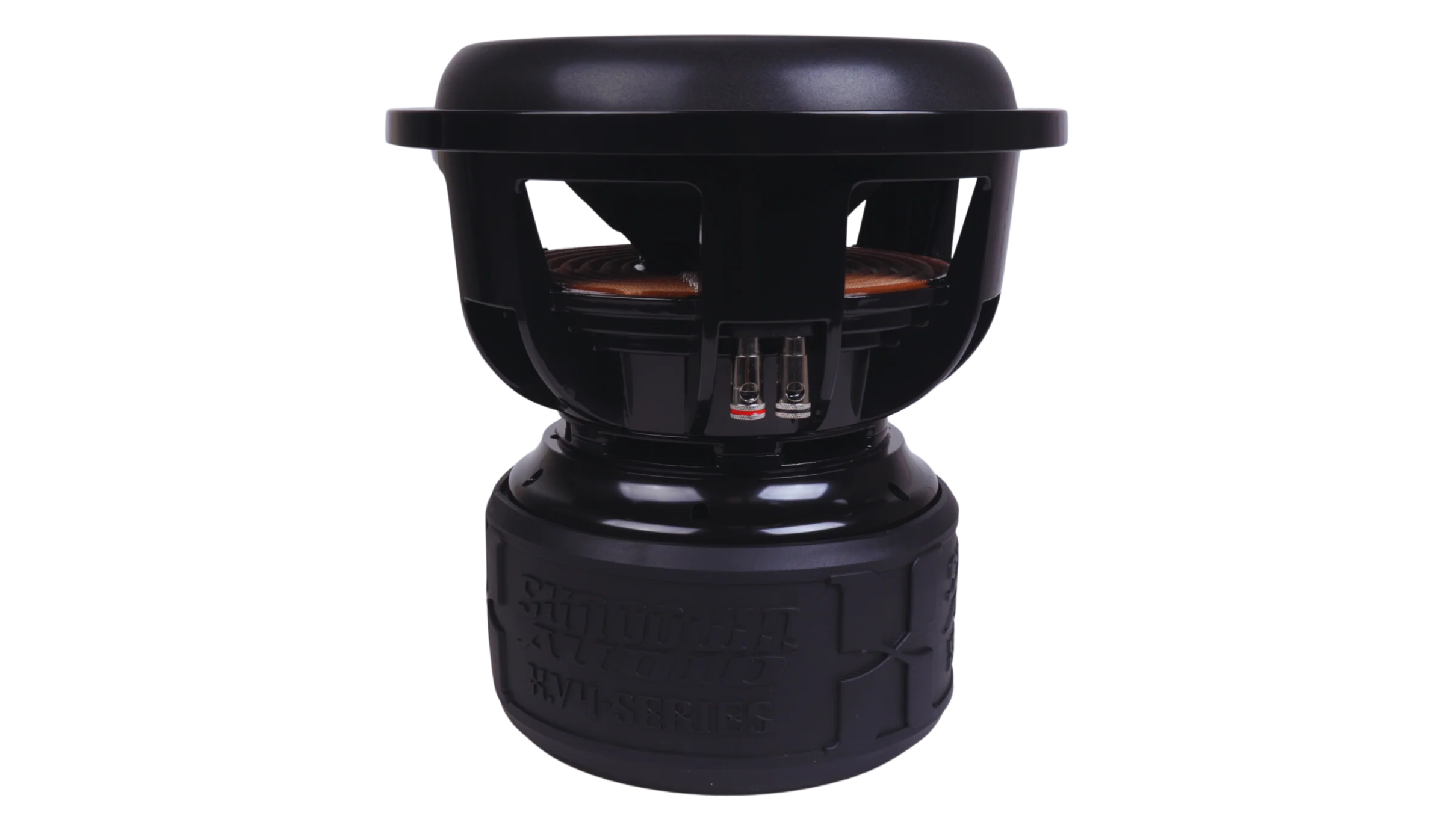

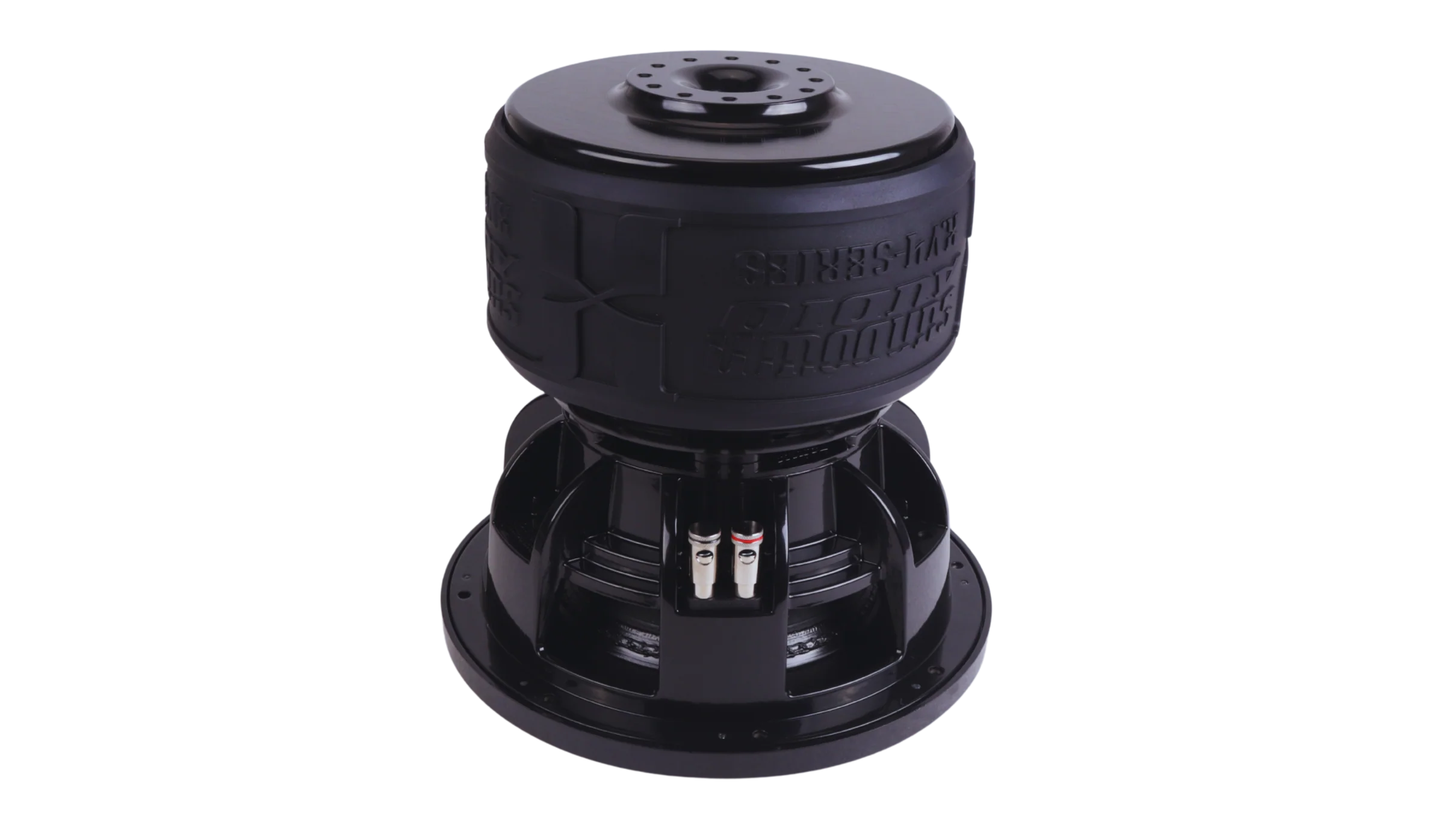

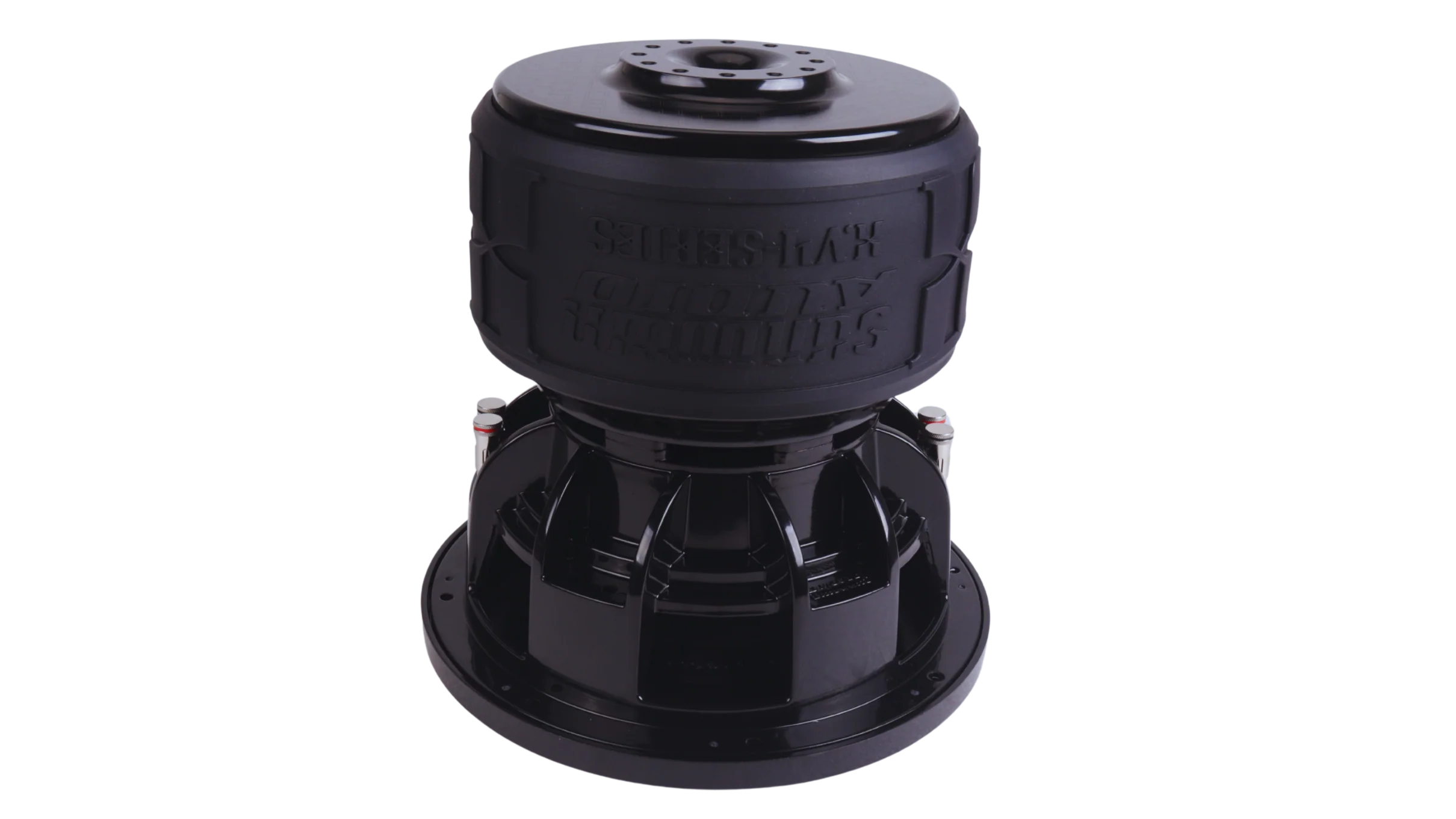

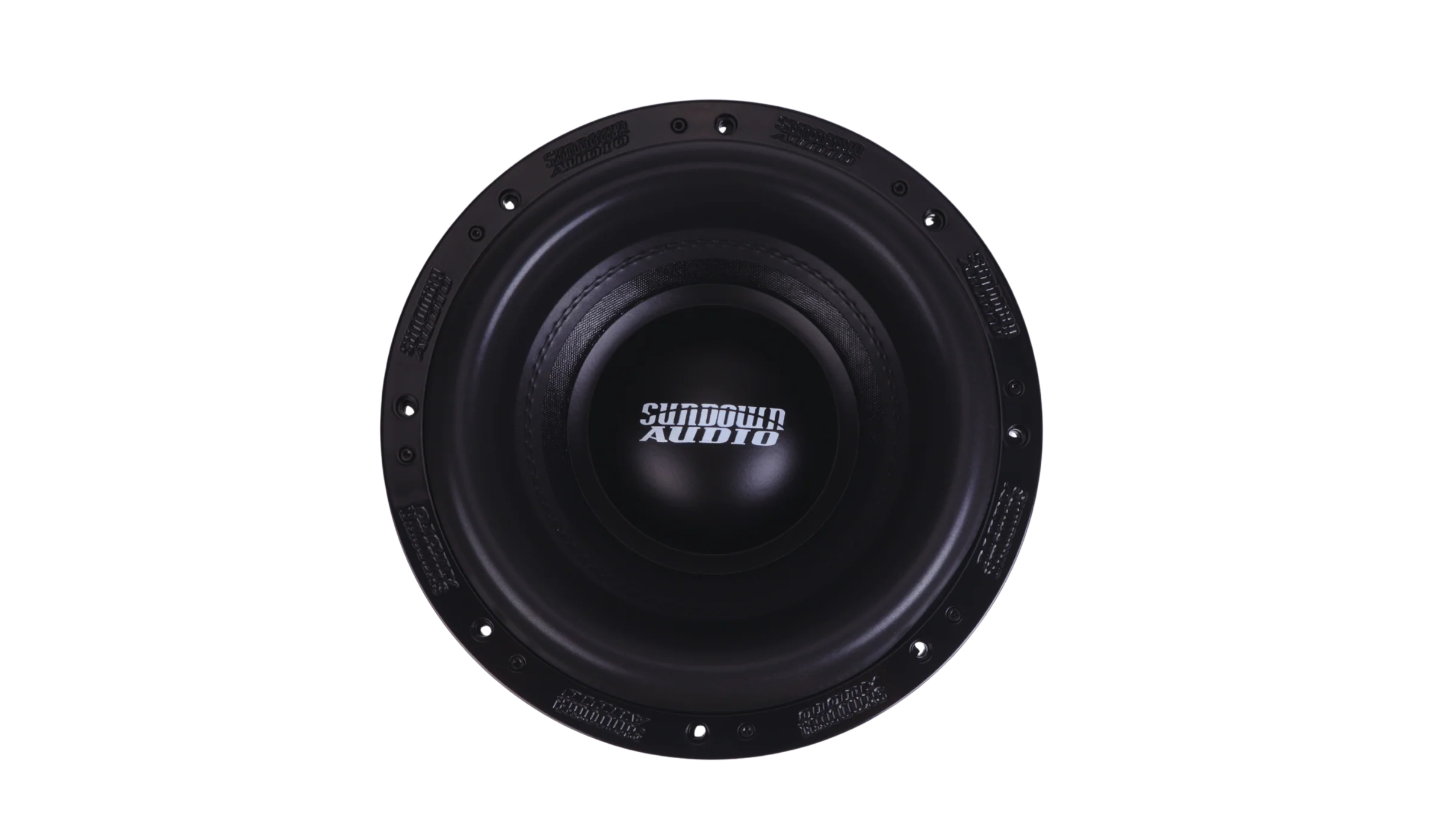

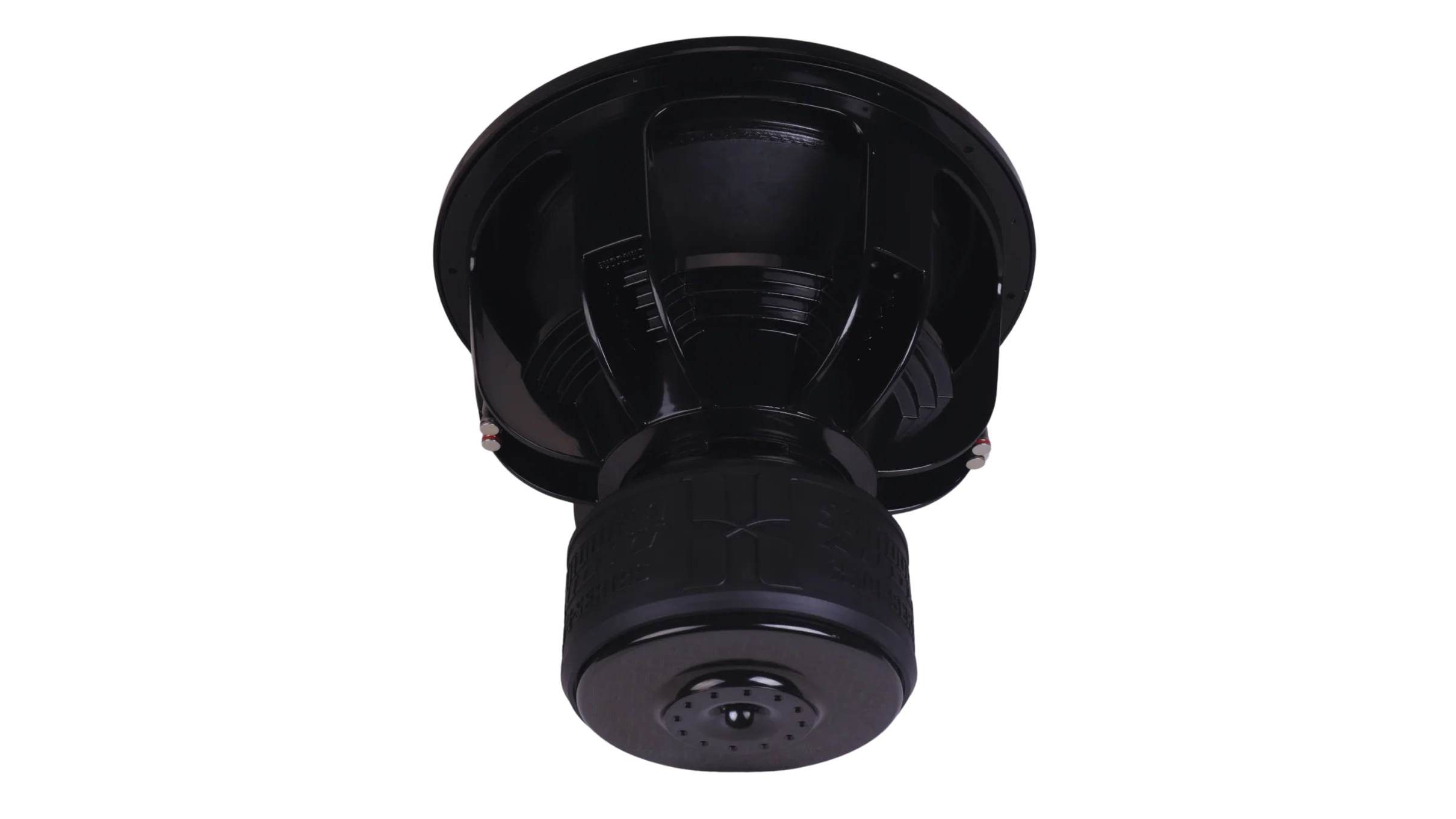

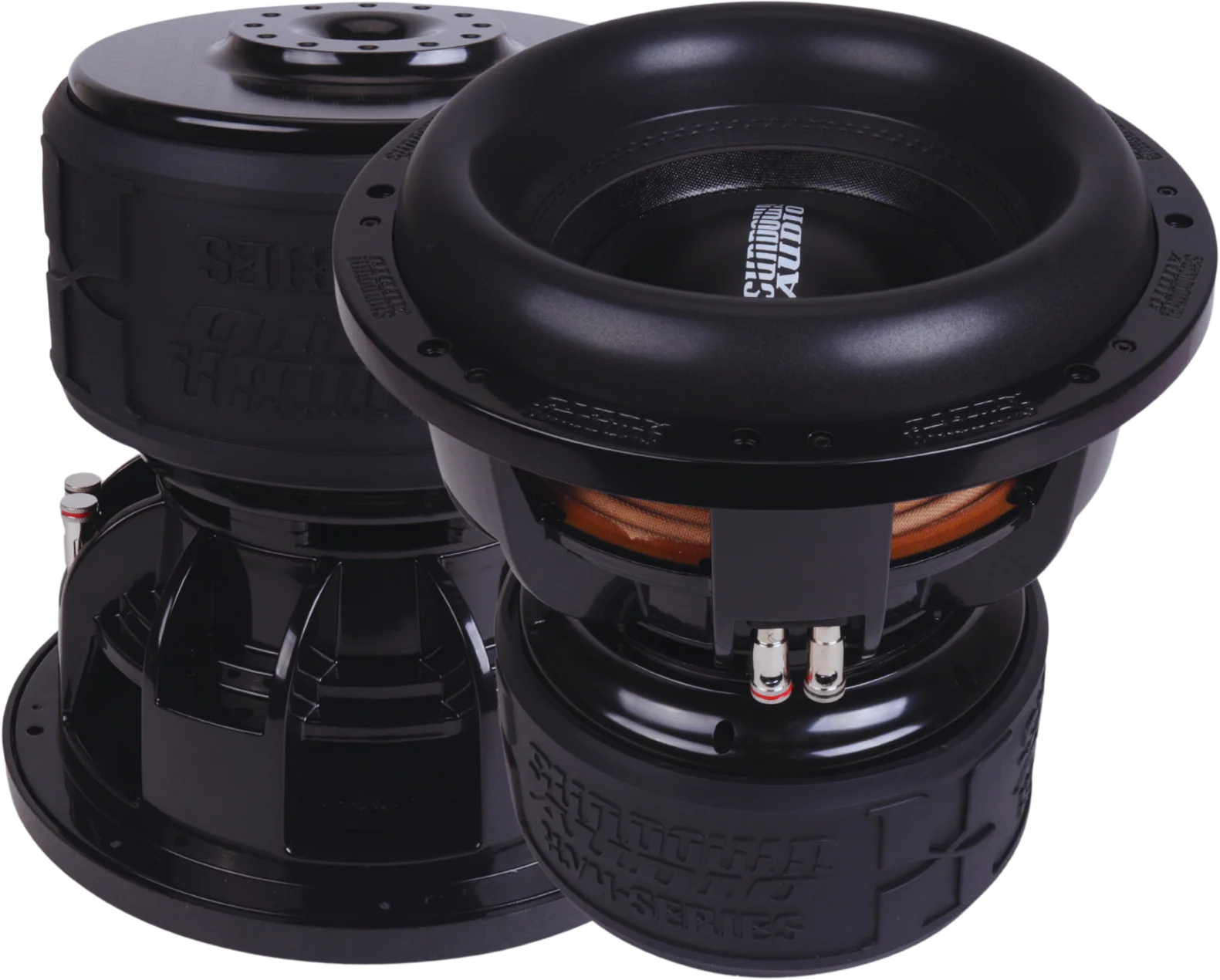

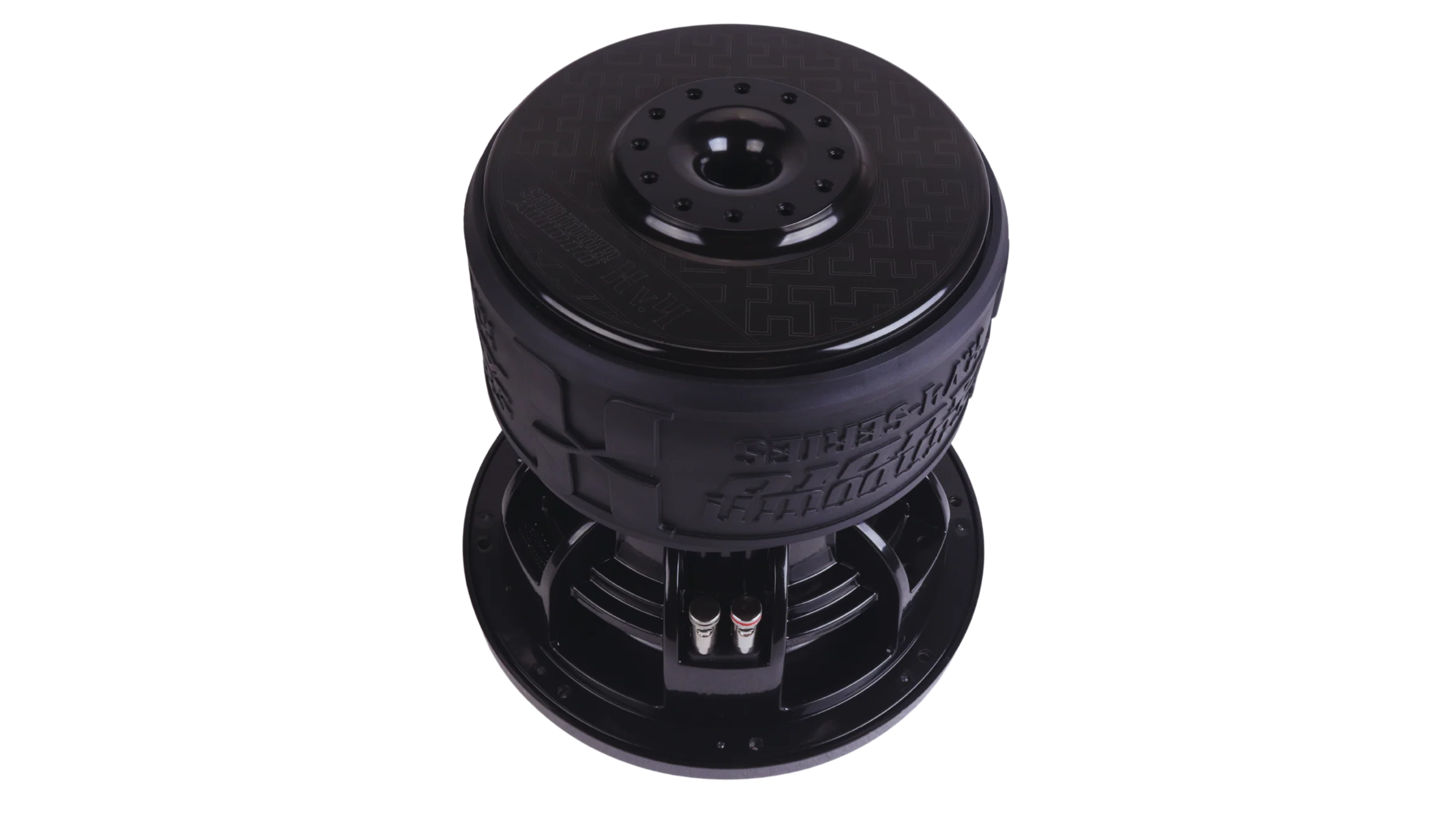

- The Sundown Audio Xv4 12" Subwoofer is built for those who demand real power and precision in their sound system. Designed with premium Xv4 coils, this subwoofer delivers a massive 2750W RMS and 5500W peak power while maintaining outstanding clarity and control.
- With a durable, heavy-duty motor and optimized cooling system, the Xv4 ensures consistent performance even during extended play. Whether you’re upgrading your car audio or building a competition-level system, this subwoofer delivers thunderous low frequencies that stay tight and accurate.
- The precision-engineered cone and suspension system provide minimal distortion and maximum output. Pair it with a well-tuned ported enclosure for deep, room-shaking bass that brings your music to life.
- Built to handle extreme sound pressure, the Xv4 series continues Sundown Audio’s legacy of reliability, innovation, and unmatched performance.
-
12-inch subwoofer with Xv4 voice coils
-
RMS Power: 2750W, Peak Power: 5500W
-
Available in Dual 1Ω and Dual 2Ω versions
-
High-efficiency motor structure with strong BL factor
-
Optimized for ported enclosures (2.5 cu. ft @ 32Hz)
-
Xmax: 30mm for deep excursion and accurate bass
-
Reinforced cone for durability under extreme pressure
-
Designed for audiophiles and SPL enthusiasts
Specification XV4 12D1 XV4 12D2 RMS Power 2750W 2750W Peak Power 5500W 5500W Displacement 0.23 cu.ft 0.23 cu.ft Mounting Depth 11.75" 11.75" Outside Diameter 12.81" 12.81" Cutout Diameter 11.09" 11.09" Motor Diameter 9.25" 9.25" Sealed Enclosure Not Recommended Not Recommended Ported Enclosure 2.5 cu.ft @ 32Hz 2.5 cu.ft @ 32Hz Recommended Port Area 40 sq in 40 sq in 4th Order Sealed Side 1.0 cu.ft 1.0 cu.ft 4th Order Ported Side 3.0 cu.ft 3.0 cu.ft 4th Order Port Area 60 sq in 60 sq in 4th Order Port Length 8" 8" Xmax 30mm 30mm Sd (Cone Area) 44.11 44.11 Re (Ω) 2.05 3.25 Fs (Hz) 39.39 36.06 Vas (L) 14.13 15.75 Qes 0.58 0.54 Qms 4.95 4.82 Qts 0.50 0.49 Le (mH) 1.33 2.6 BL (NA) 24.4 22.25 Mms (g) 343.14 367.13 Cms 47.56 53.04 Sensitivity (dB) 83.47 83.06 T/S Specs RMS Power (D2)RMS Power (D1)Peak Power (D1)Peak Power (D2)RE D1 (Ohms)RE D2 (Ohms)FS D1 (Hz)FS D2 (Hz)VAS D1 (L)VAS D2 (L)Qes D1Qes D2Qms D1Qms D2Qts D1Qts D2Le D1 (mH)Le D2 (mH)BL D1 (NA)BL D2 (NA)Mms D1 (Grams)Mms D2 (Grams)Cms D1 (uM/N)Cms D2 (uM/N)Sens D1 (dB @ 1w/1m)Sens D2 (dB @ 1w/1m)Xmax D1Xmax D2Subwoofer Measurements Displacement (Inches)Depth (Inches)Cutout (Inches)Motor Diameter (Inches)Ported Enclosure Specs Ported Enclosure SizeRecommended Port AreaRecommended Port Tuning4th Order Enclosure Specs 4th Order Sealed Side4th Order Ported Side4th Order Port Area4th Order Port Length
