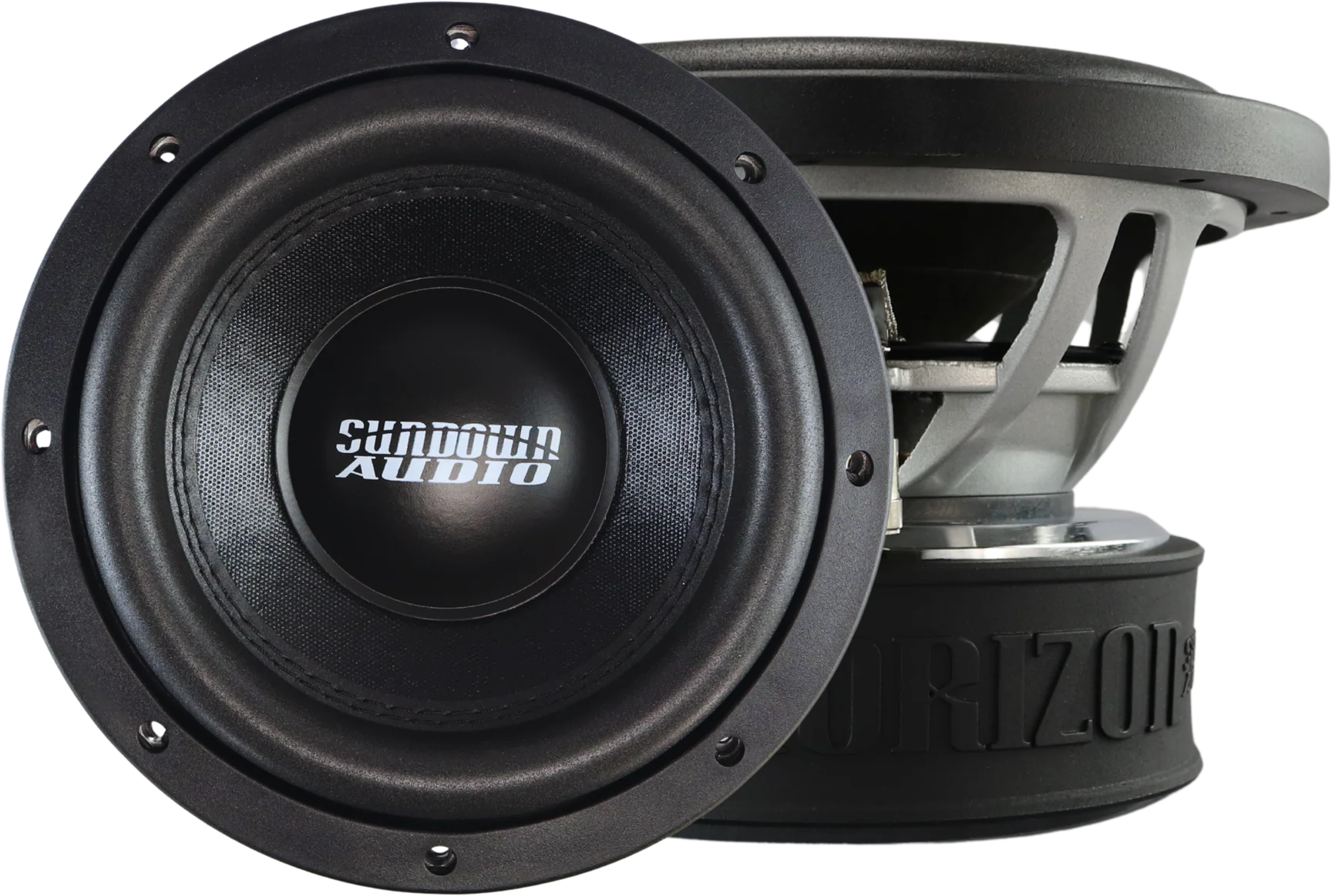

Sundown Audio - HZ 8”

HZ Series Key Features:

• RMS Power:
• 8" – 500W RMS / 2" Voice Coil
• Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire
• XMAX: Class-leading 14mm Xmax
• Frame: Heavy-duty cast aluminum basket
• Cooling: Vented motor gap and pole piece for optimized heat dissipation
• Durability: Stitched Mini-XL tinsel leads and bolted spider pack
• Suspension: High-roll surround with progressive spider for smooth, controlled excursion
• Recommended Enclosure: Ported for maximum efficiency and output

  RE (Ohms)	5.8
  FS (Hz)	41.323
  VAS (L)	7.529
  Qes	0.549
  Qms	2.997
  Qts	0.464
  BL (NA)	17.618
  Mms (Grams)	113.099
  Cms (mm/N)	131.157
  Sens (dB @ 1w/1m)	81.7
  Xmax	14mm
  T/S SPECS	HZ 8"

  • Ported Enclosure
    • Size: 0.65 cuft net
    • Port Area: 9 sq in
    • Port Tuning: 35hz
  • Sealed Enclosure
    • Size: 0.3 cuft net
  • Displacement: 0.07 cuft.
  • Depth:  5.28"
  • Outside Diameter: 8.6"
  • Cutout: 7.250"

  Physical Dimensions
