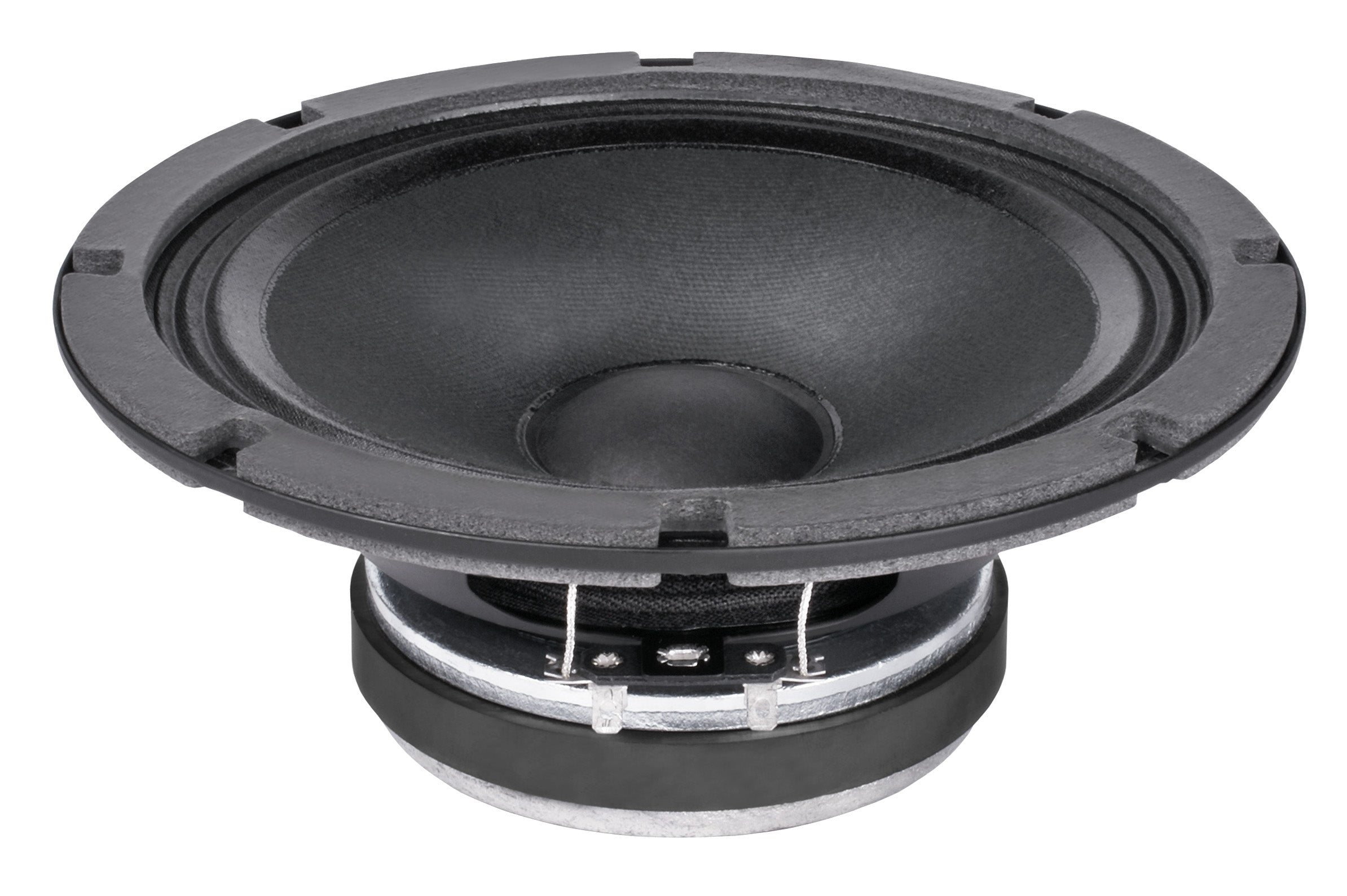

Faital PRO 8FE200 8” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 8" / 200mm |
| Impedance | 4/8 ohms |
| RMS | 130 RMS |
| Watts | 260 Watts |
| Frequency Response | 60Hz - 5.0kHz |
| Sensitivity (1W/1m) | 95dB SPL |
| Voice Coil Diameter | 1.46" / 37mm |
| Voice Coil Length | 12 mm |
| Air Gap Height | 8 mm |
| X Damage | 10.4 mm |
| BL Factor | 8.2 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.24" / 209.2mm |
| Bolt Circle Diameter | 7.75" / 196.9mm |
| Baffle Cutout Diameter-Front Mount | 7.01" / 178mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 3.5" / 89mm |
| Flange & gasket Thickness | 0.31" / 8mm |
| Net Weight | 4.7 lb. / 2.2 kg. |
| Shipping Weight | 6.06 lb. / 3 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Kapton |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 80 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 0.44 mH |
| Mechanical Q (Qms) | 13 |
| Electrical Factor (Qes) | .66 |
| Total Q (Qts) | .63 |
| Comp. Equivelant Vol. (Vas) | 0.48 ft3 / 13.6 Liters |
| Voice Coil Overhang (Xmax) | 4.67 mm |
| Surface Area of Cone (Sd)m2 | 0.0191m2 |
| Reference Efficiency | 1.3% |
| Diaphragm Mass (Mms) | 15 Grams |
| Mechanical Compliance (Cms) | .36 mm/N |
| Mechanical Resistance (Rms) | .5 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
