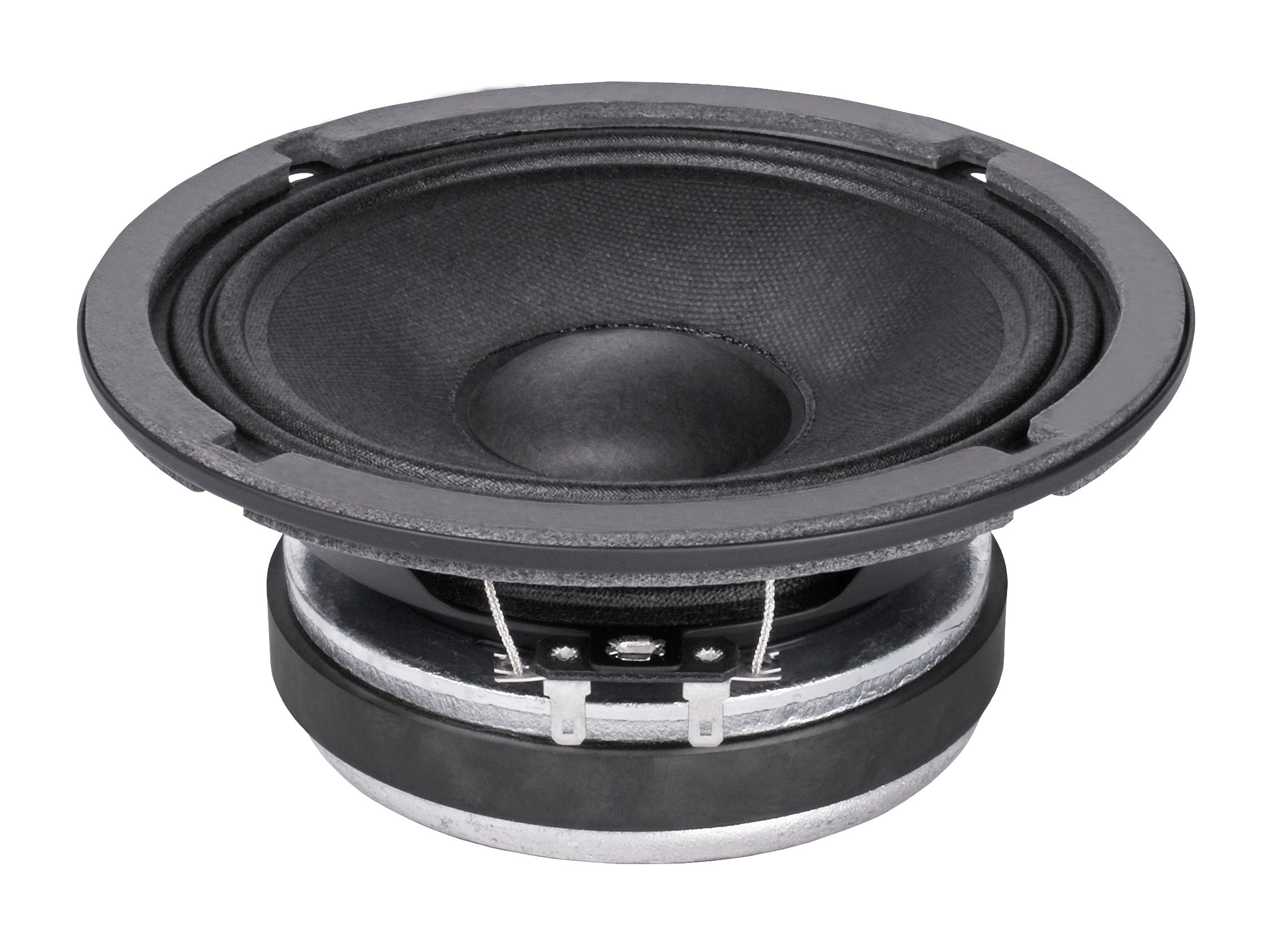

Faital PRO 6FE200 6,5” - Speakers zijn p.st. |
|
| Nominal Basket Diameter | 6.5" / 160mm |
| Impedance | 4/8 ohms |
| RMS | 130 RMS |
| Watts | 260 Watts |
| Frequency Response | 85Hz - 6.0kHz |
| Sensitivity (1W/1m) | 95dB SPL |
| Voice Coil Diameter | 1.46" / 37mm |
| Voice Coil Length | 12 mm |
| Air Gap Height | 8.0 mm |
| X Damage | 10.4 mm |
| BL Factor | 8.2 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.59" / 167.4mm |
| Bolt Circle Diameter | 6.06" / 154mm |
| Baffle Cutout Diameter-Front Mount | 5.67" / 144mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3" / 77mm |
| Flange & gasket Thickness | 0.31" / 8.0mm |
| Net Weight | 4.41 lb. / 2 kg. |
| Shipping Weight | 5.73 lb. / 2.6 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Kapton |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 120 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 0.4 mH |
| Mechanical Q (Qms) | 6.2 |
| Electrical Factor (Qes) | .75 |
| Total Q (Qts) | .67 |
| Comp. Equivelant Vol. (Vas) | 0.11 ft3 / 3 Liters |
| Voice Coil Overhang (Xmax) | 4.67 mm |
| Surface Area of Cone (Sd)m2 | 0.0118m2 |
| Reference Efficiency | .67% |
| Diaphragm Mass (Mms) | 11 Grams |
| Mechanical Compliance (Cms) | .15 mm/N |
| Mechanical Resistance (Rms) | 1.4 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
