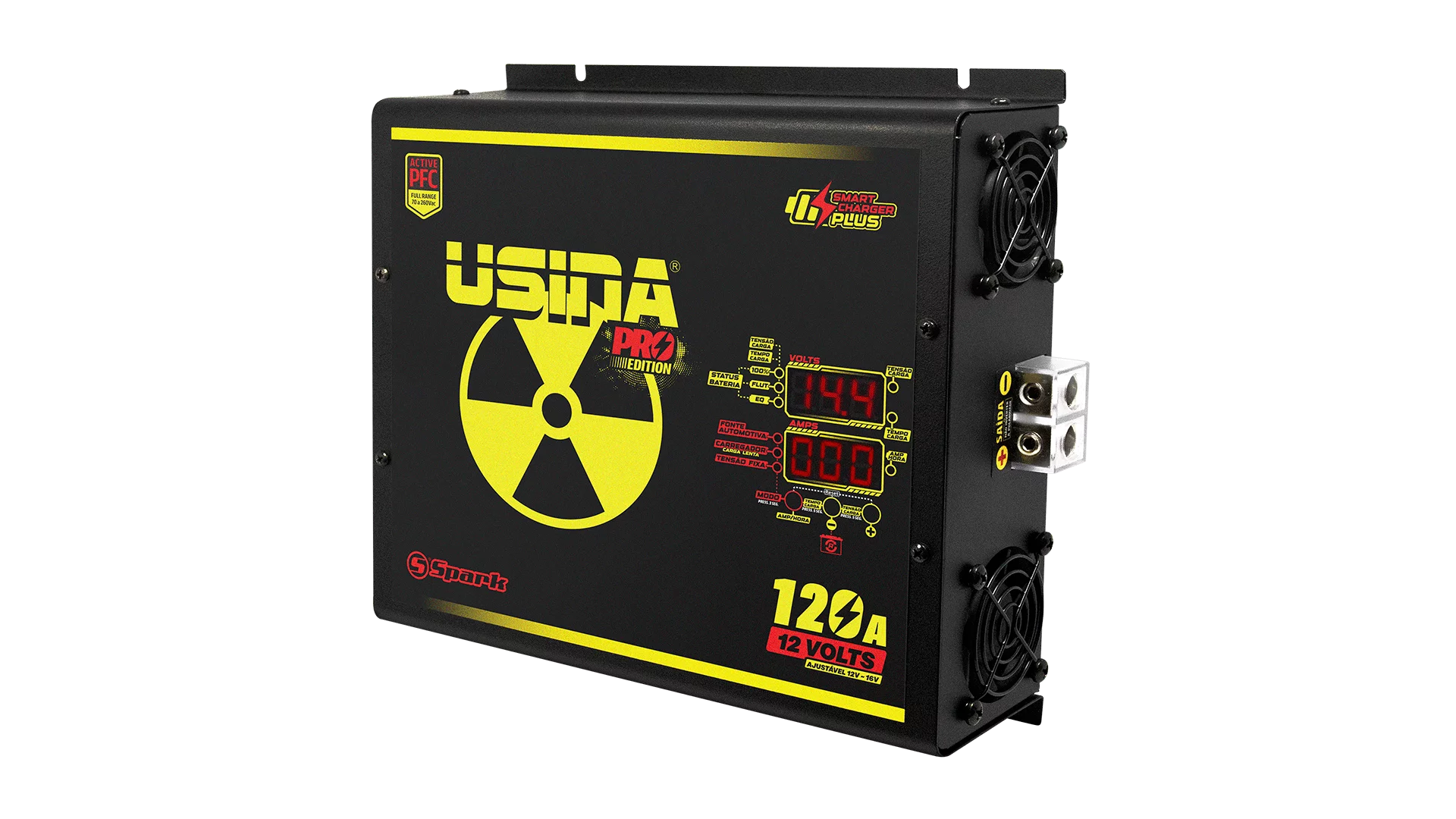

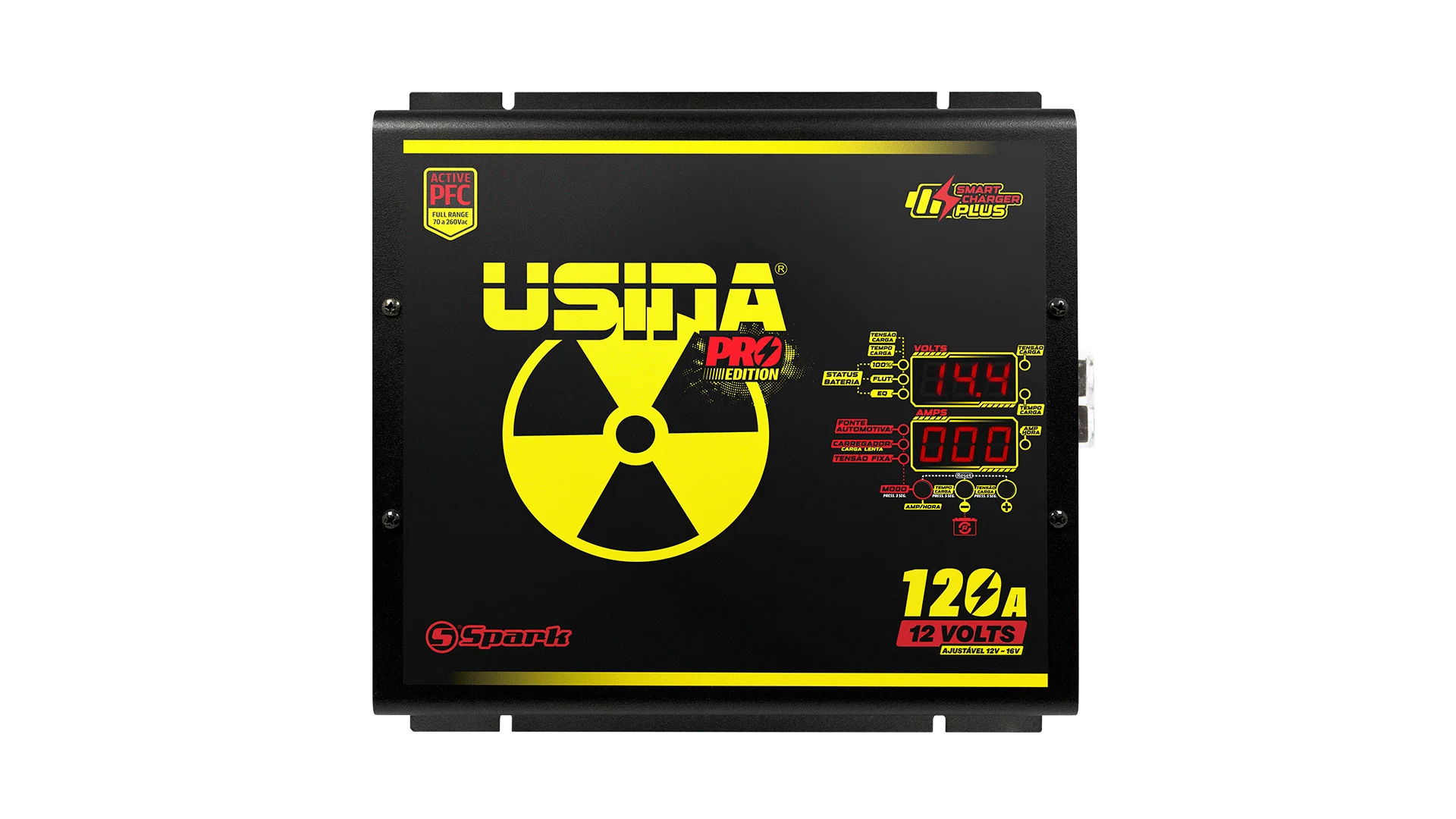

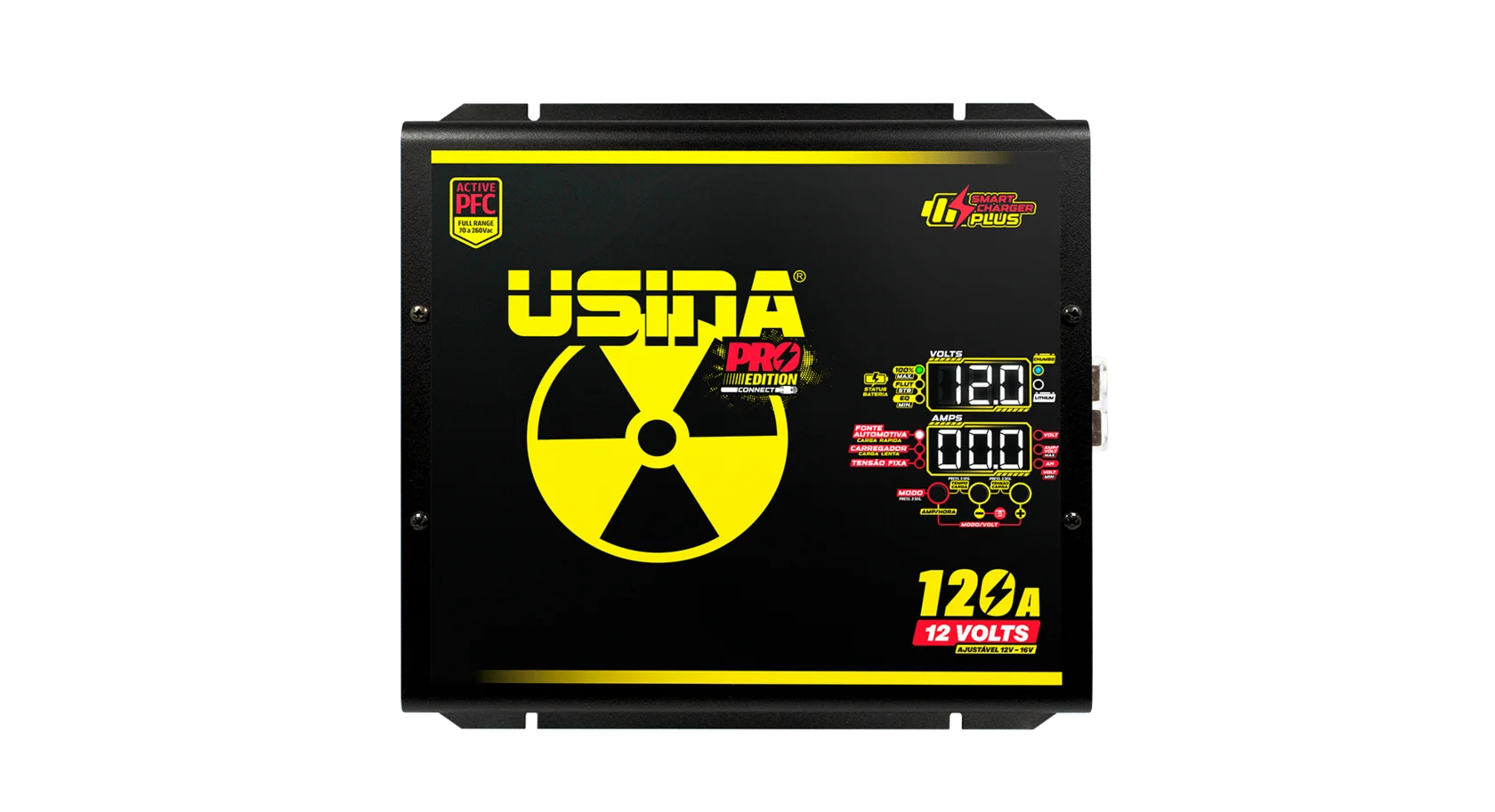

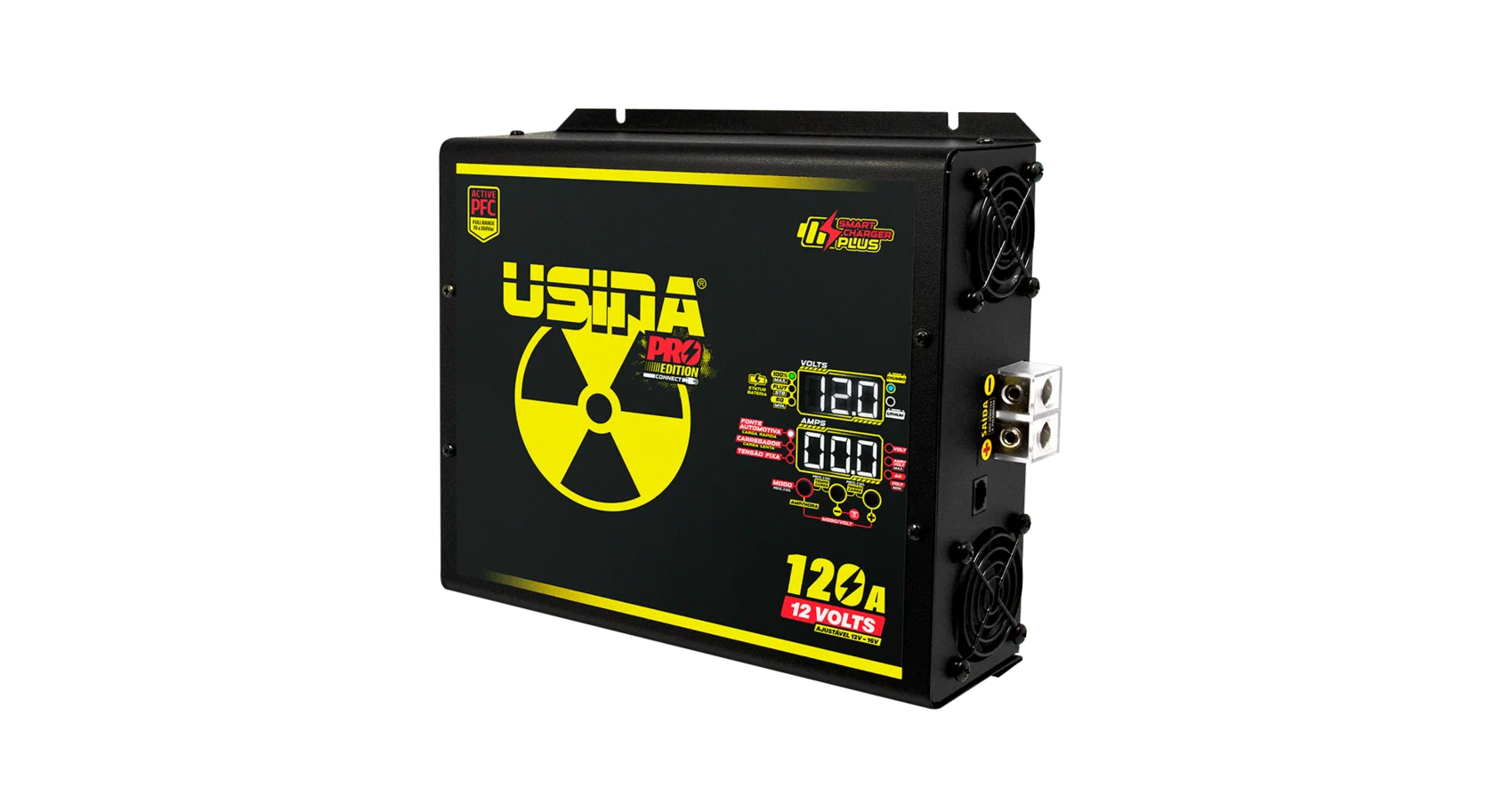

The USINA PRO font was developed for those who want a font for professional use, it has features never used in automotive fonts, including PFC ATIVO. (For professional use only, comes with Brazilian plug which you have to change to an EU plug yourself!)
Works with: Yinlong LTO, LiFePO4 and AGM
INPUT VOLTAGE: 70 @ 260Vac
INPUT CURRENT(MAX): 20A
INPUT POWER: 1800Watts (maximum)**
POWER FACTOR: 0.95 @ 0.99
OUTPUT VOLTAGE: 12 @ 16Vdc (+- 1%)
OUTPUT CURRENT: 120A @ 13Vdc (+- 5%)*
OUTPUT POWER: 1560 Watts (maximum)**
EFFICIENCY: 82% @ 85%
INPUT CABLE: 3x1.5mm² - 2P+T
INPUT PROTECTION: 25A Circuit Breaker
OUTPUT CABLE: 25mm²
RECOMMENDED EXTENSION: 2.5mm² (max 30 meters)
APPROXIMATE WEIGHT: 3,250Kg
RECOMMENDED GENERATOR: 3Kva
APPROXIMATE DIMENSIONS (LxWxH): 300mm x 253mm x 80mm***
*Current and power measured on resistive load
**Output power may vary according to the network voltage and conditions of use
***The measurements referring to the dimensions of the sources have a variation of approximately 2mm
