Beschrijving

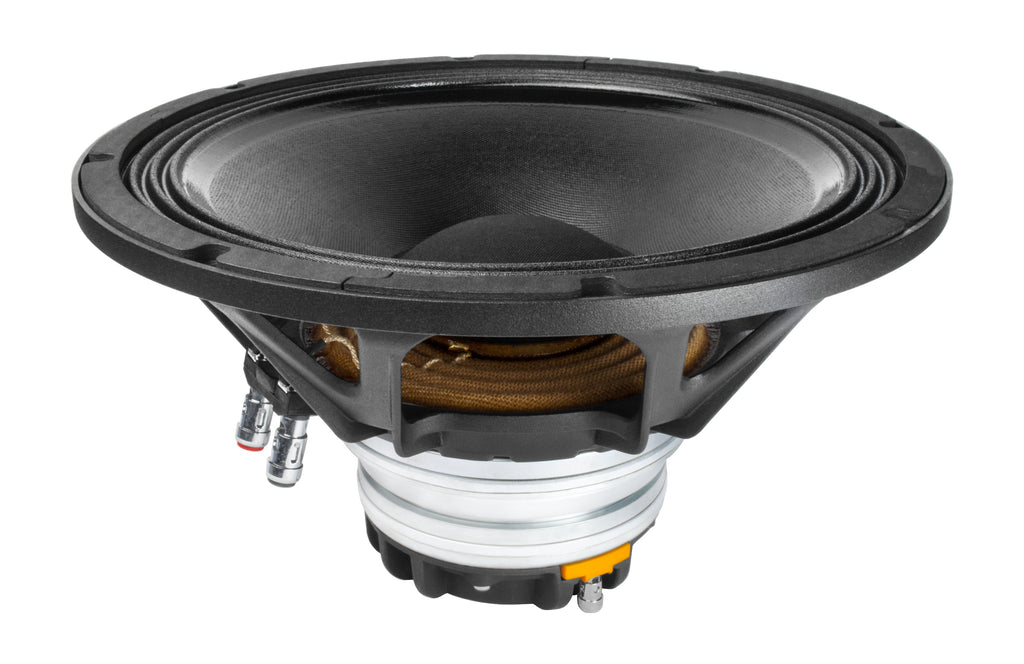

- FAITAL PRO 12HX500 POWERFUL 12" COAXIAL SPEAKER CAN HANDLE 400 WATTS RMS & 800 WATTS PROGRAM POWER
- FEATURES A LIGHTWEIGHT NEODYMIUM 1.4" EXIT HF DRIVER & POWERFUL 12" SPEAKER THAT WEIGHS ONLY 12.1LBS.
- BOTH LF & HF DRIVER SHARE 0NE NEODYMIUM MAGNET FOR PROPER TIME ALIGNMENT
- HAS A LARGE SMOOTH TIGHT SOUND WITH A VERY GOOD DETAILED SOUND
- HIGH 9.25MM XMAX FOR A CLEAN SOUND EVEN WHEN PUSHED HARD
- OVERALL FLAT FREQUENCY RESPONSE WITH LOW DISTORTION
- WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
- WORKS GREAT FOR COMPACT 2-WAY SPEAKER SYSTEMS INCLUDING HOME HI-FI, PA SPEAKERS, ETC.
|
Faital PRO 12HX500 12” - Speakers zijn p.st. |
|
|
Low Frequency |
|
| Nominal Basket Diameter | 12" / 320mm |
| Impedance | 8 ohms |
| RMS | 400 RMS |
| Watts | 800 Watts |
| Frequency Response | 50Hz - 5.0kHz |
| Sensitivity (1W/1m) | 95dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Winding Depth | .85" / 21.5 mm |
| Magnetic Gap Depth | .35" / 9.0 mm |
| X Damage | 18.5 mm |
| Flux Density | 1.2 T |
| BL Factor | 16.2 N/A |
|
High Frequency |
|
| RMS | 90 RMS |
| Watts | 180 Watts |
| Frequency Response | 500Hz - 20kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.9" / 74mm |
| Winding Depth | .14" / 3.5 mm |
| Magnetic Gap Depth | .15" / 3.7 mm |
| Flux Density | 2 T |
| Minimum Crossover Frequency | 900Hz |
| Dispersion Angle | 100° |
|
Mounting Information |
|
| Overall Diameter | 12.44" / 316mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 6.89" / 175mm |
| Flange & Gasket Thickness | 0.47" / 12mm |
| Net Weight | 12.1lb. / 5.5 kg. |
| Shipping Weight | 13.7 lb. / 6.2 kg. |
|
Materials |
|
|
Low Frequency |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Demodulation | Aluminum Ring |
| Magnet | Neodymium |
|
High Frequency |
|
| Voice Coil | Aluminum |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 54 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 0.57 mH |
| Mechanical Q (Qms) | 6.94 |
| Electrical Factor (Qes) | .42 |
| Total Q (Qts) | .39 |
| Comp. Equivelant Vol. (Vas) | 2.2 ft3 / 62.3 Liters |
| Voice Coil Overhang (Xmax) | 9.25 mm |
| Surface Area of Cone (Sd)m2 | 0.0540m2 |
| Reference Efficiency | 2.32% |
| Diaphragm Mass (Mms) | 56.7 Grams |
| Mechanical Compliance (Cms) | .15 mm/N |
| Mechanical Resistance (Rms) | 2.8 Kg/s |
| EBP | 129 |
|

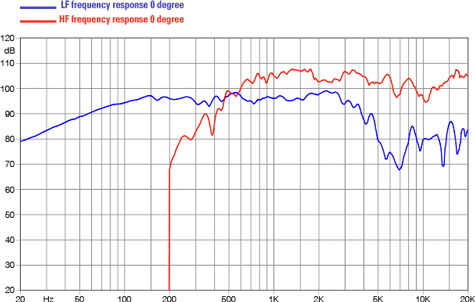

Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|

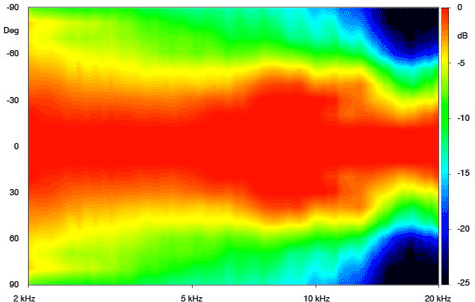

Horizontal Beamwidth |
|
|
|
|

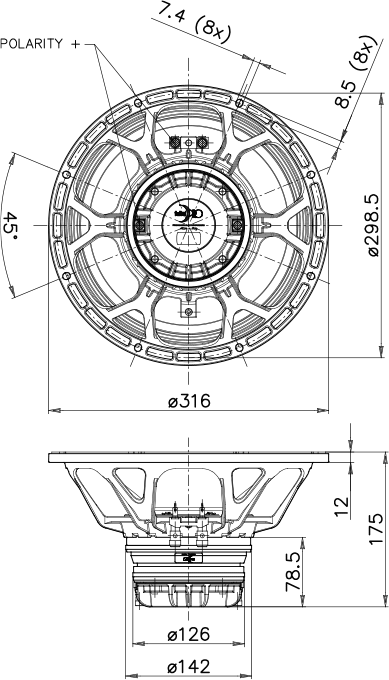

| Mounting Dimensions | |
 |
|
